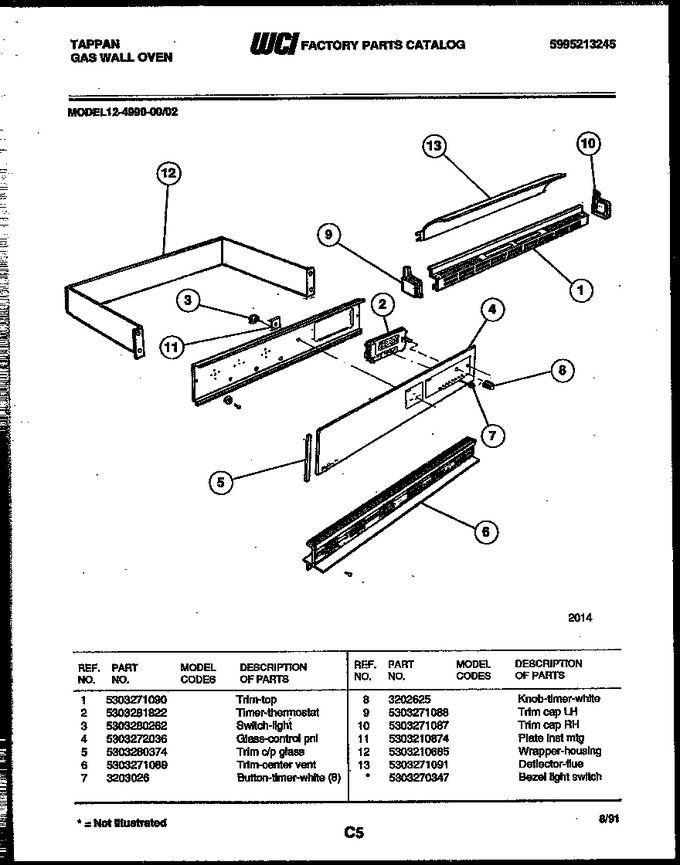

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303271090 | Trim-top |
|
- | |||||
| 2 | 5303281822 | Timer-thermostat |
|
- | |||||
| 3 | 5303280262 | Switch-light |
|
- | |||||
| 4 | 5303272036 | Glass-control Pnl |
|
- | |||||
| 5 | 5303280374 | Trim C/p Glass |
|
- | |||||
| 6 | 5303271089 | Trim-center Vent |
|
- | |||||
| 7 | 3203026 | Button-timer-white (8) |
|
- | |||||
| 8 | 3202625 | Knob-timer White |
|
- | |||||
| 9 | 5303271088 | Trim Cap Lh |
|
- | |||||
| 10 | 5303271087 | Trim Cap Rh |
|
- | |||||
| 11 | 5303210874 | Plate Inst. Mtg. |
|
- | |||||
| 12 | 5303210685 | Wrapper - Housing |
|
- | |||||
| 13 | 5303271091 | Deflector-flue |
|
- | |||||
| *59318 | 5303270347 | Bezel Light Switch |
|
- |
