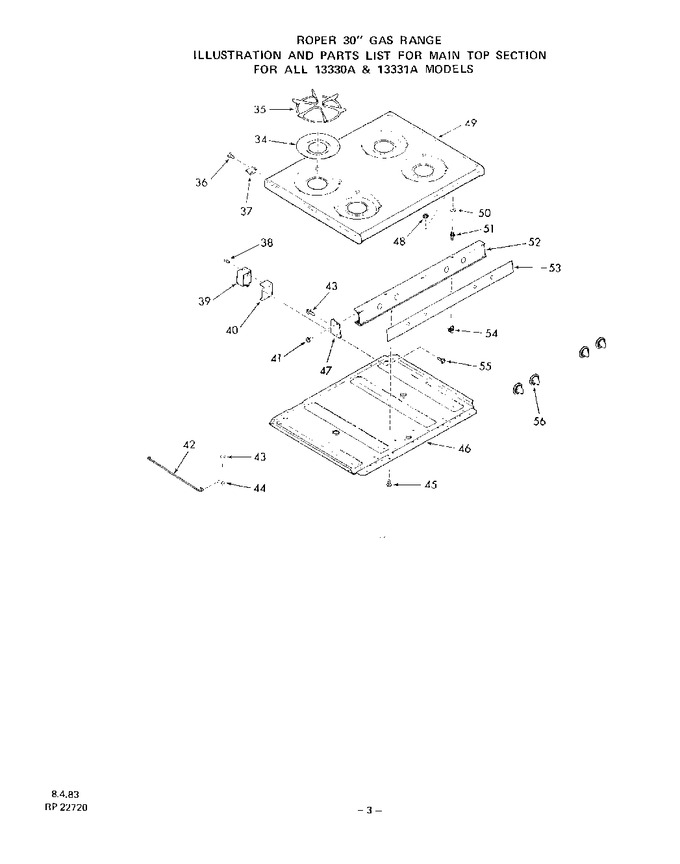

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
34	322888		Spill Bowl (4 Required)		Appelez-nous	-
35	316786		Top Grate (4 Required)		Appelez-nous	-
36	321337		Screw 10-32x7/16``		Appelez-nous	-
37	301672		Retainer-main Top (lt. Or Rt.)		Appelez-nous	-
38	108788		Screw 6-32 X 1/2``		Appelez-nous	-
39	320990		Module-spark Igniter		Appelez-nous	-
40	315369		Bracket - Spark Igniter Module		Appelez-nous	-
41	295268		Screw 6-32x3/8``		Appelez-nous	-
42	315379		Support-main Top		Appelez-nous	-
43	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
44	285945		Clip		Appelez-nous	-
45	239113		Screw 10-32x3/8``		Appelez-nous	-
46	320408		Burner Box Bottom		Appelez-nous	-
47	318258		Left		Appelez-nous	-
47	318259		Right		Appelez-nous	-
48	239764		Hex Nut 8-32		Appelez-nous	-
49	316813		White		Appelez-nous	-
49	316817		Coffee		Appelez-nous	-
49	316816		Avocado		Appelez-nous	-
49	316815		Golden Wheat		Appelez-nous	-
49	316814		Almond		Appelez-nous	-
50	99279		Washer		Appelez-nous	-
51	299784		Strike (rt. Or Lt.)		Appelez-nous	-
52	322807		Manifold Panel		Appelez-nous	-
53	323806		Trim-manifold Panel		Appelez-nous	-
54	24667		Catch-main Top Strike (rt. Or Lt.)		Appelez-nous	-
55	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
56	322502		Knob-gas Valve (4 Required)		Appelez-nous	-
