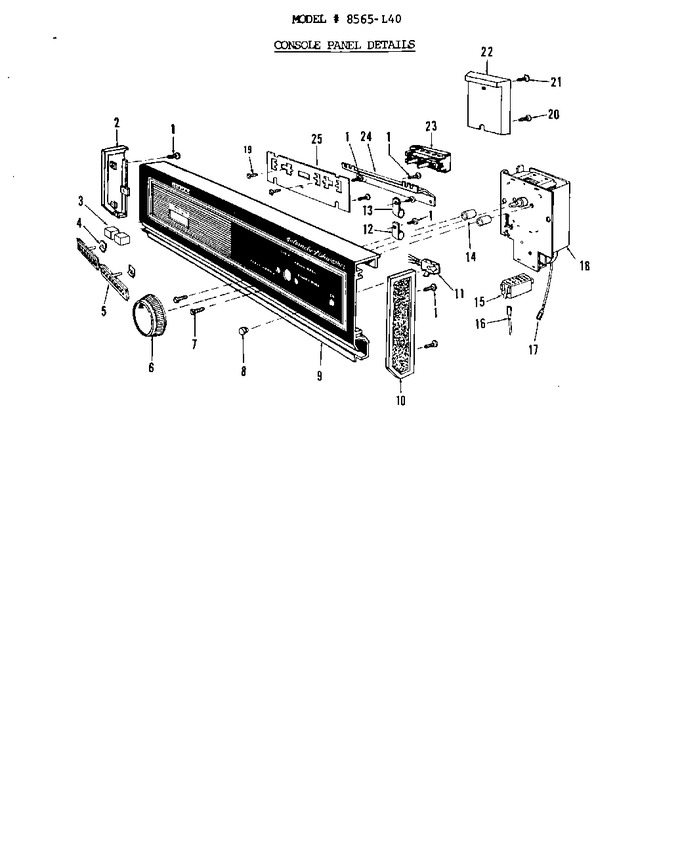

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	806943		Screw 8x7/16 Lg. C.r. Pan Hd. Cad. Pl.		Appelez-nous	-
2	808694		End Cap - L.g. (black)		Appelez-nous	-
3	807273		Pushbutton		Appelez-nous	-
4	808475		Speednut		Appelez-nous	-
5	808477		Vent Grille		Appelez-nous	-
6	808812		Timer Knob		Appelez-nous	-
7	808422		Screw 10-32x1 17/64 Lg. C.r. Truss Hd. Zinc Pl.		Appelez-nous	-
8	805664		Lens-red		Appelez-nous	-
9	808941		Console Panel (includes Key Nos. 4 & 5)		Appelez-nous	-
10	808693		End Cap-r.h. (black)		Appelez-nous	-
11	808610		Light Assembly		Appelez-nous	-
12	808442		Clamp		Appelez-nous	-
13	W10833902		Clamp   (Replaces: 805584)				$ 9.89
14	808424		Spacer		Appelez-nous	-
15	808231		Timer Housing (black)		Appelez-nous	-
16	808333		Housing Terminal		Appelez-nous	-
17	808334		Terminal - Timer		Appelez-nous	-
18	808686		Timer		Appelez-nous	-
19	807141		Screw 6-30 X 3/8 Lg. Pan Hd Cad. Pl.		Appelez-nous	-
20	W11233072		Screw 8x3/8 Lg. C.r. Binding Hd. Cad. Pl.   (Replaces: 803416)			Immediately	$ 12.62
21	806894		Screw 8 X 5/16 Lg. C.r. Truss Hd. St. St.		Appelez-nous	-
22	807425		Splash Pan		Appelez-nous	-
23	807281		Switch		Appelez-nous	-
24	808398		Shield - Vent Slot		Appelez-nous	-
25	808814		Switch Mounting Bracket		Appelez-nous	-
