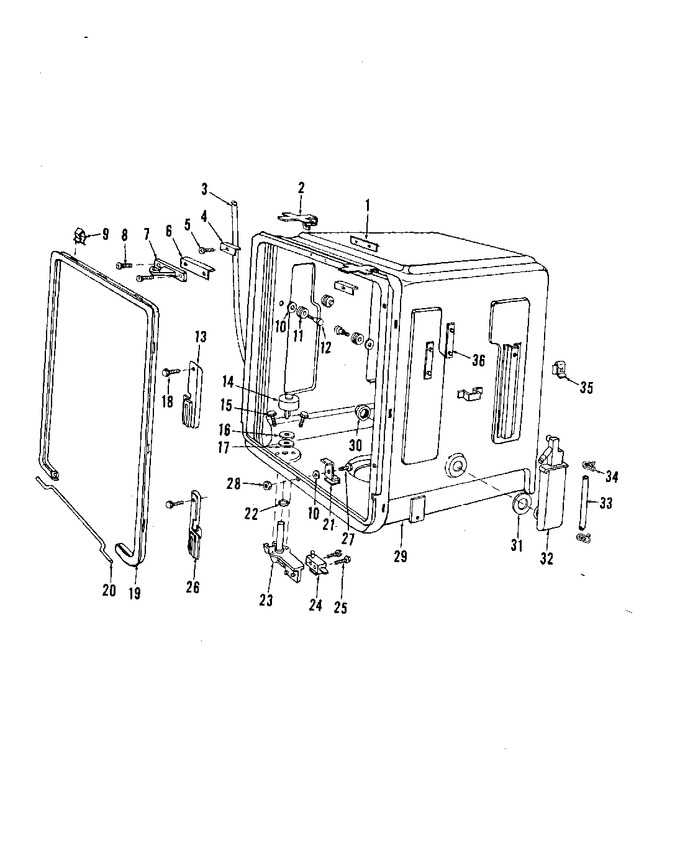

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	808868		Latch Tapping Plate		Appelez-nous	-
2	808289		Attach Clip		Appelez-nous	-
3	809112		Drain Hose, Corrugated		Appelez-nous	-
4	806976		Screw 8x7/16 Lg. C.r. Truss Hd. St. St.		Appelez-nous	-
5	807073		Shim		Appelez-nous	-
6	807015		Door Strike		Appelez-nous	-
7	806890		Screw 10 X 3/4 Lg. C.r. Flat Hd. Chrome Pl.		Appelez-nous	-
8	805763		Tub Gasket Clip Kit (includes Key No. 21)		Appelez-nous	-
9	808366		Clip Shim		Appelez-nous	-
10	809044		Washer		Appelez-nous	-
11	807180		Tube Roller		Appelez-nous	-
12	808564		Screw & Washer Kit (includes Key No. 10)		Appelez-nous	-
13	807470		Counterbalance Arm Guide L.h.		Appelez-nous	-
14	804630		Float		Appelez-nous	-
15	807268		Screw 10x1 Lg. Hex Washer Hd. St. St.		Appelez-nous	-
16	808064		Plate - Float Tube		Appelez-nous	-
17	808063		Gasket - Float Tube		Appelez-nous	-
18	806539		Screw 10 - 24 X 7/8 Lg. Acorn Hex Washer Hd. Chrome Pl.		Appelez-nous	-
19	809034		Gasket & Wire Assembly (includes Key Nos. 8 & 20)		Appelez-nous	-
20	808344		Gasket Junction Wire		Appelez-nous	-
21	COMM PART		Dam Clip   (Replaces: 808115)		Appelez-nous	-
22	807759		``o`` Ring		Appelez-nous	-
23	807677		Float Switch Kit (includes Key Nos. 16,17,22,24, & 25)		Appelez-nous	-
24	807680		Float Switch		Appelez-nous	-
25	804594		Screw 4-40x5/8`` Lg. Hex Hd. Cad. Pl.		Appelez-nous	-
26	806291		Cage Nut		Appelez-nous	-
27	807038		Tapping Plate		Appelez-nous	-
28	806901		Screw 8 X 5/8 Lg. C.r. Hex Washer Hd. St. St.		Appelez-nous	-
29	806797		Blower Housing Gasket		Appelez-nous	-
30	808818		Screw 8 X 1/2 Lg. C.r. Flat Hd. Cad. Pl.		Appelez-nous	-
31	808707		Water Inlet Nozzle		Appelez-nous	-
32	808706		Vent Stack		Appelez-nous	-
33	807891		Water Inlet Tubing (includes Key No. 34)		Appelez-nous	-
34	807813		Clamp		Appelez-nous	-
35	808705		Tapping Plate		Appelez-nous	-
36	803346		Nut		Appelez-nous	-
37	807471		Counterbalance Arm Guide R.h.		Appelez-nous	-
38	WP250830		Screw 8-32 X 1/2 Lg. C.r. Truss Hd. St. St.   (Replaces: 803319)				$ 7.16
39	809141		Tub & Gasket Assembly		Appelez-nous	-
40	809113		Tub Insulation (not Shown)		Appelez-nous	-
