Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 806291 Cage Nut Appelez-nous -
2 808725 Tub & Gasket Assembly Appelez-nous -
3 808289 Attach Clip Appelez-nous -
4 806089 Drain Hose Appelez-nous -
5 807036 Screw No.10-24x5/8``lg. Acorn Hex Hd. Chrome Pl. Appelez-nous -
6 807073 Shim - Strike Appelez-nous -
7 807015 Strike Appelez-nous -
8 806890 Screw No.10-24x3/8``lg. C.r. Flat Hd. Chrome Pl. Appelez-nous -
9 807470 Counterbalance Arm Guide L.h. Appelez-nous -
10 806539 Screw No.10-24x7/8``lg. Acorn Hex Hd. Chrome Pl. Appelez-nous -
11 5303912631 Gasket & Wire Assembly (includes Item 12)   (Replaces: 808345) Appelez-nous -
12 808344 Wire - Gasket Junction Appelez-nous -
13 807471 Counterbalance Arm Guide R.h. Appelez-nous -
14 807677 Float Assembly Appelez-nous -
15 807680 Switch Appelez-nous -
16 804594 Screw No.4x5/8``lg. Sl. Hex Hd. Cad. Pl. Appelez-nous -
17 807759 ``o`` Ring Appelez-nous -
18 803346 Nut Appelez-nous -
19 808063 Gasket - Float Tube Appelez-nous -
20 808064 Plate - Float Tube Appelez-nous -
21 807268 Screw No.10-32a X 1`` Lg. Appelez-nous -
22 804630 Float Appelez-nous -
23 805763 Gasket Clip Appelez-nous -
24 807038 Tapping Plate Appelez-nous -
25 805776 Sealing Washer Appelez-nous -
26 COMM PART Clip - Gasket   (Replaces: 808115) Appelez-nous -
27 WP250830 Screw No.8-32x1/2``lg. C.r. Truss Hd. St. St.   (Replaces: 803319) Special Order $ 7.16

28 806901 Screw No.8x5/8``lg. C.r. Hex Hd. St. St. Appelez-nous -
29 803367 Washer Appelez-nous -
30 807180 Roller Appelez-nous -
31 807181 Shoulder Screw Appelez-nous -
32 806797 Gasket Appelez-nous -
33 808705 Tapping Plate Appelez-nous -
34 808706 Vent Stack Appelez-nous -
35 807891 Tubing - Inlet Appelez-nous -
36 807813 Clamp Appelez-nous -
37 808707 Inlet Nozzle Appelez-nous -
38 808818 Screw No.8ax1/2``lg. C.r. Flat Hd. Cad. Pl. Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

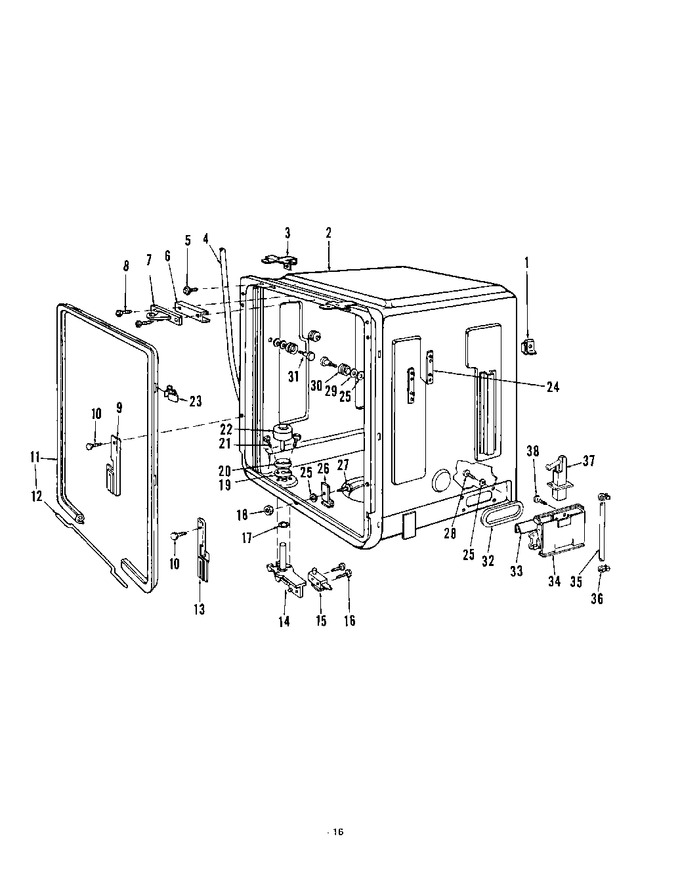

Diagram for 8575L00
