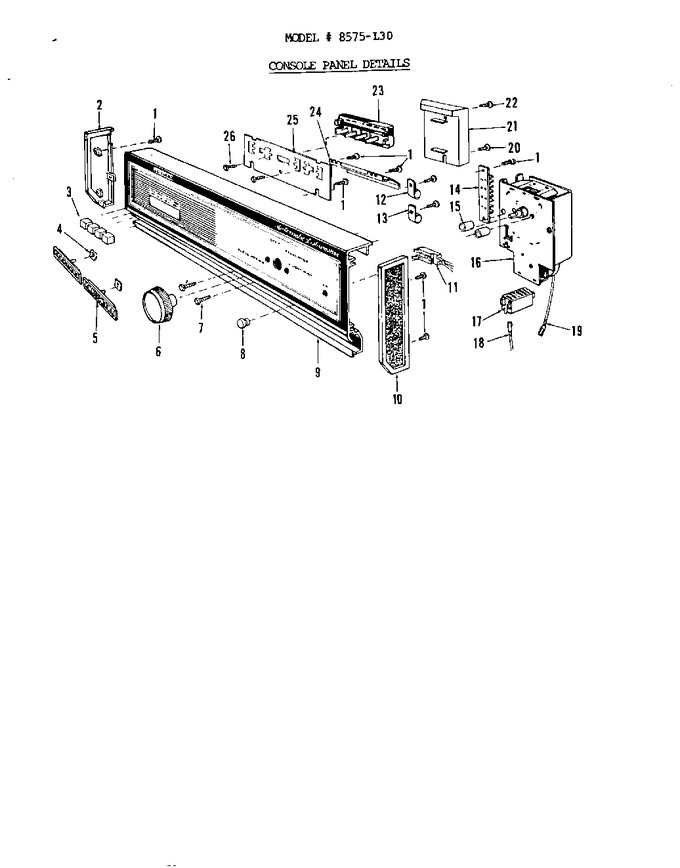

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	806943		Screw 8x7/16 Lg. C.r. Pan Hd. Cad. Pl.		Appelez-nous	-
2	808811		End Cap - L.h. (chrome Plastic)		Appelez-nous	-
3	807273		Pushbutton		Appelez-nous	-
4	808475		Speednut		Appelez-nous	-
5	808477		Vent Grille		Appelez-nous	-
6	808812		Timer Knob		Appelez-nous	-
7	808422		Screw 10-32x1 17/64 Lg. C.r. Truss Hd. Zinc Pl.		Appelez-nous	-
8	805664		Lens-red		Appelez-nous	-
9	808942		Console Panel (includes Key Nos. 4 & 5)		Appelez-nous	-
10	808810		End Cap - R. H. (chrome Plastic)		Appelez-nous	-
11	808711		Light Assembly		Appelez-nous	-
12	W10833902		Clamp   (Replaces: 805584)				$ 9.89
14	808483		Terminal Board Assembly		Appelez-nous	-
15	808424		Spacer		Appelez-nous	-
16	5300808671		Timer   (Replaces: 808671)		Appelez-nous	-
17	808231		Timer Housing (black)		Appelez-nous	-
18	808333		Housing Terminal		Appelez-nous	-
19	808334		Terminal - Timer		Appelez-nous	-
20	W11233072		Screw 8x3/8 Lg. C.r. Binding Hd. Cad. Pl.   (Replaces: 803416)			Immediately	$ 12.62
21	807425		Splash Pan		Appelez-nous	-
22	806894		Screw 8 X 5/16 Lg. C.r.		Appelez-nous	-
23	808407		Switch		Appelez-nous	-
24	808398		Shield - Vent Slot		Appelez-nous	-
25	808814		Switch Mounting Bracket		Appelez-nous	-
26	807141		Screw 6-30 X 3/8 Lg. Pan Hd Cad. Pl.		Appelez-nous	-
