Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3201609 Cover Top Appelez-nous -
2 5308010825 Clip Appelez-nous -
3 5303208804 Timer Appelez-nous -
6 3206005 End Cap - Rh Appelez-nous -
7 3205822 Bracket - Controls Appelez-nous -
8 3161188 Screw Appelez-nous -
9 5303210921 Panel - Control Appelez-nous -
10 5308015493 Spacer - Timer Special Order $ 14.36

11 5308015529 Pointer Appelez-nous -
12 5303207073 Knob - Timer Special Order $ 30.35

13 5303161233 Screw Appelez-nous -
15 5308008462 Knob - Rotary Special Order $ 35.02

16 3161259 Screw Special Order $ 6.83

17 5303161244 Screw Appelez-nous -
18 5303210923 Grommet Appelez-nous -
19 5308008463 Switch-temperature Special Order $ 84.39

21 5303210924 Switch - Pressure Appelez-nous -
24 5303210330 Harness Appelez-nous -
25 3205820 Screw Appelez-nous -
26 5303015671 Screw Appelez-nous -
27 3201349 Backsheet Appelez-nous -
28 08001689 Screw Appelez-nous -
29 5379171000 Terminal Appelez-nous -
30 3206007 End Cap - Lh Appelez-nous -
31 5300503065 Nut Special Order $ 6.09


    View Diagram in Separate Window     Print Icon   Print Part List

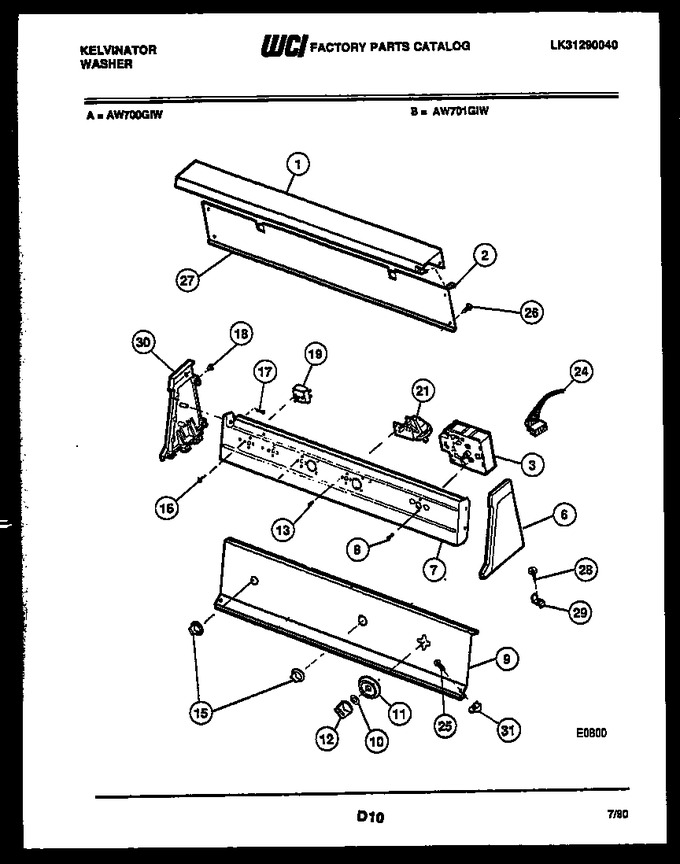

Diagram for AW700G1W
