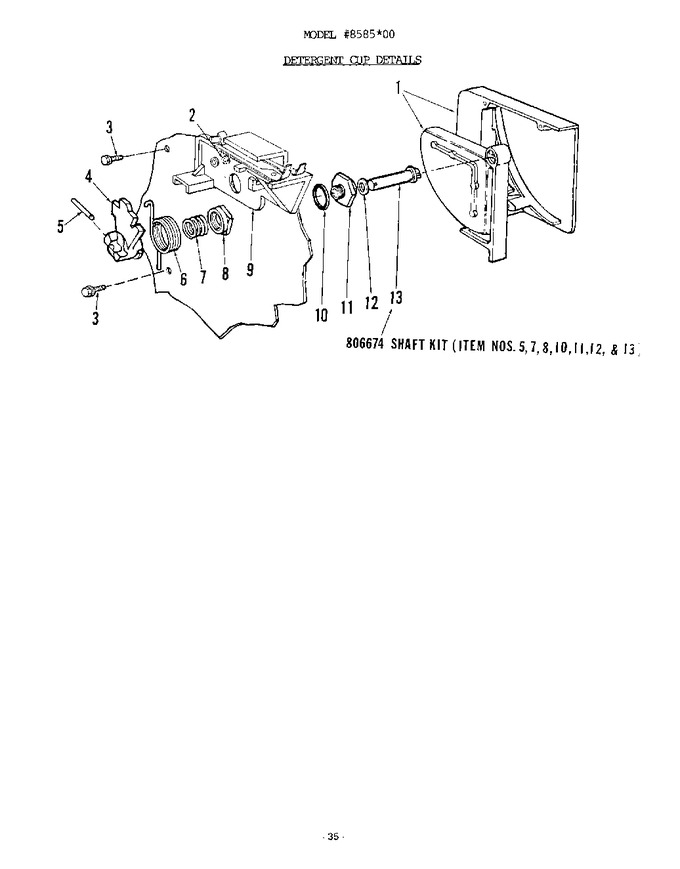

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807261		Detergent Cup & Cover Kit		Appelez-nous	-
2	808210		``o`` Ring				$ 0.42
3	808209		Screw No.8x5/8`` Lg. Hex Washer Hd. St. St.		Appelez-nous	-
4	154180301		Cam   (Replaces: 806566)				$ 32.84
5	804734		Rollpin - Cam		Appelez-nous	-
6	805227		Spring - Cam		Appelez-nous	-
7	806567		Spring-cam Compression		Appelez-nous	-
8	806568		Nut		Appelez-nous	-
9	808507		Trigger Assembly		Appelez-nous	-
10	802836		Washer		Appelez-nous	-
11	805626		Bushing		Appelez-nous	-
12	806647		``o`` Ring		Appelez-nous	-
13	806648		Shaft		Appelez-nous	-
14	806674		Shaft Kit (includes Items 5, 8, 10, 11, 12 & 13)		Appelez-nous	-
