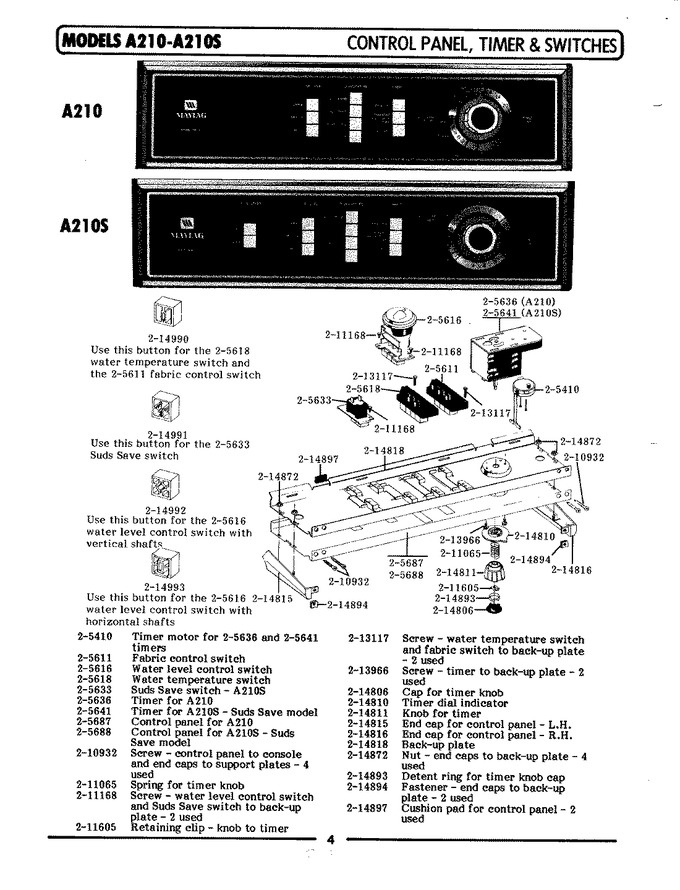

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	205410		Timer Motor 120-60	00	Appelez-nous	-
2	205611		Fabric Control Switch	00	Appelez-nous	-
3	205616		Water Level Control Switch	00	Appelez-nous	-
4	205618		Water Temperature Switch	00	Appelez-nous	-
6	205636CP		Timer Rpr   (Replaces: 205636)	00	Appelez-nous	-
8	205687		Control Panel	00	Appelez-nous	-
10	210932		Screw, No.8 X 9/16 Ctsk	00	Appelez-nous	-
11	211065		Spring, Timer Knob	00			$ 5.70
12	WPW10139210		Screw, No.8 X 5/16 Inch   (Replaces: 211168)	00			$ 6.75
13	211605		Retainer, Timer Knob	00	Appelez-nous	-
14	WP67006908		Screw-temp. Switch To Panel   (Replaces: 213117)	00		Immediately	$ 7.16
15	WP3400014		Screw-timer To Control Pane   (Replaces: 213966)	00			$ 6.98
16	214806		Cap For Timer Knob	00	Appelez-nous	-
17	214810		Timer Dial Indicator	00	Appelez-nous	-
18	214811		Knob For Timer	00	Appelez-nous	-
20	214816		End Cap F/control Panel-rh	00	Appelez-nous	-
21	214818		Back Up Plate	00	Appelez-nous	-
22	214872		Palnut, End Cap	00	Appelez-nous	-
23	214893		Detent Ring F/timer Knob Ca	00	Appelez-nous	-
24	214894		Fastener, End Cap	00	Appelez-nous	-
25	214897		Pad, Control Panel	00	Appelez-nous	-
NI	214815		End Cap F/control Panel-lh	00	Appelez-nous	-
