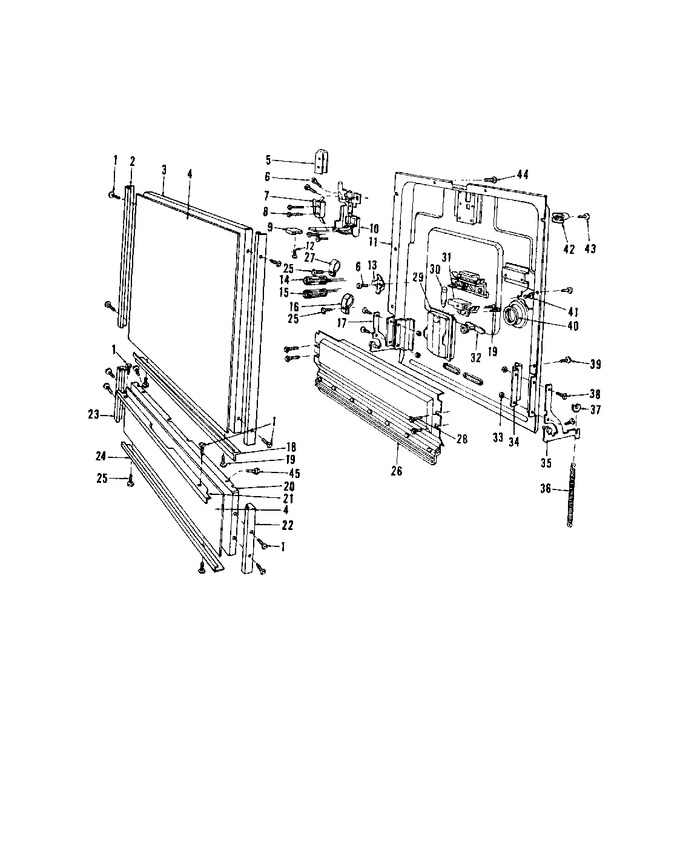

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP74004005		Screw 6x1/4 Lg. C.r. Truss Hd Chrome Pl.   (Replaces: 807293)				$ 6.95
2	808026		Door Panel Trim-side		Appelez-nous	-
3	807262		Door Panel (white)		Appelez-nous	-
4	808404		Door & Access Insert Panels (almond/black)		Appelez-nous	-
5	807450		Cover - Switch		Appelez-nous	-
6	806830		Screw 8-32x5/16 Lg. C.r. Hex Hd. Cad. Pl.		Appelez-nous	-
7	807043		Xswitch		Appelez-nous	-
8	808618		Screw 6-32x1``lg. Hex Hd. Cad. Pl.		Appelez-nous	-
9	806398		Xlatch Knob		Appelez-nous	-
10	807016		Xlatch Assembly		Appelez-nous	-
11	COMM PART		Porcelain Weld Assembly   (Replaces: 807194)		Appelez-nous	-
12	808715		Screw 8-32x5/16 Lg. Hex Hd. Cad. Pl.		Appelez-nous	-
13	807213		Grounding Terminal		Appelez-nous	-
14	808485		Xthermostat (high Limit)		Appelez-nous	-
15	808646		Xthermostat (water Heat)		Appelez-nous	-
16	808442		Clamp		Appelez-nous	-
17	805682		Xcounterbalance Arm Assembly-l.h.		Appelez-nous	-
18	COMM PART		Door Panel Trim-bottom   (Replaces: 807347)		Appelez-nous	-
19	807501		Screw 8x1/2 Lg. C.r. Truss Hd. Chrome Pl.		Appelez-nous	-
20	807257		Access Panel - White		Appelez-nous	-
21	808346		Access Panel Trip - Top		Appelez-nous	-
22	808028		Access Panel Trim-r.h.		Appelez-nous	-
23	808029		Access Panel Trim - L.h.		Appelez-nous	-
24	80802ÿÿ7		Access Pÿÿanel Tÿÿrim-bottÿÿom		Appelez-nous	-
25	W11233072		Scÿÿrew 8x3/ÿÿad. Pl.   (Replaces: 803416)			Immediately	$ 12.62
26	5300809243		Xvent Plate Assembly   (Replaces: 808369)				$ 20.25
27	808495		Clamp		Appelez-nous	-
28	806810		Screw 8x3/8 Lg. C.r. Round Hd. St. St.		Appelez-nous	-
29	806753		Xbody Assembly		Appelez-nous	-
30	806757		Xplunger		Appelez-nous	-
31	806756		Bracket Assembly		Appelez-nous	-
32	806755		Xfill Plug		Appelez-nous	-
33	M0282009		Nut   (Replaces: 808470)				$ 12.06
34	COMM PART		Counterbalance Arm Mounting Bracket   (Replaces: 806717)		Appelez-nous	-
35	805681		Xcounterbalance Arm Assem.r.h.		Appelez-nous	-
36	805683		Xdoor Spring (includes Key No. 37)		Appelez-nous	-
37	805884		Spring Pad		Appelez-nous	-
38	803311		Screw 10-24x5/8 Lg. C.r. Truss Hd. Chr. Pl.		Appelez-nous	-
39	806967		Screw 8x1/2 Lg. C.r. Truss Hd. St. St.		Appelez-nous	-
40	805631		Grommet - Dispenser		Appelez-nous	-
41	806863		Screw 10x3/8 Lg. Truss Washer Hd. St. St.		Appelez-nous	-
42	807449		Guide - Door		Appelez-nous	-
43	808749		Screw 8x5/8 Lg. C.r. Truss Hd. St. St.		Appelez-nous	-
44	806894		Screw 8x5/16 Lg. C.r. Hd. St. St.		Appelez-nous	-
45	WP90767		Screw 8x3/8 Lg. C.r. Hex Washer Hd. Chrome Pl.   (Replaces: 808658)			Immediately	$ 7.04
