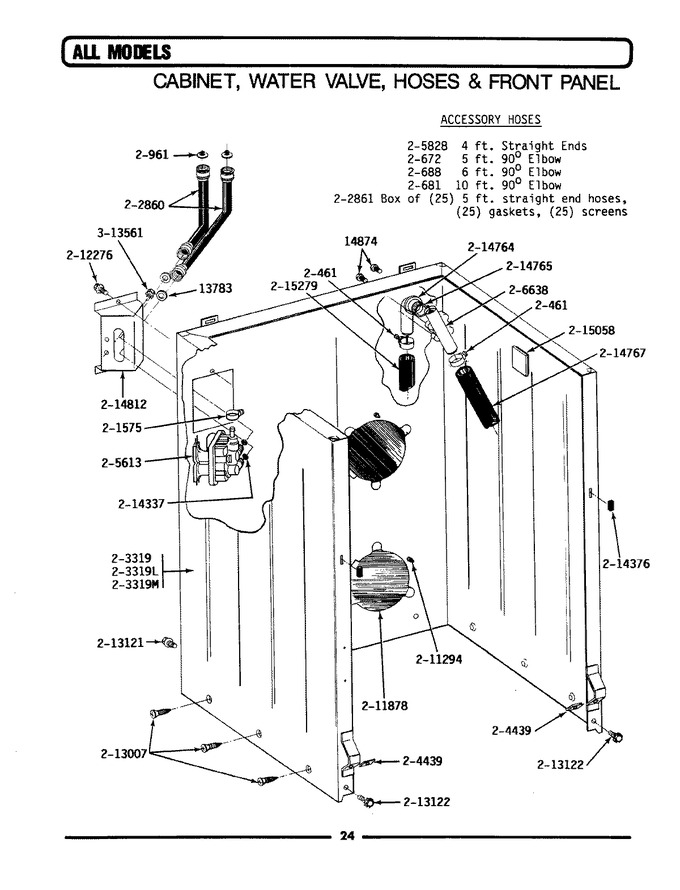

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y013783 | Gasket, Inlet Hose | 00 |
|
$ 18.72 | ||||
| 2 | WPY014874 | Screw (Replaces: Y014874) | 00 |
|
$ 6.98 | ||||
| 3 | WP285655 | Hose Clamp - 1-5/8 Inch (Replaces: 200461) | 00 |
|
Immediately | $ 7.55 | |||
| 4 | WP76314 | Inlet Hose Assy. (Replaces: 200672) | 00 |
|
$ 38.79 | ||||
| 5 | 3810FF | Inlet Hose, Hot 10 Ft. (Replaces: 200681) | 00 |
|
Immediately | $ 26.11 | |||
| 6 | WP76314 | Inlet Hose, Hot 6 Ft. (Replaces: 200688) | 00 |
|
$ 38.79 | ||||
| 8 | 200961 | Screen Washer, Inlet Hose | 00 |
|
- | ||||
| 9 | WP596669 | Hose Clamp (Replaces: 201575) | 00 |
|
Immediately | $ 7.56 | |||
| 10 | WP89503 | Inlet Hose Assy. (Replaces: 202860) | 00 |
|
Immediately | $ 21.68 | |||
| 11 | WP89503 | Carton Of 25 Hose, 5` (Replaces: 202861) | 00 |
|
Immediately | $ 21.68 | |||
| 13 | 203319 | Cabinet-white | 00 |
|
- | ||||
| 15 | 204439 | Screw & Fstner Assy(frt.panel) | 00 |
|
$ 8.80 | ||||
| 16 | 205613 | Water Valve | 00 |
|
Immediately | $ 103.57 | |||
| 17 | WP89503 | Hose, Inlet Assy. (Replaces: 205828) | 00 |
|
Immediately | $ 21.68 | |||
| 19 | 206638 | Siphon Break(w/clamp) | 00 |
|
Immediately | $ 73.56 | |||
| 21 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 22 | 211878 | Plate, Access | 00 |
|
- | ||||
| 23 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 27 | 213007 | Screw, Cabinet | 00 |
|
$ 10.99 | ||||
| 28 | WPW10346892 | Screw (Replaces: 213121) | 00 |
|
Immediately | $ 6.47 | |||
| 29 | WP27001200 | Screw,cbnt.to Frnt Of Base--na (Replaces: 213122) | 00 |
|
$ 6.91 | ||||
| 31 | WP96160 | Screen, Valve (Replaces: 214337) | 00 |
|
$ 10.54 | ||||
| 32 | 214376 | Spacer, Front Panel | 00 |
|
- | ||||
| 33 | 208847 | Siphon Break Elbow (Replaces: 214764) | 00 |
|
Immediately | $ 32.47 | |||
| 34 | WP214765 | Gasket, Siphon Break (Replaces: 214765) | 00 |
|
$ 73.22 | ||||
| 35 | WP22001448 | Hose,pump To Siphon Break (Replaces: 214767) | 00 |
|
$ 79.87 | ||||
| 36 | 214812 | Bracket,water Valve | 00 |
|
- | ||||
| 37 | 215058 | Pad, Cabinet Bumper | 00 |
|
- | ||||
| 38 | WP22003410 | Hose, Drain (Replaces: 215279) | 00 |
|
Immediately | $ 47.69 | |||
| 39 | Y313561 | Screw----na | 00 |
|
$ 5.27 | ||||
| NI | 203237 | No.17 Wire With Terminal | 00 |
|
- | ||||
| NI | 212998 | Front Panel-white | 00 |
|
$ 8.63 | ||||
| NI | 206103 | Capacitor Kit | 00 |
|
$ 55.71 | ||||
| NI | Y200832 | Capacitor | 00 |
|
$ 66.37 | ||||
| NI | 211149 | Clip, Capacitor | 00 |
|
$ 6.23 | ||||
| NI | 213846 | Guard, Belt | 00 |
|
- | ||||
| NI | WP22001650 | Fastener, Panel (Replaces: 212982) | 00 |
|
Immediately | $ 7.34 |
