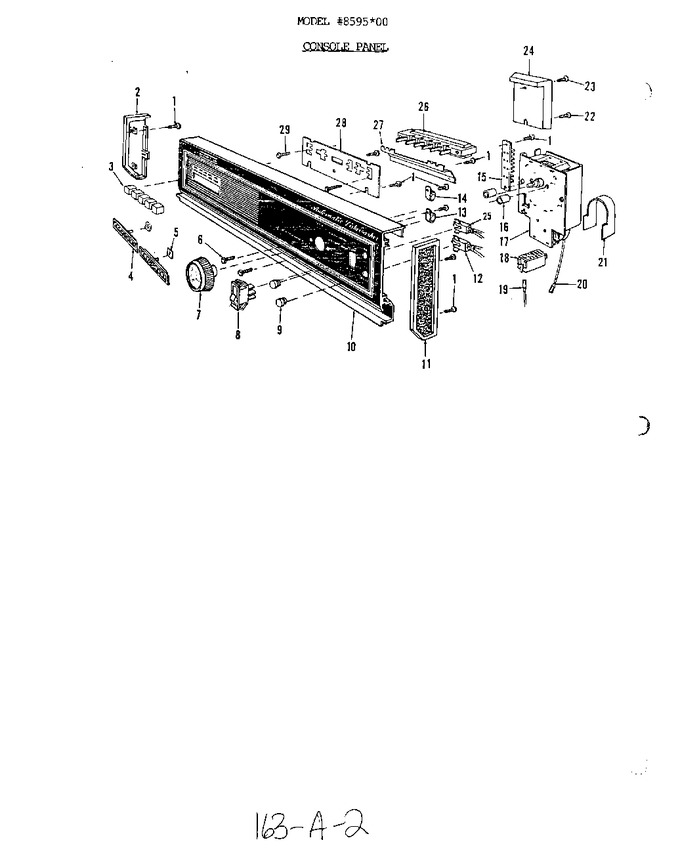

02 - Console Panel


03 - Door


04 - Tub


05 - Motor, Heater And Spray Arm


06 - Rack


07 - Frame


08 - Detergent Cup


09 - Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	806943		Screw No.8x7/16``lg. C.r. Pan Hd. Cad. Pl.		Appelez-nous	-
2	808811		End Cap L.h.		Appelez-nous	-
3	807273		Pushbutton		Appelez-nous	-
4	808477		Vent Grille		Appelez-nous	-
5	808475		Speednut		Appelez-nous	-
6	808422		Screw No.10-32x1-17/64``lg. C.r. Truss Hd. Cad. Pl.		Appelez-nous	-
7	808909		Timer Knob		Appelez-nous	-
8	807737		Rocker Switch		Appelez-nous	-
9	805664		Lens-red		Appelez-nous	-
10	808817		Console Panel		Appelez-nous	-
11	808810		End Cap R.h.		Appelez-nous	-
12	808736		Light Assembly - Delay		Appelez-nous	-
13	808442		Clamp		Appelez-nous	-
14	W10833902		Clamp   (Replaces: 805584)				$ 9.89
15	808483		Terminal Board Assembly		Appelez-nous	-
16	808424		Spacer		Appelez-nous	-
17	808682		Timer		Appelez-nous	-
18	808231		Housing - Timer Terminal		Appelez-nous	-
19	808333		Housing Terminal		Appelez-nous	-
20	808334		Terminal - Timer		Appelez-nous	-
21	808664		Insulator - Timer		Appelez-nous	-
22	W11233072		Screw No.8x3/8`` Lg. C.r. Binding Hd. Cad. Pl.   (Replaces: 803416)			Immediately	$ 12.62
23	806894		Screw No.8bx5/16``lg. C.r. Truss Hd. Cad. Pl.		Appelez-nous	-
24	807425		Splash Pan		Appelez-nous	-
25	808484		Light Assembly - Pilot		Appelez-nous	-
26	808744		Switch		Appelez-nous	-
27	808398		Shield - Vent Slot		Appelez-nous	-
28	808814		Switch - Bracket		Appelez-nous	-
29	807141		Screw		Appelez-nous	-
