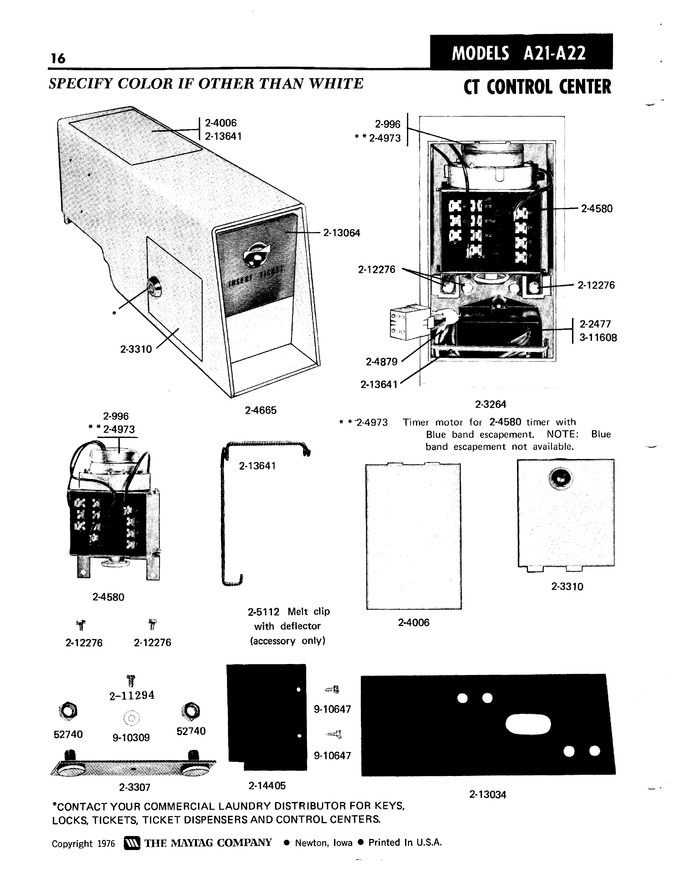

06 - Ct Control Center


07 - Ct Control Center Components


08 - Motor Mount, Base Frame & Centering Sprs


09 - Power Unit & Center Assembly


10 - `poly` Pump


11 - Brake & Clutch Assembly


12 - Bleach Injection System


13 - Water Injection System, Hoses & Clamps


14 - 230 Volt, 50 Cycle Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Double Melt Clip W/deflector	00	Appelez-nous	-
002	WP62739		Nut   (Replaces: Y052740)	00			$ 6.85
003	NLA		Motor, Timer	00	Appelez-nous	-
004	202477		Control, Electronic	00	Appelez-nous	-
005	NLA		Case, Outer (wht)	00	Appelez-nous	-
006	NLA		Strap, Mounting	00	Appelez-nous	-
007	NLA		Door, Access (wht)	00	Appelez-nous	-
008	NLA		Door, Access (wht)	00	Appelez-nous	-
009	NLA		Timer W/knob & Pin	00	Appelez-nous	-
010	NLA		Center, Control (wht)	00	Appelez-nous	-
011	NLA		Harness, Ticket Control	00	Appelez-nous	-
012	204973		Motor, Timer	00	Appelez-nous	-
013	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
014	WP90767		Screw   (Replaces: 212276)	00		Immediately	$ 7.04
015	NLA		Gasket, Control Center	00	Appelez-nous	-
016	NLA		Front Plate, Ticket Control	00	Appelez-nous	-
017	NLA		Latch, Access Door	00	Appelez-nous	-
018	NLA		Shield, Moisture	00	Appelez-nous	-
019	WP98165		Screw   (Replaces: 311608)	00			$ 7.20
020	910309		Washer	00	Appelez-nous	-
021	W11233072		Screw   (Replaces: 910647)	00		Immediately	$ 12.62
