SELECT A DIAGRAM

01 - Front View


02 - Rear View


03 - Front Panel Removed


04 - Top Cover Up


05 - Control Panel

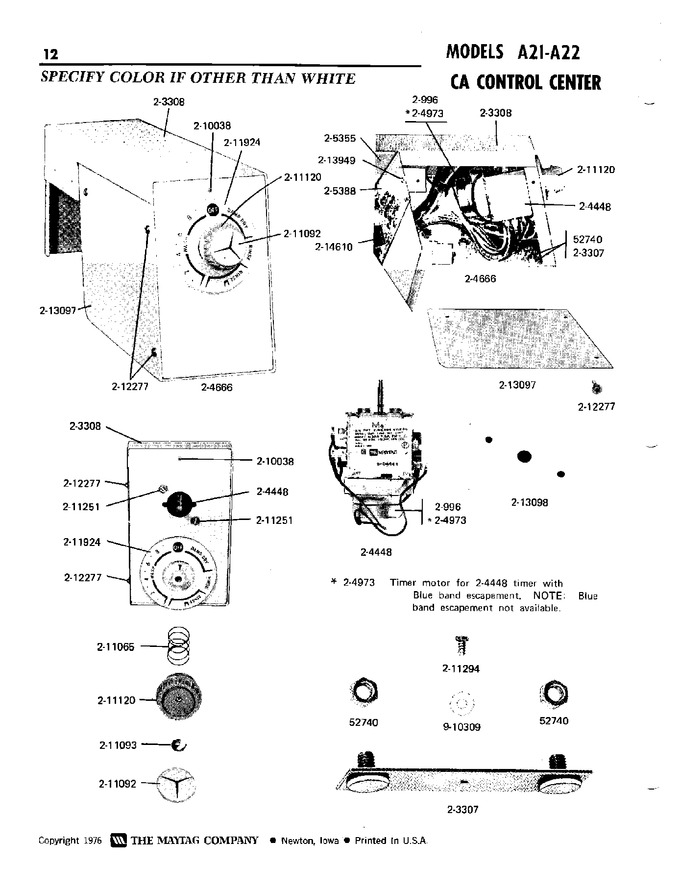

06 - Ca Control Center


07 - Motor Mount, Base Frame & Centering Sprs


08 - Power Unit & Center Assembly


09 - `poly` Pump


10 - Brake & Clutch Assembly


11 - Bleach Injection System


12 - Water Injection System, Hoses & Clamps


13 - 230 Volt, 50 Cycle Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP62739		Nut   (Replaces: Y052740)	01			$ 6.85
002	NLA		Timer Motor, A	01	Appelez-nous	-
003	NLA		Mtg. Strap----na	01	Appelez-nous	-
004	NLA		Outer Case-white	01	Appelez-nous	-
005	NLA		Timer	01	Appelez-nous	-
006	NLA		Control Center-white	01	Appelez-nous	-
007	204973		Timer Motor	01	Appelez-nous	-
008	NLA		Control Cover-white	01	Appelez-nous	-
009	NLA		Control Panel With Lens	01	Appelez-nous	-
010	NLA		Button Marker	01	Appelez-nous	-
011	211065		Spring, Timer Knob	01			$ 5.70
012	NLA		Cap, Knob	01	Appelez-nous	-
013	211093		Retainer	01	Appelez-nous	-
014	211120		Timer Knob	01	Appelez-nous	-
015	WP90767		Screw   (Replaces: 211294)	01		Immediately	$ 7.04
016	211251		Screw	01	Appelez-nous	-
017	NLA		Timer Dial	01	Appelez-nous	-
018	WP90767		Screw   (Replaces: 212276)	01		Immediately	$ 7.04
019	WP1163283		Screw, No.8 X 1/2 Inch   (Replaces: 212277)	01			$ 6.47
020	NLA		Access Door For Timer	01	Appelez-nous	-
021	NLA		Gasket Under Control Center	01	Appelez-nous	-
022	WP355214		Screw, No.8-18 X 5/16 Inch   (Replaces: 213949)	01		Immediately	$ 7.26
023	214610		Bumper, Lid	01	Appelez-nous	-
024	910309		Washer	01	Appelez-nous	-
