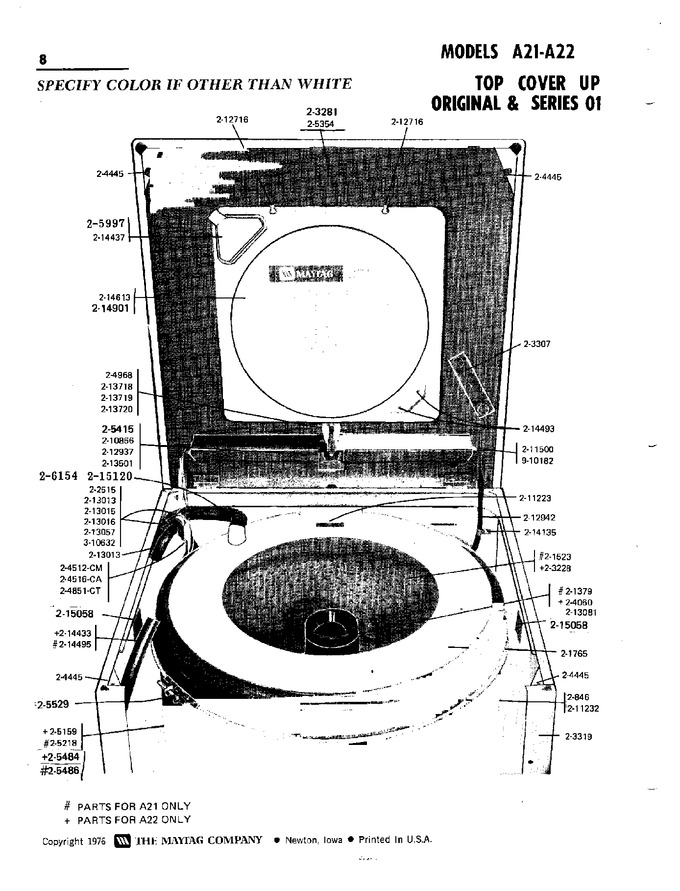

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 200846 | Clamp - Tub Cover | 01 |
|
$ 62.11 | ||||
| 002 | 201765 | Tub Cover | 01 |
|
- | ||||
| 003 | WP596669 | Hose Clamp - 1-1/16 Inch (Replaces: 202515) | 01 |
|
Immediately | $ 7.56 | |||
| 004 | 215058 | Pad, Cabinet Bumper | 01 |
|
- | ||||
| 005 | W10820036 | Switch, Lid (w/o Tub Light) (Replaces: 205415) | 01 |
|
Immediately | $ 27.45 | |||
| 006 | 203228 | Inner Tub | 01 |
|
- | ||||
| 007 | NLA | Mtg. Strap----na | 01 |
|
- | ||||
| 008 | NLA | Cabinet-white | 01 |
|
- | ||||
| 009 | 204060 | Agitator-black | 01 |
|
- | ||||
| 010 | 204445 | Screw & Fastener Asy. | 01 |
|
- | ||||
| 011 | NLA | Main Wire Harness | 01 |
|
- | ||||
| 012 | NLA | Main Wire Harness | 01 |
|
- | ||||
| 013 | NLA | Main Wire Harness | 01 |
|
- | ||||
| 014 | 204968 | Plunger & Bracket Assembly--w | 01 |
|
$ 26.05 | ||||
| 015 | 205159 | Outer Tub | 01 |
|
- | ||||
| 016 | NLA | Top Cover-white | 01 |
|
- | ||||
| 017 | 210866 | Twin Speed Nut | 01 |
|
- | ||||
| 018 | 211223 | Unbalance Bumper | 01 |
|
- | ||||
| 019 | WP211232 | Seal (Replaces: 211232) | 01 |
|
$ 62.96 | ||||
| 020 | 211500 | Washer,bracke To Top Cover | 01 |
|
- | ||||
| 021 | WP211726 | Hinge, Ball (Replaces: 211726) | 01 |
|
Immediately | $ 7.18 | |||
| 022 | WP212716 | Bumper, Lid (Replaces: 212716) | 01 |
|
Immediately | $ 7.88 | |||
| 023 | 212937 | Moisture Barrier | 01 |
|
- | ||||
| 024 | WP22001619 | Air Dome And Tube (Replaces: 212942) | 01 |
|
$ 75.73 | ||||
| 025 | WP213013 | Hose, Injector (Replaces: 213013) | 01 |
|
Immediately | $ 44.40 | |||
| 026 | WP213015 | Injector Nozzle (Replaces: 213015) | 01 |
|
Immediately | $ 7.29 | |||
| 027 | WP216201 | Valve For Injector Sub (Replaces: 213016) | 01 |
|
Immediately | $ 18.88 | |||
| 028 | 213055 | Injector Tube | 01 |
|
- | ||||
| 029 | WP22213057 | Sleeve For Injector (Replaces: 213057) | 01 |
|
$ 8.06 | ||||
| 030 | 213081 | Dispenser Cap-black | 01 |
|
- | ||||
| 031 | 213501 | Screw, No.6-20 X 1-1/8 Inch | 01 |
|
$ 12.03 | ||||
| 032 | 213718 | Lid Switch Plunger | 01 |
|
$ 12.10 | ||||
| 033 | 213719 | Unbalance Lever | 01 |
|
- | ||||
| 034 | WP213720 | Spring (Replaces: 213720) | 01 |
|
$ 7.63 | ||||
| 035 | 214135 | Fastener Clip | 01 |
|
- | ||||
| 036 | WP214433 | Tube, Inlet To Tub (Replaces: 214433) | 01 |
|
Immediately | $ 28.17 | |||
| 037 | 214437 | Bleach Inlet | 01 |
|
- | ||||
| 038 | 214493 | Plasti-rivet | 01 |
|
- | ||||
| 039 | NLA | Lid-white | 01 |
|
- | ||||
| 040 | Y310632 | Screw | 01 |
|
- | ||||
| 041 | W10756178 | Screw (Replaces: 910182) | 01 |
|
$ 5.39 | ||||
| 042 | NLA | Top Cover-white | 01 |
|
- | ||||
| 043 | 205484 | Outer Tub | 01 |
|
- | ||||
| 044 | 205529 | Nut & Bolt Kit For Tub Clam | 01 |
|
$ 6.58 | ||||
| 045 | 214901 | Lid-white | 01 |
|
- | ||||
| 046 | 205997 | Non-bleach Conversion Kit | 01 |
|
- | ||||
| 047 | 206154 | Injector Tube With Seal | 01 |
|
$ 50.55 | ||||
| 048 | 215120 | Seal For Injector Tube | 01 |
|
$ 5.83 |
