02 - Door


03 - Cabinet

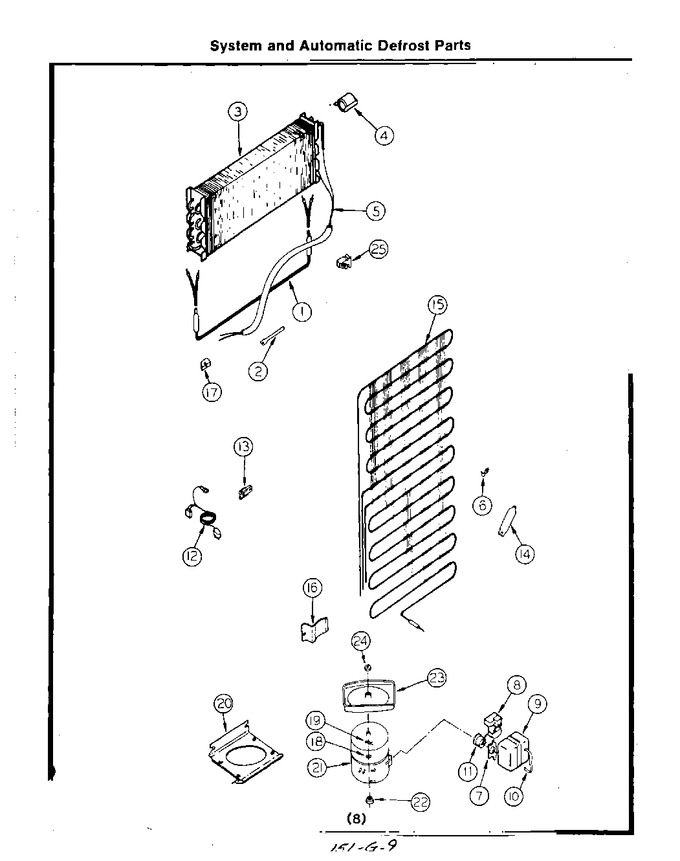

04 - System And Automatic Defrost


05 - Icemaker


06 - Icemaker Installation


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	790159		Xheater - Defrost		Appelez-nous	-
2	790100		Clip - Heater		Appelez-nous	-
3	790160		Xevaporator		Appelez-nous	-
4	790102		Xthermostat - Defrost		Appelez-nous	-
5	790161		Suction & Cap Tube		Appelez-nous	-
6	790104		Clamp - Tube		Appelez-nous	-
7	790105		Clip - Overload		Appelez-nous	-
8	790106		Relay		Appelez-nous	-
9	790107		Cover - Terminal		Appelez-nous	-
10	790108		Clamp - Cover		Appelez-nous	-
11	790109		Overload		Appelez-nous	-
12	790110		Cord - Service		Appelez-nous	-
13	790111		Clamp - Cable				$ 101.97
14	790112		Xdryer		Appelez-nous	-
15	790113		Xcondenser		Appelez-nous	-
16	790114		Bracket - Condenser Mounting		Appelez-nous	-
17	790123		Block - Evaporator R.h.		Appelez-nous	-
18	790116		Washer - Compressor Mounting		Appelez-nous	-
19	790117		Clip - Compressor Mounting		Appelez-nous	-
20	790162		Plate - Compressor Mounting		Appelez-nous	-
21	790119		Xcompressor		Appelez-nous	-
22	790120		Grommet - Compressor Mounting		Appelez-nous	-
23	790163		Defrost Pan		Appelez-nous	-
24	790122		Nut - Lock		Appelez-nous	-
25	790082		Screw - Bracket - Condenser Mounting		Appelez-nous	-
25	790115		Block - Evaporator L.h.		Appelez-nous	-
