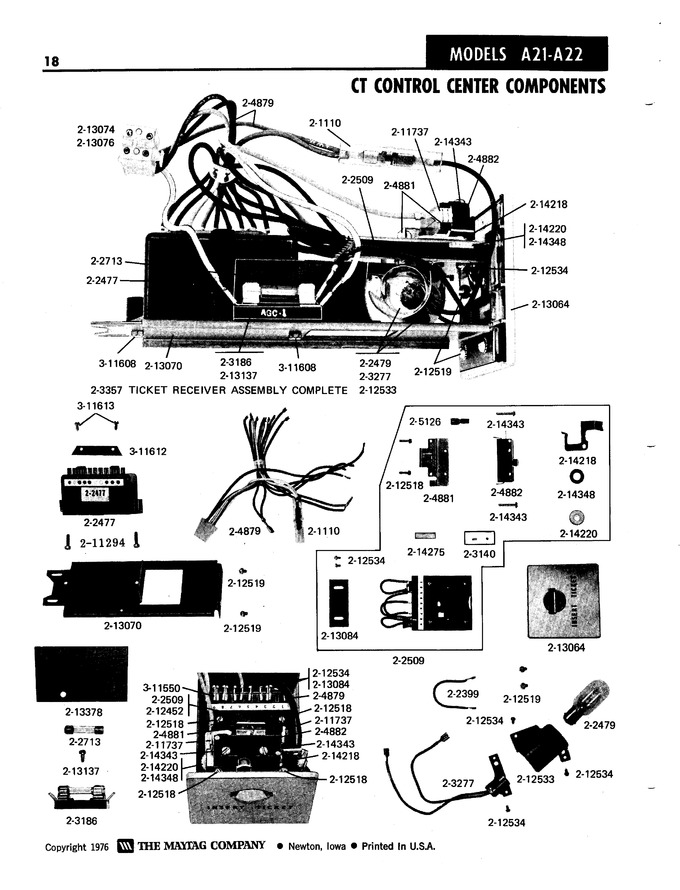

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Double Melt Clip W/deflecto | 01 |
|
- | ||||
| 002 | Y201110 | Wire Connector | 01 |
|
- | ||||
| 003 | NLA | Switch Actuator | 01 |
|
- | ||||
| 004 | NLA | Jumper Wire (black) | 01 |
|
- | ||||
| 005 | 202477 | Electronic Control | 01 |
|
- | ||||
| 006 | 202479 | Lamp For Ticket Control | 01 |
|
- | ||||
| 007 | 202509 | Ticket Control | 01 |
|
- | ||||
| 008 | WP22001555 | Fuse (Replaces: 202713) | 01 |
|
Immediately | $ 27.33 | |||
| 009 | 203140 | Contact Ball Kit | 01 |
|
Immediately | $ 25.88 | |||
| 010 | NLA | Fuse Block With Fuse | 01 |
|
- | ||||
| 011 | NLA | Lamp Socket With Bracket | 01 |
|
- | ||||
| 012 | NLA | Harness For Ticket Control | 01 |
|
- | ||||
| 013 | NLA | Resistor (1m Ohm) | 01 |
|
- | ||||
| 014 | NLA | Ticket Receiver Assembly | 01 |
|
- | ||||
| 015 | NLA | Harness For Ticket Control | 01 |
|
- | ||||
| 016 | 204881 | Cam Plate Assembly | 01 |
|
- | ||||
| 017 | 204882 | Switch For Ticket Control | 01 |
|
- | ||||
| 018 | NLA | Spade Connector | 01 |
|
- | ||||
| 019 | WP248562 | Wire Connector (Replaces: 211737) | 01 |
|
$ 6.95 | ||||
| 020 | NLA | Overlay For Circuit Board | 01 |
|
- | ||||
| 021 | 212452 | Circuit Board | 01 |
|
- | ||||
| 022 | NLA | Sems Screw (no.4-40 X 1/2 Inc) | 01 |
|
- | ||||
| 023 | WP488234 | Screw, No.8-32 X 1/4 Inch (Replaces: 212519) | 01 |
|
$ 6.07 | ||||
| 024 | 212533 | Shield For Heat Lamp | 01 |
|
$ 11.78 | ||||
| 025 | NLA | Screw, Shield To Control | 01 |
|
- | ||||
| 026 | NLA | Front Plate F/ticket Contro | 01 |
|
- | ||||
| 027 | NLA | Bracket For Ticket Assembly | 01 |
|
- | ||||
| 028 | NLA | Ticket Deflector | 01 |
|
- | ||||
| 029 | NLA | Screw (no.6 X 1/4 Inch) | 01 |
|
- | ||||
| 030 | NLA | Shield | 01 |
|
- | ||||
| 031 | 214218 | Switch Lever | 01 |
|
$ 80.43 | ||||
| 032 | 214220 | Adjustment Thumb Wheel | 01 |
|
- | ||||
| 033 | 214275 | Roller For Cam | 01 |
|
- | ||||
| 034 | NLA | Screw | 01 |
|
- | ||||
| 035 | NLA | Spring Washer | 01 |
|
- | ||||
| 036 | Y311550 | Spade (miniature) | 01 |
|
- | ||||
| 037 | WP90767 | Screw (Replaces: 211294) | 01 |
|
Immediately | $ 7.04 | |||
| 038 | 311612 | Cover For Circuit Board | 01 |
|
- | ||||
| 039 | 311613 | Screw - Circuit Board Cover | 01 |
|
- | ||||
| 040 | 213074 | Pin Receptacle For Plug | 01 |
|
- | ||||
| 041 | NLA | Pin For Plug | 01 |
|
- |
