SELECT A DIAGRAM

02 - Door


03 - Cabinet


04 - System And Automatic Defrost


05 - Icemaker


06 - Icemaker Installation

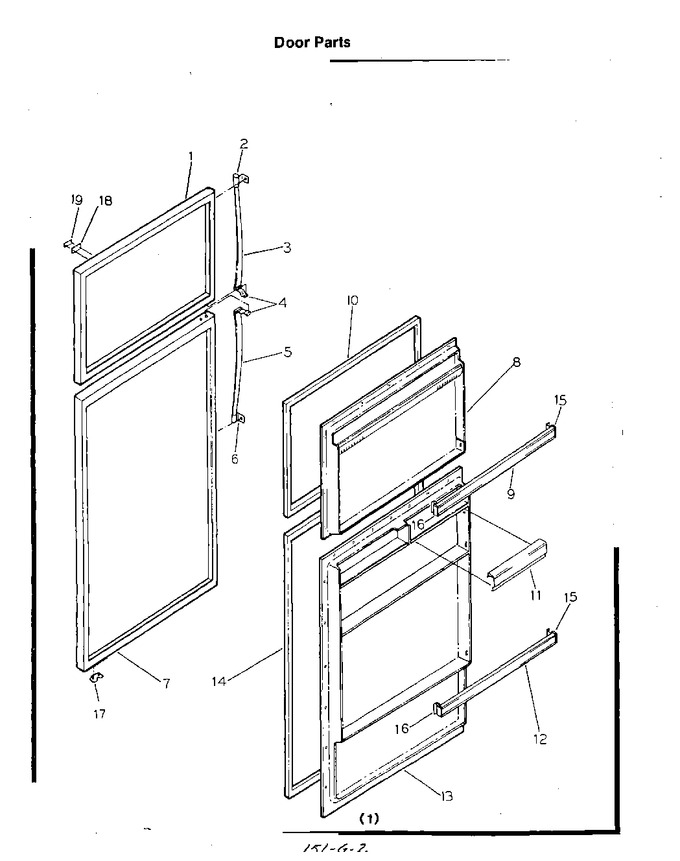

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	790200		Exterior Panel - Freezer - Avocado		Appelez-nous	-
1	790201		Exterior Panel - Freezer - Harvest		Appelez-nous	-
1	790202		Exterior Panel - Freezer - Coffee		Appelez-nous	-
1	790203		Exterior Panel - Freezer - Almond		Appelez-nous	-
1	790204		Exterior Panel - Freezer - Toast		Appelez-nous	-
1	790205		Exterior Panel - Freezer - Platinum		Appelez-nous	-
1	790144		Exterior Panel - Freezer - White		Appelez-nous	-
2	790145		End - Handle Top Freezer		Appelez-nous	-
3	790003		Grip - Handle Freezer		Appelez-nous	-
4	790002		End - Handle		Appelez-nous	-
5	790003		Grip - Handle - Refrigerator		Appelez-nous	-
6	790146		End - Handle - Refrigerator Bottom		Appelez-nous	-
7	WPY04000066		Exterior Panel - Refrigerator - Coffee   (Replaces: 790208)			Immediately	$ 70.53
7	790207		Exterior Panel - Refrigerator - Harvest		Appelez-nous	-
7	790206		Exterior Panel - Refrigerator - Avocado		Appelez-nous	-
7	790147		Exterior Panel - Refrigerator - White		Appelez-nous	-
7	790210		Exterior Panel - Refrigerator - Toast		Appelez-nous	-
7	790211		Exterior Panel - Refrigerator - Platinum		Appelez-nous	-
7	WPY04000048		Exterior Panel - Refrigerator - Almond   (Replaces: 790209)				$ 160.58
8	790148		Interior Panel - Freezer		Appelez-nous	-
9	790149		Rack - Freezer Door		Appelez-nous	-
10	790006		Gasket - Freezer Door		Appelez-nous	-
11	790150		Door - Butter		Appelez-nous	-
12	790152		Rack - Refrigerator		Appelez-nous	-
13	790153		Interior Panel - Refrigerator		Appelez-nous	-
14	WP489483		Xgasket - Refrigerator Door   (Replaces: 790154)				$ 9.78
15	790155		Support - Rack L.h.		Appelez-nous	-
16	790156		Support - Rack R.h.		Appelez-nous	-
17	790157		Door Stop		Appelez-nous	-
18	790016		Nameplate		Appelez-nous	-
19	790014		Label - Nameplate		Appelez-nous	-
	790212		Button - Plug - R.h. Handle & Door Stop Mounting Holes - Toast		Appelez-nous	-
	790179		Button - Plug - L.h. Upper Hinge Bearing - Almond		Appelez-nous	-
	790172		Button - Plug - R.h. Handle & Door Stop Mounting Holes - Avocado		Appelez-nous	-
	790173		Button - Plug - R.h. Handle & Door Stop Mounting Holes - Harvest		Appelez-nous	-
	790174		Button - Plug - R.h. Handle & Door Stop Mounting Holes - Coffee		Appelez-nous	-
	790175		Button - Plug - R.h. Handle & Door Stop Mounting Holes - Almond		Appelez-nous	-
	790213		Button - Plug - R.h. Handle & Door Stop Mounting Holes - Platinum		Appelez-nous	-
	790008		Screw No.8 X 1/2 - Refrigerator Panel To Exterior Panel		Appelez-nous	-
	790001		Bearing - Hinge - Refrigerator		Appelez-nous	-
	790221		Kit - Door Conversion - Platinum		Appelez-nous	-
	790220		Kit - Door Conversion - Toast		Appelez-nous	-
	790219		Kit - Door Conversion - Almond		Appelez-nous	-
	790178		Button - Plug - L.h. Upper Hinge Bearing - Coffee		Appelez-nous	-
	790218		Kit - Door Conversion - Coffee		Appelez-nous	-
	790217		Kit - Door Conversion - Harvest		Appelez-nous	-
	780216		Kit - Door Conversion - Avocado		Appelez-nous	-
	790158		Kit - Door Conversion - White		Appelez-nous	-
	790215		Button - Plug - L.h. Upper Hinge Bearing - Platinum		Appelez-nous	-
	790214		Button - Plug - L.h. Upper Hinge Bearing - Toast		Appelez-nous	-
	790177		Button - Plug - L.h. Upper Hinge Bearing - Harvest		Appelez-nous	-
	790176		Button - Plug - L.h. Upper Hinge Bearing - Avocado		Appelez-nous	-
	790019		Button - Plug - L.h. Upper Hinge Bearing - White		Appelez-nous	-
	790004		Screw - Handle		Appelez-nous	-
	790151		Door - Compartment		Appelez-nous	-
	790015		Tape - Frame To Door		Appelez-nous	-
	790018		Button - Plug - R.h. Handle & Door Stop Mounting Holes - White		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
