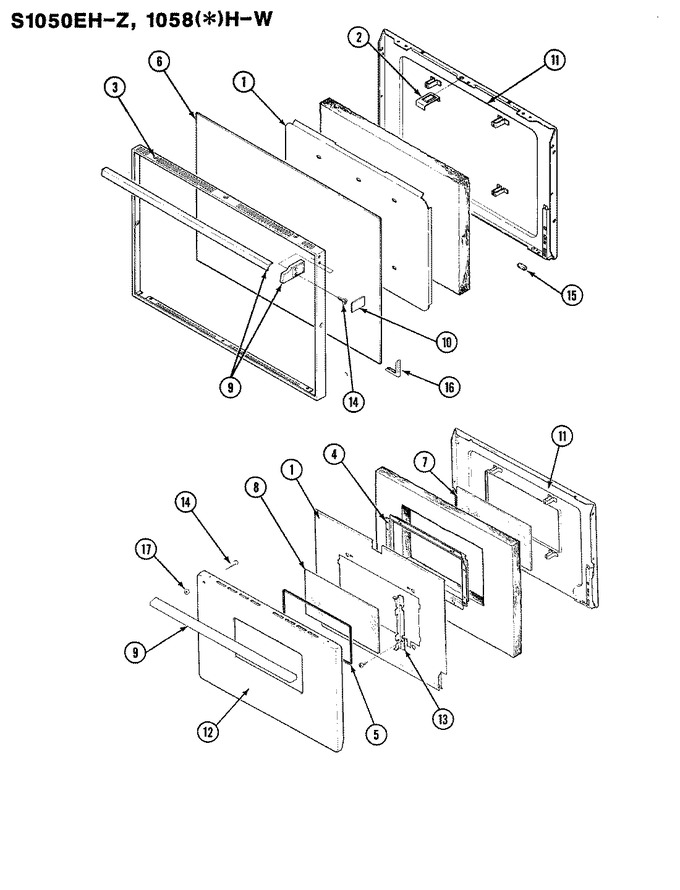

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3802F044-51 | Brace, Drawer | 1 |
|
- | ||||
| 1 | 3601F094-51 | Baffle, Oven Door | 1 |
|
- | ||||
| 1 | 3801F115-51 | Bracket, Drawer | 1 |
|
- | ||||
| 2 | 3405F008-20 | Drawer Assy. | 1 |
|
- | ||||
| 3 | 7706P178-60 | Frame, Door | 1 |
|
- | ||||
| 4 | 3603F013-80 | Frame, Window----na | 1 |
|
- | ||||
| 5 | 7201P017-60 | Gasket, Window | 1 |
|
$ 52.69 | ||||
| 7 | 7902P035-60 | Glass, Door Inner | 1 |
|
- | ||||
| 8 | 8016P005-60 | Glide, Front | 1 |
|
- | ||||
| 8 | 7902P051-60 | Glass | 1 |
|
- | ||||
| 8 | 8016P004-60 | Glide, Drawer | 1 |
|
- | ||||
| 9 | 7701P012-60 | Handle, Drawer (chr) | 1 |
|
- | ||||
| 9 | 7701P030-60 | Handle, Door (chr) | 1 |
|
- | ||||
| 11 | 2402W091-23 | Lining Assy, Ov Dr | 1 |
|
- | ||||
| 12 | 3406F007-80 | Runner, Outer | 1 |
|
- | ||||
| 12 | 3406F020-80 | Runner, Inner | 1 |
|
- | ||||
| 12 | 2401F042-74 | Panel, Door (alm) |
|
- | |||||
| 12 | 2416F017-74 | Panel, Storage Drawer Alm |
|
- | |||||
| 12 | 2416F019-70 | Panel, Svr Drawer Black | 1 |
|
- | ||||
| 13 | 3804F050-80 | Retainer | 1 |
|
- | ||||
| 14 | 7101P225-60 | Screw, Svc Door | 1 |
|
- | ||||
| 14 | WP3387230 | Screw, Clamp (Replaces: 7101P080-60) | 1 |
|
Immediately | $ 7.69 | |||
| 15 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 1 |
|
$ 11.95 | ||||
| 17 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 1 |
|
$ 16.55 | ||||
| 17 | 8019P002-60 | Strap | 1 |
|
- | ||||
| 17 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 17 | 8010P002-60 | Spacer, Handle | 1 |
|
- | ||||
| 17 | 3807F176-13 | Support | 1 |
|
- |
