View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Door Parts
04 - Body Parts
05 - Gas Control
06 - Broiler Drawer And Door Parts
07 - Door Parts
SELECT A DIAGRAM
New Model Search:

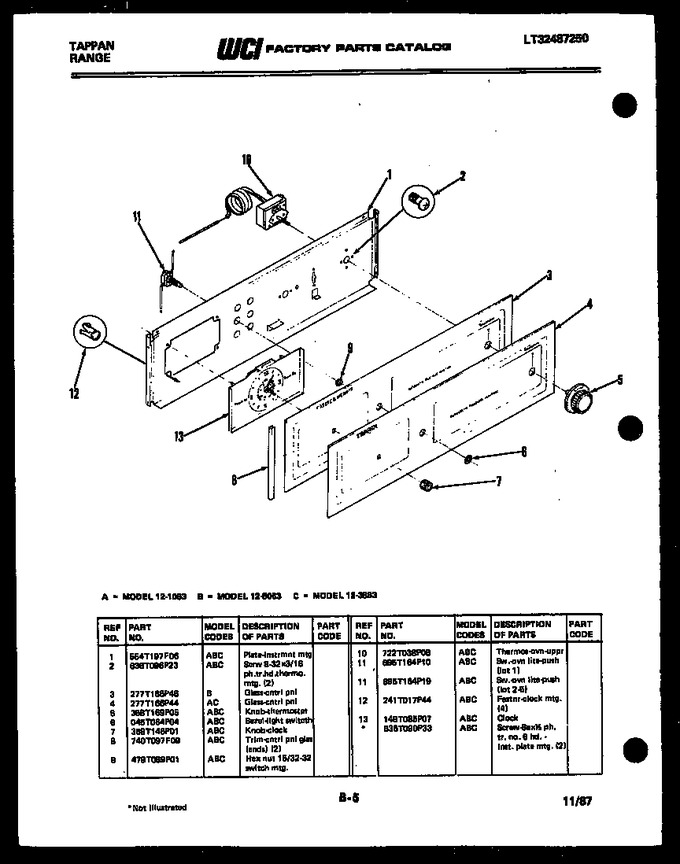

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 554T197F06 | Plate-instrmnt Mtg |
|
- | |||||
| 2 | 636T096P23 | Scrw 8-32 X 3/16 Ph. Tr. Hd. Thermo. Mtg. (2) |
|
- | |||||
| 3 | 277T166P46 | Glass-cntrl Pnl |
|
- | |||||
| 5 | 358T169P05 | Knob-thermostat |
|
- | |||||
| 6 | 045T064P04 | Bezel-light Switch |
|
- | |||||
| 7 | 358T146P01 | Knob-clock |
|
- | |||||
| 8 | 740T097F09 | Trim-cntrl Pnl Glas (ends) (2) |
|
- | |||||
| 9 | 479T089P01 | Hex Nut 15/32-32 Switch Mtg. |
|
- | |||||
| 10 | 722T038P08 | Thermos-ovn-uppr |
|
- | |||||
| 11 | 695T164P10 | Sw.-ovn Lite-push (lot 1) |
|
- | |||||
| 11 | 695T164P19 | Sw.-ovn Lite-push (lot 2-5) |
|
- | |||||
| 12 | 241T017P44 | Fastnr-clock Mtg. (4) |
|
- | |||||
| 13 | 148T085P07 | Clock |
|
- | |||||
| *81262 | 636T090P33 | Screw-8a X 1/2 Ph. Tr. No. 6 Hd. Inst. Plate Mtg. (2) |
|
- |
