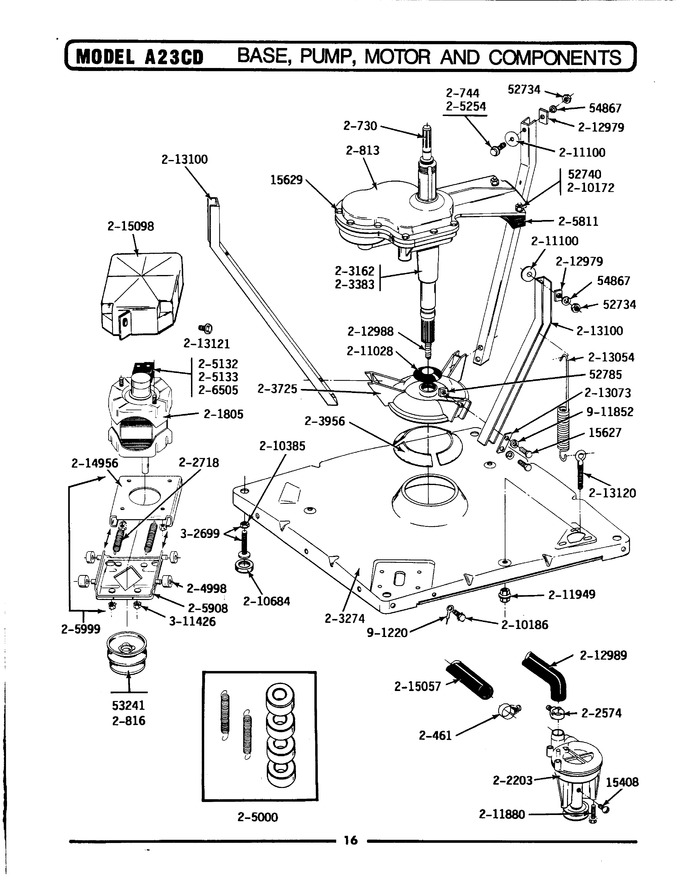

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP3390631 | Screw, Bearing Insert (Replaces: Y015408) | 00 |
|
$ 7.04 | ||||
| 002 | Y015627 | Screw, Hex Hd Cap 5/16 X 5/8 | 00 |
|
$ 8.15 | ||||
| 003 | Y015629 | Bolt, Grinding Chamber (drain) | 00 |
|
- | ||||
| 004 | Y052734 | Nut, Brace (tub) | 00 |
|
- | ||||
| 005 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 | ||||
| 006 | Y052785 | Nut, Brace (damper) | 00 |
|
- | ||||
| 007 | Y053241 | Set Screw, Pulley | 00 |
|
- | ||||
| 008 | Y054867 | Washer, Lock | 00 |
|
- | ||||
| 009 | WP285655 | Hose Clamp - 1-5/8 Inch (Replaces: 200461) | 00 |
|
Immediately | $ 7.55 | |||
| 010 | 200730 | Agitator Shaft | 00 |
|
- | ||||
| 011 | W10175939 | Bolt & Gasket Assy.(short) (Replaces: 200744) | 00 |
|
$ 7.79 | ||||
| 012 | NLA | Gear Case Cover Assembly | 00 |
|
- | ||||
| 013 | 200816 | Pulley, Motor (w/set Screw) | 00 |
|
- | ||||
| 014 | 12002351 | Motor (one Speed) (Replaces: 201805) | 00 |
|
Immediately | $ 170.98 | |||
| 015 | 202203 | Pump As Pak | 00 |
|
- | ||||
| 016 | WP3367052 | Clamp, Hose (Replaces: 202574) | 00 |
|
$ 7.49 | ||||
| 017 | 202718 | Tension Springs | 00 |
|
Immediately | $ 200.35 | |||
| 018 | NLA | Gear Housing W/studs & Tube | 00 |
|
- | ||||
| 019 | 203274 | Base W/damper Pads | 00 |
|
- | ||||
| 020 | 203383 | Trans & Center Assy. (reg) | 00 |
|
- | ||||
| 021 | 1N4004 | Damper W/bolt & Clip (Replaces: 203725) | 00 |
|
- | ||||
| 022 | 203956 | Damper Pad Kit (w/poly Lube) | 00 |
|
Immediately | $ 47.33 | |||
| 023 | 205000 | Glide Kit (4 W/poly Lube) (Replaces: Y204998) | 00 |
|
$ 62.00 | ||||
| 024 | 205000 | Glide & Spring Kit | 00 |
|
$ 62.00 | ||||
| 025 | 205132 | Switch, Motor Start | 00 |
|
- | ||||
| 026 | NLA | Motor External Start Switch | 00 |
|
- | ||||
| 027 | W10175938 | Bolt & Gasket Assembly (long) (Replaces: 205254) | 00 |
|
Immediately | $ 7.00 | |||
| 028 | NLA | Counterweight | 00 |
|
- | ||||
| 029 | 205908 | Lower Motor Mount | 00 |
|
- | ||||
| 030 | 205999 | Motor Mount Assy. Complete | 00 |
|
$ 61.84 | ||||
| 031 | NLA | Switch, Motor Start----n | 00 |
|
- | ||||
| 032 | NLA | Lock Washer | 00 |
|
- | ||||
| 033 | WP489128 | Screw, Ground Wire (base) (Replaces: 210186) | 00 |
|
$ 9.79 | ||||
| 034 | WP210385 | Nut, Lock (Replaces: 210385) | 00 |
|
$ 6.26 | ||||
| 035 | WP210684 | Foot, Rubber (Replaces: 210684) | 00 |
|
Immediately | $ 14.09 | |||
| 036 | 211028 | Deflector,water (drive Tube) | 00 |
|
- | ||||
| 037 | 211100 | Washer, Cushion | 00 |
|
- | ||||
| 038 | WPY014874 | Screw, Hex Hd No.10 X 1/2 Inc (Replaces: 211880) | 00 |
|
$ 6.98 | ||||
| 039 | WP211949 | Nut, Eyebolt (Replaces: 211949) | 00 |
|
$ 6.88 | ||||
| 040 | 212979 | Washer, Tub Brace | 00 |
|
$ 91.61 | ||||
| 041 | 212988 | Center Shaft | 00 |
|
- | ||||
| 042 | WPY212989 | Hose, Outer Tub (pump) (Replaces: Y212989) | 00 |
|
Immediately | $ 46.51 | |||
| 043 | 213054 | Centering Spring - 3 Used | 00 |
|
- | ||||
| 044 | 213073 | Washer, Dble. (brace-damper) | 00 |
|
- | ||||
| 045 | 213100 | Brace, Tub | 00 |
|
- | ||||
| 046 | W11129403 | Eye Bolt, Center Spring (Replaces: 213120) | 00 |
|
$ 12.23 | ||||
| 047 | WPW10346892 | Screw (Replaces: 213121) | 00 |
|
Immediately | $ 6.47 | |||
| 048 | 214956 | Plate, Motor Mt. (upper) | 00 |
|
- | ||||
| 049 | 215057 | Drain Hose | 00 |
|
- | ||||
| 050 | 215098 | Shield, Motor | 00 |
|
- | ||||
| 051 | 22003428 | Leg, Adjustable (w/nut)---s (Replaces: Y302699) | 00 |
|
Immediately | $ 14.41 | |||
| 052 | WP3400029 | Keps Nut, Mtr.base (base Frm.) (Replaces: Y311426) | 00 |
|
Immediately | $ 6.98 | |||
| 053 | 901220 | Wire, Ground | 00 |
|
- | ||||
| 054 | 911852 | Washer, Lock (brace) | 00 |
|
- |
