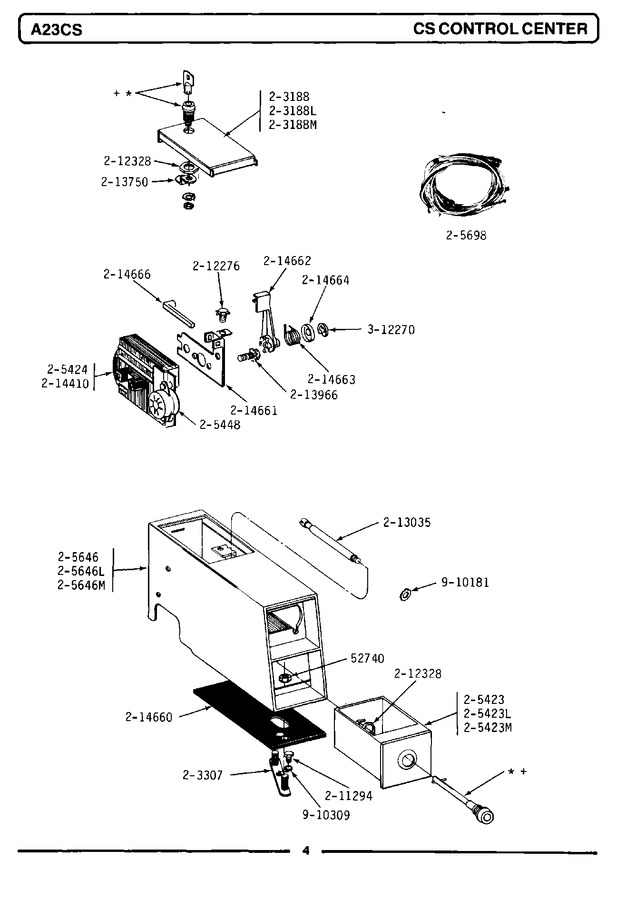

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 205426 | Timer & Actuator Assembly | 00 |
|
- | ||||
| 002 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 | ||||
| 003 | 203188 | Door, Access (wht) | 00 |
|
- | ||||
| 004 | 203188L | Access Door-almond | 00 |
|
- | ||||
| 005 | NLA | Mtg. Strap----na | 00 |
|
- | ||||
| 006 | 208883 | Coin Box-white (Replaces: 205423) | 00 |
|
- | ||||
| 007 | 208883 | Coin Box-almond (Replaces: 205423L) | 00 |
|
- | ||||
| 008 | 205424 | Timer | 00 |
|
- | ||||
| 009 | 205426 | Timer & Actuator Assembly | 00 |
|
- | ||||
| 010 | 205448 | Timer Motor 120-60 | 00 |
|
- | ||||
| 011 | 205646 | Outer Case-white | 00 |
|
- | ||||
| 012 | 205646L | Outer Case-almond | 00 |
|
- | ||||
| 013 | 205698 | Main Wire Harness | 00 |
|
- | ||||
| 014 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 015 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 016 | W11395752 | Nut, Hex (Replaces: 212328) | 00 |
|
$ 11.74 | ||||
| 017 | 213035 | Bolt, Locking | 00 |
|
$ 5.84 | ||||
| 018 | W11165684 | Locking Cam (Replaces: 213750) | 00 |
|
$ 8.20 | ||||
| 019 | WP3400014 | Screw-timer To Control Pane (Replaces: 213966) | 00 |
|
$ 6.98 | ||||
| 020 | 214410 | Timer Caution Label | 00 |
|
- | ||||
| 021 | 214660 | Gasket, Meter Case | 00 |
|
- | ||||
| 022 | 214661 | Bracket For Timer | 00 |
|
- | ||||
| 023 | 214662 | Pivot Arm For Timer | 00 |
|
- | ||||
| 024 | 214663 | Spring For Timer Lever | 00 |
|
- | ||||
| 025 | 214664 | Spring Retainer For Timer | 00 |
|
- | ||||
| 026 | 214666 | Arm, Actuator | 00 |
|
- | ||||
| 027 | Y312270 | E Clip | 00 |
|
- | ||||
| 028 | 910181 | Lock Washer | 00 |
|
- | ||||
| 029 | 910309 | Washer | 00 |
|
- |
