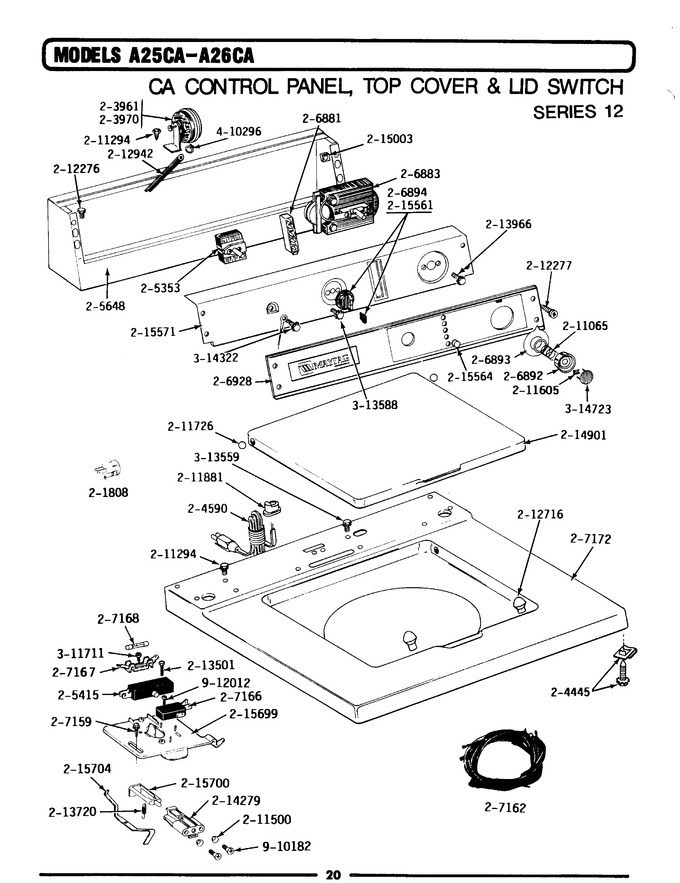

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | Y201808 | Converter | 12 |
|
- | ||||
| 002 | 203961 | Part Not Used | 12 |
|
- | ||||
| 003 | 203970 | Switch | 12 |
|
$ 72.19 | ||||
| 004 | 204445 | Screw & Fastener Asy. | 12 |
|
- | ||||
| 005 | 204590 | Power Cord | 12 |
|
$ 61.20 | ||||
| 006 | COMM PART | Switch, Temp. (Replaces: 205353) | 12 |
|
- | ||||
| 007 | W10820036 | Switch, Lid (w/o Tub Light) (Replaces: 205415) | 12 |
|
Immediately | $ 27.45 | |||
| 008 | 205448 | Timer Motor 120-60 | 12 |
|
- | ||||
| 009 | NLA | Console-white | 12 |
|
- | ||||
| 010 | 206881 | Indicator, 5 Light 115v | 12 |
|
$ 96.51 | ||||
| 011 | NLA | Timer | 12 |
|
- | ||||
| 012 | 206892 | Control Knob | 12 |
|
$ 9.04 | ||||
| 013 | 206893 | Skirt, Timer Dial | 12 |
|
- | ||||
| 014 | 206894 | Knob W/bump | 12 |
|
- | ||||
| 015 | 206928 | Control Panel W/lens | 12 |
|
- | ||||
| 016 | W11233072 | Screw (Replaces: 207159) | 12 |
|
Immediately | $ 12.62 | |||
| 017 | NLA | Wire Harness | 12 |
|
- | ||||
| 018 | WP207166 | Switch, Check (Replaces: 207166) | 12 |
|
Immediately | $ 51.86 | |||
| 019 | 207167 | Block, Fuse | 12 |
|
$ 28.66 | ||||
| 020 | 207168 | Fuse | 12 |
|
- | ||||
| 021 | NLA | Top Cover | 12 |
|
- | ||||
| 022 | 211065 | Spring, Timer Knob | 12 |
|
$ 5.70 | ||||
| 023 | WP90767 | Screw (Replaces: 211294) | 12 |
|
Immediately | $ 7.04 | |||
| 024 | 211500 | Washer, Bracket | 12 |
|
- | ||||
| 025 | 211605 | Retainer, Timer Knob | 12 |
|
- | ||||
| 026 | WP211726 | Hinge, Ball (Replaces: 211726) | 12 |
|
Immediately | $ 7.18 | |||
| 027 | 211881 | Grommet, Cord | 12 |
|
- | ||||
| 028 | WP90767 | Screw (Replaces: 212276) | 12 |
|
Immediately | $ 7.04 | |||
| 029 | WP1163283 | Screw, No.8 X 1/2 Inch (Replaces: 212277) | 12 |
|
$ 6.47 | ||||
| 030 | WP212716 | Bumper, Lid (Replaces: 212716) | 12 |
|
Immediately | $ 7.88 | |||
| 031 | WP22001619 | Air Dome & Tube (Replaces: 212942) | 12 |
|
$ 75.73 | ||||
| 032 | 213501 | Screw, No.6-20 X 1-1/8 Inch | 12 |
|
$ 12.03 | ||||
| 033 | WP213720 | Spring (Replaces: 213720) | 12 |
|
$ 7.63 | ||||
| 034 | WP3400014 | Screw, Timer (Replaces: 213966) | 12 |
|
$ 6.98 | ||||
| 035 | 214279 | Bracket, Lid Switch Plunge | 12 |
|
- | ||||
| 036 | 214901 | Lid (wht) | 12 |
|
- | ||||
| 037 | 215003 | Fastener | 12 |
|
- | ||||
| 038 | 215561 | Lid Bumper | 12 |
|
- | ||||
| 039 | WP215564 | Lens, Indicator (amber) (Replaces: 215564) | 12 |
|
Immediately | $ 7.14 | |||
| 040 | 215571 | Backup Plate (wht) | 12 |
|
- | ||||
| 041 | 22001678 | Bracket,switch & Fuse (Replaces: Y215699) | 12 |
|
$ 28.61 | ||||
| 042 | NLA | Lid Switch Plunger | 12 |
|
- | ||||
| 043 | 215704 | Unbalance Lever | 12 |
|
- | ||||
| 044 | Y311711 | Screw | 12 |
|
- | ||||
| 045 | WP90767 | Screw (Replaces: Y313559) | 12 |
|
Immediately | $ 7.04 | |||
| 046 | WP488234 | Screw (Replaces: Y313588) | 12 |
|
$ 6.07 | ||||
| 047 | Y314322 | Screw, No.8-32 X 3/8 Inch | 12 |
|
- | ||||
| 048 | WPW10133501 | Cap, Timer Knob (Replaces: 314723) | 12 |
|
$ 54.76 | ||||
| 049 | W10756178 | Screw (Replaces: 910182) | 12 |
|
$ 5.39 | ||||
| 050 | 912012 | Screw | 12 |
|
- |
