SELECT A DIAGRAM

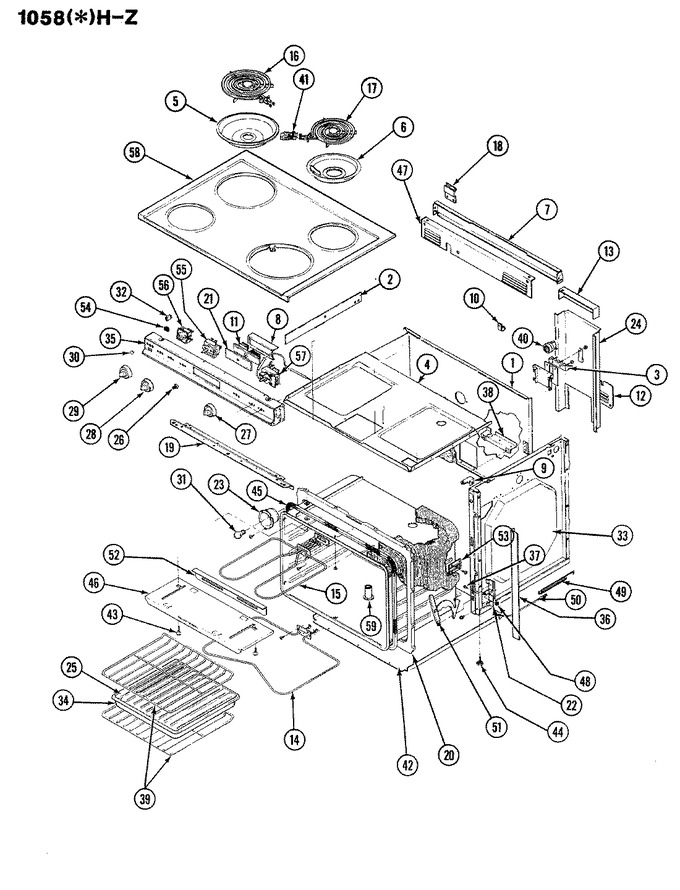

01 - Body
02 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F092-80 | Back, Main | 1 |
|
- | ||||
| 2 | 3601F106-51 | Baffle, Side Panel | 1 |
|
- | ||||
| 3 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 1 |
|
Immediately | $ 31.65 | |||
| 4 | 4011F082-23 | Box, Burner | 1 |
|
- | ||||
| 5 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P001-60) | 1 |
|
Immediately | $ 15.56 | |||
| 6 | 3802F003-80 | Brace | 1 |
|
- | ||||
| 6 | WPW10196406 | Bowl, Drip (6``) (Replaces: 7725P002-60) | 1 |
|
Immediately | $ 12.05 | |||
| 7 | 3802F071-80 | Brace, Main Top | 1 |
|
- | ||||
| 8 | 3801F113-51 | Bracket, Clock Mtg | 1 |
|
- | ||||
| 9 | 3818F022-51 | Channel, Wire Side | 1 |
|
- | ||||
| 9 | 3801F047-34 | Bracket,control Panel (r) | 1 |
|
- | ||||
| 9 | 3801F049-34 | Bracket,control Panel (l) | 1 |
|
- | ||||
| 9 | 3818F021 | Channel, Wire Rear | 1 |
|
- | ||||
| 10 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 10 | 7111P002-60 | Clamp, Wire 3/4 | 1 |
|
- | ||||
| 11 | 7602P051-60 | Clock | 1 |
|
- | ||||
| 12 | 4005F028-80 | Cover, Bkgd Wire | 1 |
|
- | ||||
| 12 | 4005F013-80 | Shield | 1 |
|
- | ||||
| 13 | 4005F082-80 | Cover, Housing | 1 |
|
- | ||||
| 14 | WPY04000041 | Element,bake (Replaces: 7406P010-60) | 1 |
|
$ 133.20 | ||||
| 15 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 1 |
|
$ 160.58 | ||||
| 16 | WPY04000035 | Element, Giant Surface (Replaces: 7406P014-60) | 1 |
|
$ 160.60 | ||||
| 17 | WPY04000036 | Element, Std. Surface (Replaces: 7406P017-60) | 1 |
|
$ 88.70 | ||||
| 18 | 7706P170-60 | Hinge, Main Top | 1 |
|
- | ||||
| 18 | 7706P009-60 | Filler, Strip | 1 |
|
- | ||||
| 19 | 4012F013-80 | Front, Burner Box | 1 |
|
- | ||||
| 20 | 2201F060-23 | Front, Oven Upper | 1 |
|
- | ||||
| 21 | 7902P034-60 | Glass | 1 |
|
- | ||||
| 22 | 3418F030-34 | Hinge, Oven Door (rt) | 1 |
|
- | ||||
| 22 | 3418F029-34 | Hinge, Oven Door (lt) | 1 |
|
- | ||||
| 23 | 4001F016-23 | Housing, Lamp | 1 |
|
- | ||||
| 24 | 4001F034-80 | Housing, Main Wire | 1 |
|
- | ||||
| 25 | 3413F002-23 | Insert, Broil Pan | 1 |
|
- | ||||
| 26 | 7711P126-60 | Knob, Clock | 1 |
|
- | ||||
| 27 | 7735P016-60 | Knob, Thermostat | 1 |
|
- | ||||
| 28 | 7739P019-60 | Knob, Selector | 1 |
|
- | ||||
| 29 | 7737P015-60 | Knob, Surface Switch | 1 |
|
- | ||||
| 30 | 7730P001-60 | Lens, Signal Lamp | 1 |
|
- | ||||
| 31 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 32 | 7407P017-60 | Lamp, Signal | 1 |
|
- | ||||
| 33 | 4009W040-80 | Lining, Inner Side | 1 |
|
- | ||||
| 34 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 1 |
|
Immediately | $ 52.04 | |||
| 35 | 7722A076-60 | Panel, Upper Front Trim | 1 |
|
- | ||||
| 36 | 2618F045-80 | Panel, Side Angle | 1 |
|
- | ||||
| 37 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 38 | 3605F031-80 | Plate, Conduit | 1-23 |
|
- | ||||
| 38 | 3605F148-80 | Plate, Conduit | 24 |
|
- | ||||
| 38 | 7719P021-60 | Plate, Name | 1 |
|
- | ||||
| 38 | W10124350 | Not Required Part Or See Note | 1-23 |
|
- | ||||
| 38 | 3605F146-51 | Plate, Conduit Reinforcement | 24 |
|
$ 6.06 | ||||
| 38 | 3605F085 | Plate, Locator | 1 |
|
- | ||||
| 39 | 7801P030-60 | Rack, Oven | 1 |
|
$ 57.14 | ||||
| 40 | 7408P002-60 | Receptacle, Lamp | 1 |
|
- | ||||
| 41 | 330031 | Block, Surface Unit (Replaces: 7401P014-60) | 1 |
|
Immediately | $ 14.48 | |||
| 42 | 3804F093-80 | Retainer, Bottom Ins. | 1 |
|
- | ||||
| 43 | WP7101P126-60 | Screw (Replaces: 7101P057-60) | 24 |
|
Immediately | $ 6.85 | |||
| 43 | 7101P005-60 | Screw | 1 |
|
- | ||||
| 43 | W10124350 | Not Required Part Or See Note | 1-23 |
|
- | ||||
| 44 | 7101P101-60 | Screw, Thermostat | 1 |
|
- | ||||
| 44 | WP74004005 | Screw (Replaces: 7101P260-60) | 1 |
|
$ 6.95 | ||||
| 44 | 7101P255-60 | Screw, Leveling | 1 |
|
- | ||||
| 44 | 7101P102-60 | Screw, Inf Switch | 1 |
|
- | ||||
| 45 | 7212P002-60 | Seal, Oven | 1 |
|
- | ||||
| 46 | 3604F092-45 | Shield, Broil | 1 |
|
- | ||||
| 47 | 3604F017-45 | Shield | 1 |
|
- | ||||
| 47 | 3604F066-51 | Shield | 1 |
|
- | ||||
| 47 | 3604F056-80 | Shield, Housing | 1 |
|
- | ||||
| 48 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 49 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 1 |
|
$ 16.55 | ||||
| 50 | 8019P002-60 | Strap | 1 |
|
- | ||||
| 50 | WPW10339879 | Strap, Tube (Replaces: 8019P003-60) | 1 |
|
$ 7.11 | ||||
| 51 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 52 | 3807F176-15 | Support, Broil Element | 1 |
|
- | ||||
| 53 | 3807F205-45 | Support, Oven Rear | 1 |
|
- | ||||
| 54 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 1 |
|
$ 91.35 | ||||
| 55 | 7403P031-60 | Switch, Selector | 1 |
|
- | ||||
| 56 | W11122006 | Switch, Inf. Control (Replaces: 7403P168-60) | 1 |
|
$ 145.12 | ||||
| 57 | 7404P029-60 | Thermostat | 1 |
|
- | ||||
| 58 | 2002W049-97 | Top Assy, Main Avoc Nla In Pro | 1 |
|
- | ||||
| 58 | 2002W049-98 | Top Assy, Main Copper | 1 |
|
- | ||||
| 58 | 2002W049-91 | Top Assy, Main White | 1 |
|
- | ||||
| 58 | 2002W049-94 | Top Assy, Main Alm | 1 |
|
- | ||||
| 58 | 2002W049-96 | Top Assy, Main Hvt Wht | 1 |
|
- | ||||
| 59 | 8026P001-60 | Tube | 1 |
|
- |
