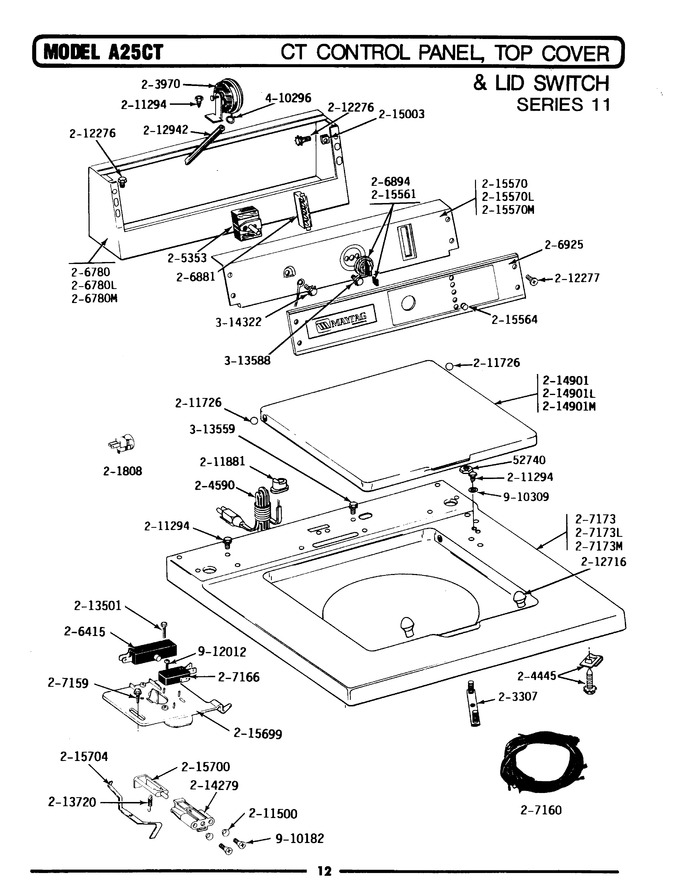

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP62739 | Nut (Replaces: Y052740) | 11 |
|
$ 6.85 | ||||
| 002 | Y201808 | Converter | 11 |
|
- | ||||
| 003 | NLA | Mtg. Strap----na | 11 |
|
- | ||||
| 004 | 203970 | Switch | 11 |
|
$ 72.19 | ||||
| 005 | 204445 | Screw & Fastener Asy. | 11 |
|
- | ||||
| 006 | 204590 | Power Cord | 11 |
|
$ 61.20 | ||||
| 007 | 204968 | Plunger & Bracket Assembly--w | 11 |
|
$ 26.05 | ||||
| 008 | COMM PART | Switch, Temp. (Replaces: 205353) | 11 |
|
- | ||||
| 009 | 206415 | Lid Switch | 11 |
|
$ 37.51 | ||||
| 010 | 206780 | Control Cover Assy | 11 |
|
- | ||||
| 010 | 206780L | Console (alm) Su | 11 |
|
- | ||||
| 010 | NLA | Control Cover Assy | 11 |
|
- | ||||
| 011 | 206881 | Indicator, 5 Light 115v | 11 |
|
$ 96.51 | ||||
| 012 | NLA | Wire Harness | 11 |
|
- | ||||
| 013 | 206894 | Knob W/bump | 11 |
|
- | ||||
| 014 | NLA | Control Panel With Lens - Cs & | 11 |
|
- | ||||
| 015 | W11233072 | Screw (Replaces: 207159) | 11 |
|
Immediately | $ 12.62 | |||
| 016 | 207160 | Wire Harness | 11 |
|
- | ||||
| 017 | WP207166 | Switch, Check (Replaces: 207166) | 11 |
|
Immediately | $ 51.86 | |||
| 018 | 207173 | Top Cover Assy | 11 |
|
- | ||||
| 018 | NLA | Top Cover Assy Alm | 11 |
|
- | ||||
| 019 | WP90767 | Screw (Replaces: 211294) | 11 |
|
Immediately | $ 7.04 | |||
| 020 | 211500 | Washer,bracke To Top Cover | 11 |
|
- | ||||
| 021 | WP211726 | Hinge, Ball (Replaces: 211726) | 11 |
|
Immediately | $ 7.18 | |||
| 022 | 211881 | Grommet, Cord | 11 |
|
- | ||||
| 023 | WP90767 | Screw (Replaces: 212276) | 11 |
|
Immediately | $ 7.04 | |||
| 024 | WP1163283 | Screw, No.8 X 1/2 Inch (Replaces: 212277) | 11 |
|
$ 6.47 | ||||
| 025 | WP212716 | Bumper, Lid (Replaces: 212716) | 11 |
|
Immediately | $ 7.88 | |||
| 026 | WP22001619 | Air Dome And Tube (Replaces: 212942) | 11 |
|
$ 75.73 | ||||
| 027 | 213501 | Screw, No.6-20 X 1-1/8 Inch | 11 |
|
$ 12.03 | ||||
| 028 | 213718 | Lid Switch Plunger | 11 |
|
$ 12.10 | ||||
| 029 | WP213720 | Spring (Replaces: 213720) | 11 |
|
$ 7.63 | ||||
| 030 | 214279 | Bracket F/lid Switch Plunge | 11 |
|
- | ||||
| 031 | 214805 | Pin For Unbalance Lever | 11 |
|
- | ||||
| 032 | 214813 | Lever For Lid Switch | 11 |
|
- | ||||
| 033 | 214898 | Cover For Lid Switch | 11 |
|
- | ||||
| 034 | 214901 | Lid-white | 11 |
|
- | ||||
| 034 | NLA | Lid-almond | 11 |
|
- | ||||
| 035 | 214987 | Moisture Barrier For Switch | 11 |
|
- | ||||
| 036 | 215003 | Fastener | 11 |
|
- | ||||
| 037 | 215236 | Unbalance Lever | 11 |
|
- | ||||
| 038 | 215561 | Lid Bumper | 11 |
|
- | ||||
| 039 | WP215564 | Lens, Indicator (amber) (Replaces: 215564) | 11 |
|
Immediately | $ 7.14 | |||
| 040 | 215570 | Backup Plate - White | 11 |
|
- | ||||
| 040 | NLA | Plate, Backup (alm) | 11 |
|
- | ||||
| 041 | 22001678 | Bracket,switch & Fuse (Replaces: Y215699) | 11 |
|
$ 28.61 | ||||
| 042 | NLA | Lid Switch Plunger | 11 |
|
- | ||||
| 043 | 215704 | Unbalance Lever | 11 |
|
- | ||||
| 044 | WP90767 | Screw (Replaces: Y313559) | 11 |
|
Immediately | $ 7.04 | |||
| 045 | WP488234 | Screw (Replaces: Y313588) | 11 |
|
$ 6.07 | ||||
| 046 | Y314322 | Screw, No.8-32 X 3/8 Inch | 11 |
|
- | ||||
| 047 | WP596669 | Clamp,water Level Swtch Tube (Replaces: 410296) | 11 |
|
Immediately | $ 7.56 | |||
| 048 | 410635 | Fastener | 11 |
|
- | ||||
| 049 | W10756178 | Screw (Replaces: 910182) | 11 |
|
$ 5.39 | ||||
| 050 | 910309 | Washer | 11 |
|
- | ||||
| 051 | 911267 | Screw, Pump Cover | 11 |
|
- | ||||
| 052 | 912012 | Screw | 11 |
|
- |
