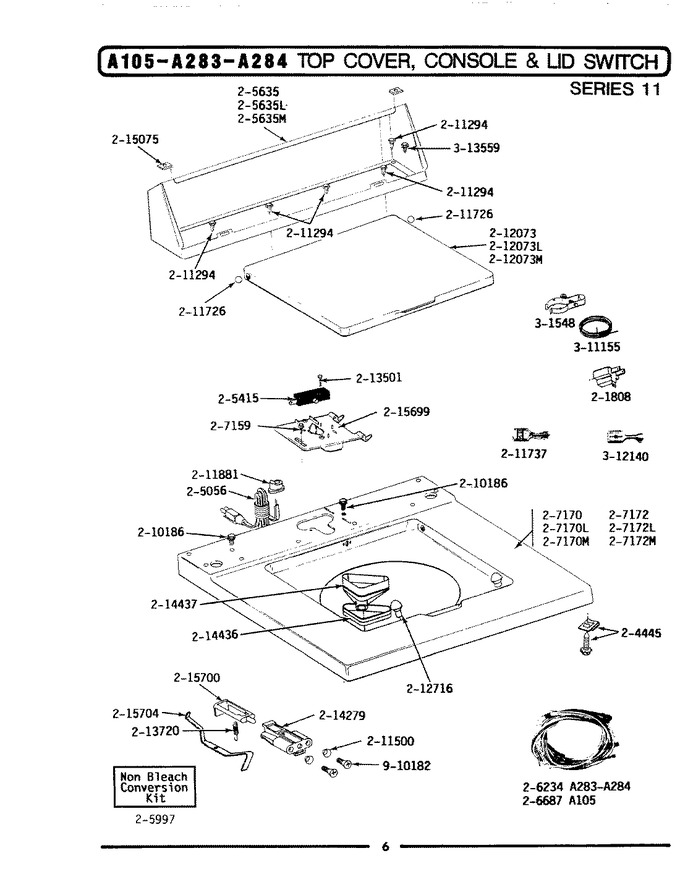

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y201808 | Converter | 11 |
|
- | ||||
| 2 | 204445 | Screw & Fastener Asy. | 11 |
|
- | ||||
| 3 | 205056 | Cord, Power | 11 |
|
- | ||||
| 4 | W10820036 | Switch, Lid (w/o Tub Light) (Replaces: 205415) | 11 |
|
Immediately | $ 27.45 | |||
| 5 | 205635 | Console (wht) | 11 |
|
- | ||||
| 8 | 205997 | Non-bleach Conversion Kit | 11 |
|
- | ||||
| 9 | 206234 | Wire Harness | 11 |
|
- | ||||
| 10 | W11233072 | Screw (Replaces: 207159) | 11 |
|
Immediately | $ 12.62 | |||
| 11 | 207170 | Top Cover | 11 |
|
- | ||||
| 14 | WP489128 | Screw, Ground Wire To Base--na (Replaces: 210186) | 11 |
|
$ 9.79 | ||||
| 15 | WP90767 | Screw (Replaces: 211294) | 11 |
|
Immediately | $ 7.04 | |||
| 16 | 211500 | Washer,bracke To Top Cover | 11 |
|
- | ||||
| 17 | WP211726 | Hinge, Ball (Replaces: 211726) | 11 |
|
Immediately | $ 7.18 | |||
| 18 | WP248562 | Wire Connector (Replaces: 211737) | 11 |
|
$ 6.95 | ||||
| 19 | 211881 | Grommet, Cord | 11 |
|
- | ||||
| 20 | 212073 | Lid-white | 11 |
|
- | ||||
| 23 | WP212716 | Bumper, Lid (Replaces: 212716) | 11 |
|
Immediately | $ 7.88 | |||
| 24 | 213501 | Screw, No.6-20 X 1-1/8 Inch | 11 |
|
$ 12.03 | ||||
| 25 | WP213720 | Spring (Replaces: 213720) | 11 |
|
$ 7.63 | ||||
| 26 | 214279 | Bracket F/lid Switch Plunge | 11 |
|
- | ||||
| 27 | 214436 | Gasket | 11 |
|
- | ||||
| 29 | 215075 | Fastener,cntrl Pnl To Console | 11 |
|
$ 4.83 | ||||
| 30 | 22001678 | Bracket,switch & Fuse (Replaces: Y215699) | 11 |
|
$ 28.61 | ||||
| 31 | 215700 | Lid Switch Plunger | 11 |
|
- | ||||
| 32 | 215704 | Unbalance Lever | 11 |
|
- | ||||
| 33 | 301548 | Clamp, Ground (w/screw) | 11 |
|
- | ||||
| 34 | 311155 | Ground Wire | 11 |
|
$ 8.77 | ||||
| 35 | Y312140 | Wire Connector | 11 |
|
- | ||||
| NI | WP90767 | Screw (Replaces: Y313559) | 11 |
|
Immediately | $ 7.04 | |||
| NI | W10756178 | Screw (Replaces: 910182) | 11 |
|
$ 5.39 |
