02 - Cabinet Parts


03 - Console And Control Parts


04 - Pump, Water Valve, Water Inlet

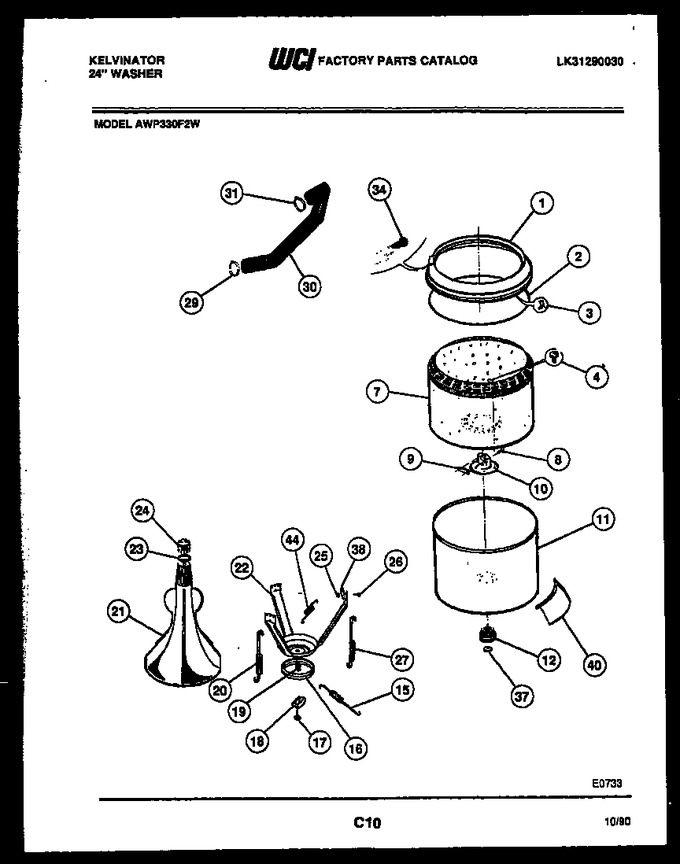

05 - Tub Detail


06 - Transmission Parts


07 - Portable Washer Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	F142025-000		Cover-splash Tub		Appelez-nous	-
2	F078611-100		Seal		Appelez-nous	-
3	F079975-000		Speed Clip (8)		Appelez-nous	-
4	F142055-000		Screw (5)		Appelez-nous	-
7	F142026-000		Spin Tub Assembly (consists Of Spin Tub With Spin Tub Co		Appelez-nous	-
8	137539500		Screw (2)   (Replaces: F142056-000)				$ 20.24
9	F140603-000		Lockplate		Appelez-nous	-
10	F140604-100		Trunnion		Appelez-nous	-
11	F141744-000		Splash Tub & Bearing Assembly		Appelez-nous	-
12	F140581-000		Tub Bearing Assembly (consists Of Tub Bearing Assembly &		Appelez-nous	-
15	F078135-000		Spring Horizontal (2)		Appelez-nous	-
16	F130789-000		Snubber Ring		Appelez-nous	-
17	F137203-000		Screw-shipping		Appelez-nous	-
18	F077075-000		Block-shipping		Appelez-nous	-
19	F077074-000		Nut-expansion		Appelez-nous	-
20	F137997-100		Spring-short Vertical		Appelez-nous	-
21	F141970-000		Agitator		Appelez-nous	-
22	F079630-000		Leg & Dome Assembly		Appelez-nous	-
23	F073565-000		Gasket		Appelez-nous	-
24	F131203-100		Agitator Cap		Appelez-nous	-
25	F054287-000		Keps Nut (6)		Appelez-nous	-
26	F063532-000		Screw (6)		Appelez-nous	-
27	F137997-000		Spring-long Vertical (2)		Appelez-nous	-
29	F064154-003		Clamp-hose		Appelez-nous	-
30	3205937		Hose-water Valve-inlet		Appelez-nous	-
31	F064154-010		Clamp-hose		Appelez-nous	-
34	F142046-000		Check Valve		Appelez-nous	-
37	F132835-000		Thrust Washer		Appelez-nous	-
38	F132729-000		Plate-leg Bolts		Appelez-nous	-
40	F139128-000		Shield-motor (fabricate Locally)		Appelez-nous	-
44	F079837-000		Spring-horizontal-rear		Appelez-nous	-
