02 - Cabinet Parts


03 - Console And Control


04 - Pump, Water Valve, Water Inlet


05 - Tub Detail


06 - Transmission Parts


07 - Portable Washer Components

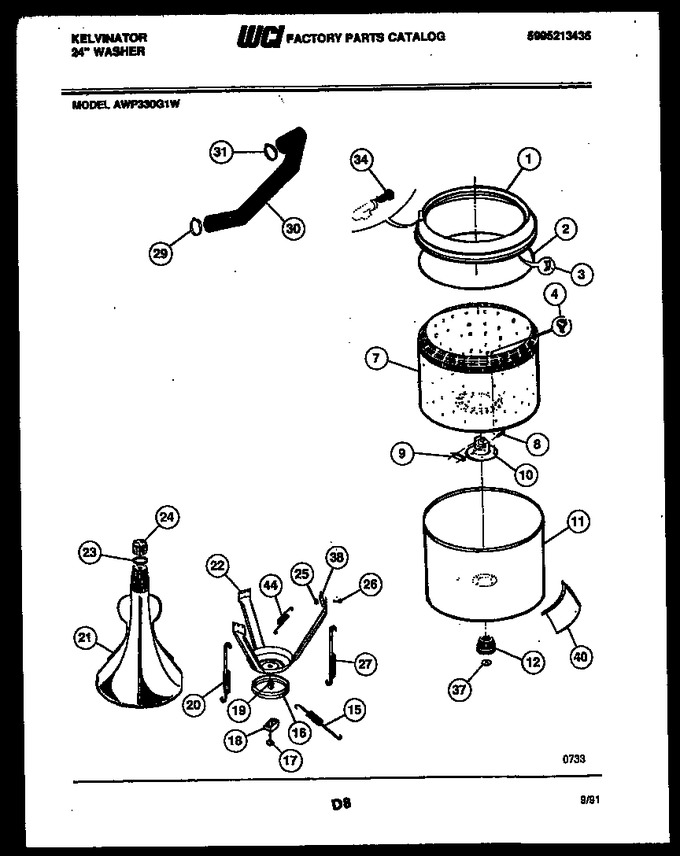

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303207010		Cover-splash Tub		Appelez-nous	-
2	5303161121		Seal		Appelez-nous	-
3	5303161199		Speed Clip (8)				$ 8.93
4	5308027519		Screw (5)				$ 9.33
7	5303161486		Spin Tub Assembly-(consists Of Spin Tub With Spin Cover		Appelez-nous	-
8	137539500		Screw (2)   (Replaces: 5308027517)				$ 20.24
9	137107000		Lockplate   (Replaces: 5308001923)			Immediately	$ 26.94
10	5308014908		Trunnion				$ 141.95
11	5303161127		Splash Tub & Bearing Assembly		Appelez-nous	-
12	5308027536		Tub Bearing Assembly-(consists Of Tub Bearing Assembly &				$ 90.40
15	5308006573		Spring-horizontal (2)				$ 31.33
16	5308002385		Snubber Ring				$ 54.86
17	5303161284		Screw-shipping		Appelez-nous	-
18	5303161202		Block-shipping		Appelez-nous	-
19	3161203		Nut-expansion		Appelez-nous	-
20	5303161131		Spring-short Vertical		Appelez-nous	-
21	5303161485		Agitator		Appelez-nous	-
22	5303161132		Leg & Dome Assembly		Appelez-nous	-
23	5373565000		Gasket				$ 24.59
24	5303161122		Agitator Cap		Appelez-nous	-
25	3161204		Keps Nut (6)		Appelez-nous	-
26	3161205		Screw (6)		Appelez-nous	-
27	5303161133		Spring-long Vertical (2)				$ 47.36
29	5303012110		Clamp-hose				$ 8.14
30	3205937		Hose-water Valve-inlet		Appelez-nous	-
31	5303161206		Clamp-hose		Appelez-nous	-
34	5308027515		Check Valve		Appelez-nous	-
37	5308002401		Thrust Washer			Immediately	$ 16.00
38	5303280322		Plate-leg Bolts		Appelez-nous	-
40	5303280323		Shield-motor-(fabricate Locally)		Appelez-nous	-
44	5303212125		Spring-horizontal-(fabricate Locally)				$ 27.04

    View Diagram in Separate Window       Print Part List
