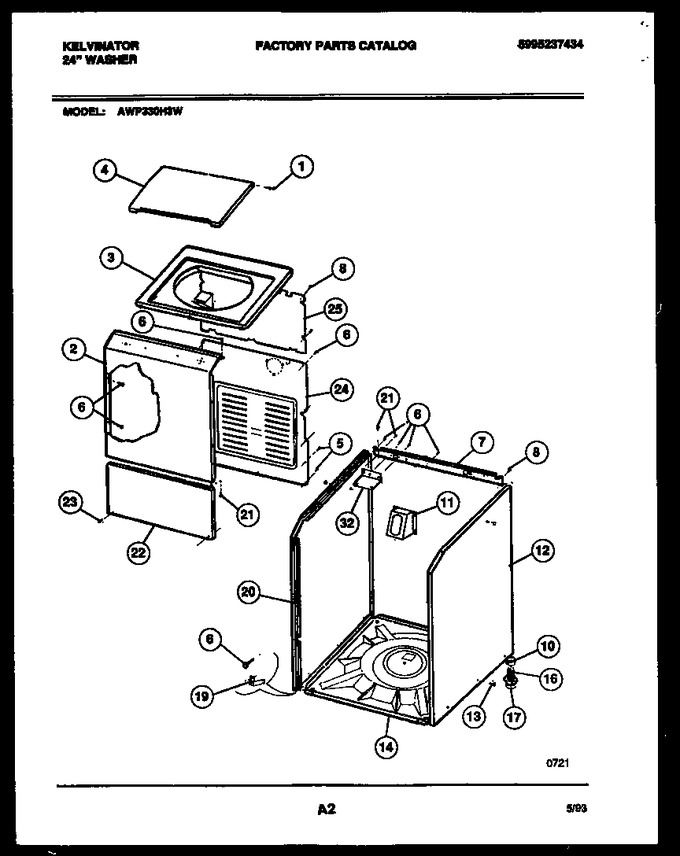

02 - Cabinet Parts
03 - Console And Control Parts
04 - Tub Detail
05 - Motor And Idler Arm Clutch
06 - Transmission Parts
07 - Portable Washer Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3161236 | Screw (2) |
|
- | |||||
| 2 | 5303269879 | Panel-control-almond |
|
- | |||||
| 3 | 3205917 | Panel-top (almond) |
|
- | |||||
| 4 | 3200863 | Lid (almond) |
|
- | |||||
| 5 | 5303015671 | Screw (8) |
|
- | |||||
| 6 | 5303281035 | Screw-control Panel/sides (6) |
|
- | |||||
| 7 | 08027553 | Support-rear Cabinet |
|
- | |||||
| 8 | 5303206864 | Screw-support/side Panels (4) |
|
- | |||||
| 10 | 08027554 | Spacer-leveling Leg (2) |
|
- | |||||
| 11 | 3205918 | Bracket-hose Storage |
|
- | |||||
| 12 | 5303293587 | Panel-rh Side-almd |
|
- | |||||
| 13 | 5308001613 | Screw (6) |
|
- | |||||
| 14 | 131157710 | Base-cabinet |
|
- | |||||
| 16 | 5303272067 | Leveling Leg Package (2)-(consists Of Leveling Leg-cushi |
|
- | |||||
| 17 | 5303004083 | Leg Cushion (2)-(part Of Ref No 16-but May Be Ordered Se |
|
- | |||||
| 19 | 08027560 | Bracket |
|
- | |||||
| 20 | 5303293585 | Panel-lh Side-almond |
|
- | |||||
| 21 | 5303015671 | Sems Screw (4) |
|
- | |||||
| 22 | 5303937067 | Panel-access-almond |
|
- | |||||
| 23 | 08001578 | Chrome Screw (2) |
|
- | |||||
| 24 | 5303284130 | Panel-lower Rear |
|
- | |||||
| 25 | 3205926 | Panel-upper Rear |
|
- | |||||
| 32 | 3205928 | Bracket-water Valve |
|
- | |||||
| *30962 | 5303017866 | Paint-6 Oz-almond |
|
- | |||||
| 6A | 5303015671 | Screw-brkt/cabinet |
|
- | |||||
| 6B | 5303283840 | Screw-brkt/rear Support (2) |
|
- | |||||
| 6C | 5303015671 | Screw-cab/base-front Ground (2) |
|
- | |||||
| 6D | 08015500 | Screw-top Panel/rear Support (2) |
|
- | |||||
| 6E | 08015500 | Screw-back Panel/support-top Center |
|
- | |||||
| 6F | 5303015671 | Screw-upper Bk Panel/lower Bk Panel |
|
- | |||||
| 6G | 5303015671 | Screw-back Panel/base (2) |
|
- | |||||
| 8A | 08004660 | Screw-support/lh Side Panel |
|
- | |||||
| 8B | 5303206864 | Screw-back Panel/support (2) |
|
- |
