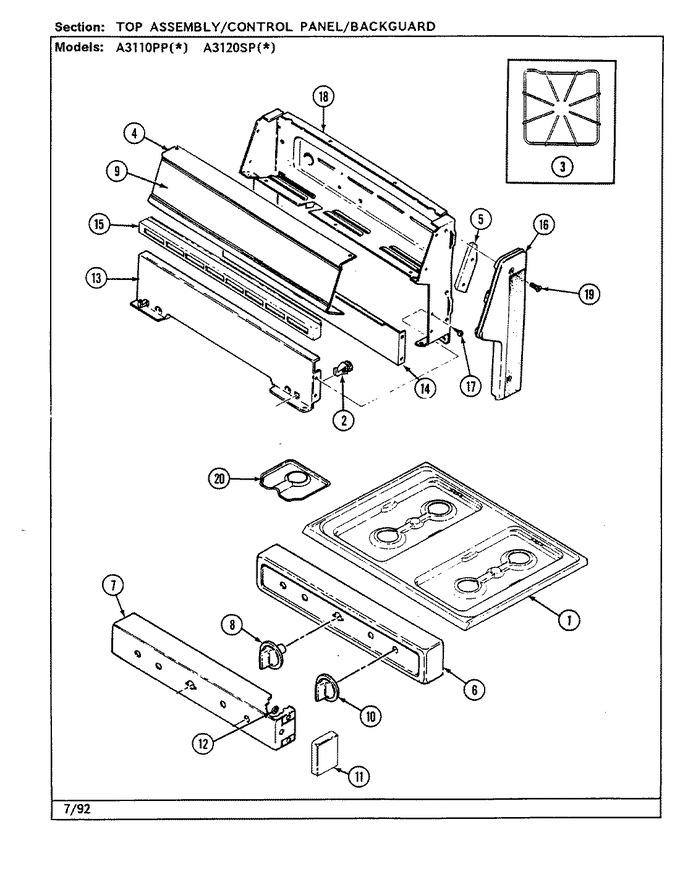

04 - Top Assy./control Panel
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303288566 | Top, Main (wht) (Replaces: 2001F098-81) | 1 |
|
$ 2.12 | ||||
| 2 | 8010P069-60 | Spacer, Hinge (main Top) | 1 |
|
$ 8.57 | ||||
| 3 | 2003W026-00 | Grate (blk) | 1 |
|
- | ||||
| 4 | 2601F397-09 | Panel, Backguard | 1 |
|
- | ||||
| 5 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 1 |
|
Immediately | $ 12.62 | |||
| 5 | 3807F436-45 | Support, Control Pnl (lt) | 1 |
|
- | ||||
| 5 | 3807F435-45 | Support, Control Pnl (rt) | 1 |
|
- | ||||
| 6 | 2616F085-09 | Panel, Manifold (blk) | 1 |
|
- | ||||
| 6 | 7101P311-60 | Screw----na | 1 |
|
- | ||||
| 8 | WP74002419 | Knob, Thermostat (blk) (Replaces: 7731P079-60) | 1 |
|
$ 18.54 | ||||
| 9 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 10 | WP7711P135-60 | Knob, Valve (blk) (Replaces: 7733P062-60) | 1 |
|
$ 25.06 | ||||
| 13 | 2612F037-81 | Backsplash (wht) | 1 |
|
- | ||||
| 13 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 1 |
|
Immediately | $ 12.62 | |||
| 14 | 3604F170-09 | Shield, Flue | 1 |
|
- | ||||
| 15 | 3608F043-09 | Trim, Vent | 1 |
|
- | ||||
| 16 | 7726P069-60 | End Cap (rt-blk) | 1 |
|
- | ||||
| 16 | 7726P070-60 | Trim, End Cap | 1 |
|
- | ||||
| 17 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 1 |
|
Immediately | $ 12.62 | |||
| 18 | 4001F084-51 | Housing, Backguard | 1 |
|
- | ||||
| 19 | 7101P032-60 | Screw | 1 |
|
- | ||||
| 20 | 1430283 | Drip Bowl Kit (accessory) (Replaces: 5401A433-60) | 1 |
|
$ 95.86 | ||||
| 20 | 8113P011-60 | Manual, Use & Care | 1 |
|
- |
