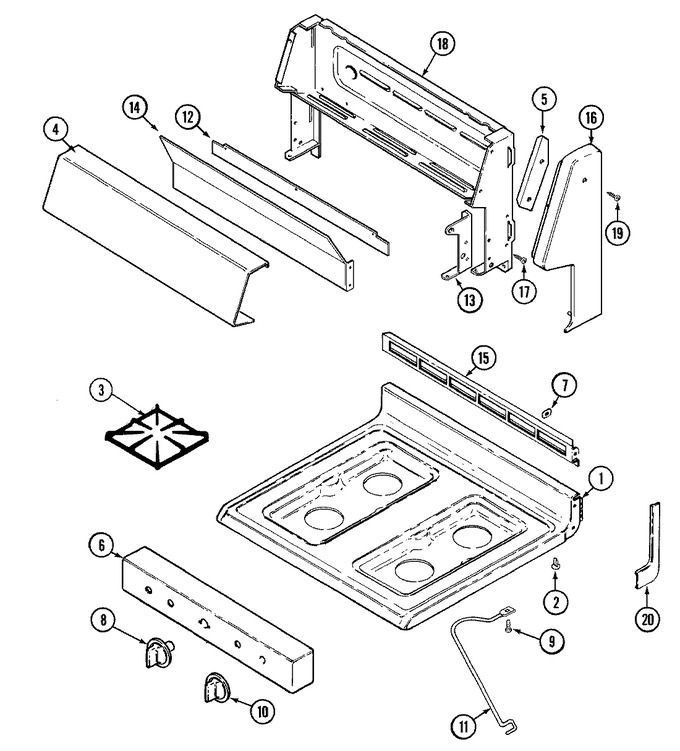

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2001W086-81		Top, Main (wht)	10	Appelez-nous	-
2	8016P015-60		Glide	10			$ 5.65
3	2003W026-00		Grate (blk)	10	Appelez-nous	-
4	7719P062-60		Nameplate, Admiral (blk)	10	Appelez-nous	-
4	2601F413-81		Panel, Control (wht)	10	Appelez-nous	-
5	3807F450-45		Support, Control Pnl (lt)	10	Appelez-nous	-
5	3807F449-45		Support, Control Pnl (rt)	10	Appelez-nous	-
6	2616F085-09		Panel, Manifold (blk)	10	Appelez-nous	-
6	7101P329-60		Screw	10	Appelez-nous	-
7	WP3195558		Nut, Speed   (Replaces: 7103P129-60)	10			$ 7.68
8	WP74002419		Knob, Thermostat (blk)   (Replaces: 7731P079-60)	10			$ 18.54
9	7101P280-60		Screw W/washer (blk)	10	Appelez-nous	-
10	WP7711P135-60		Knob, Valve (blk)   (Replaces: 7733P062-60)	10			$ 25.06
11	7809P020-60		Support, Prop Top	10	Appelez-nous	-
12	8036P003-60		Shield, Sight	10	Appelez-nous	-
13	8114P348-60		Cover, Hinge Support	10	Appelez-nous	-
13	3418D097-60		Hinge, Main Top (lt)	10	Appelez-nous	-
13	3418D098-60		Hinge, Main Top (rt)	10	Appelez-nous	-
14	3604F188-09		Shield, Flue	10	Appelez-nous	-
15	3608F042-09		Trim, Vent (blk)	10	Appelez-nous	-
16	7726P051-60		End Cap (rt-blk)	10	Appelez-nous	-
16	7101P317-60		Screw	10	Appelez-nous	-
16	7726P052-60		End Cap (lt-blk)	10	Appelez-nous	-
17	W11233072		Screw, Housing   (Replaces: 7118P015-60)	10		Immediately	$ 12.62
18	4005F448-45		Cover, Wire	10	Appelez-nous	-
18	4001F091-51		Housing, Control Panel	10	Appelez-nous	-
19	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
20	7746P031-60		End Cap (lt-blk)	10			$ 26.25
20	7746P030-60		End Cap (rt-blk)	10			$ 26.16
NI	8113P042-60		Manual, Use & Care	10	Appelez-nous	-
NI	16002079		Guide, Quick Ref - Admiral	10	Appelez-nous	-
