View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

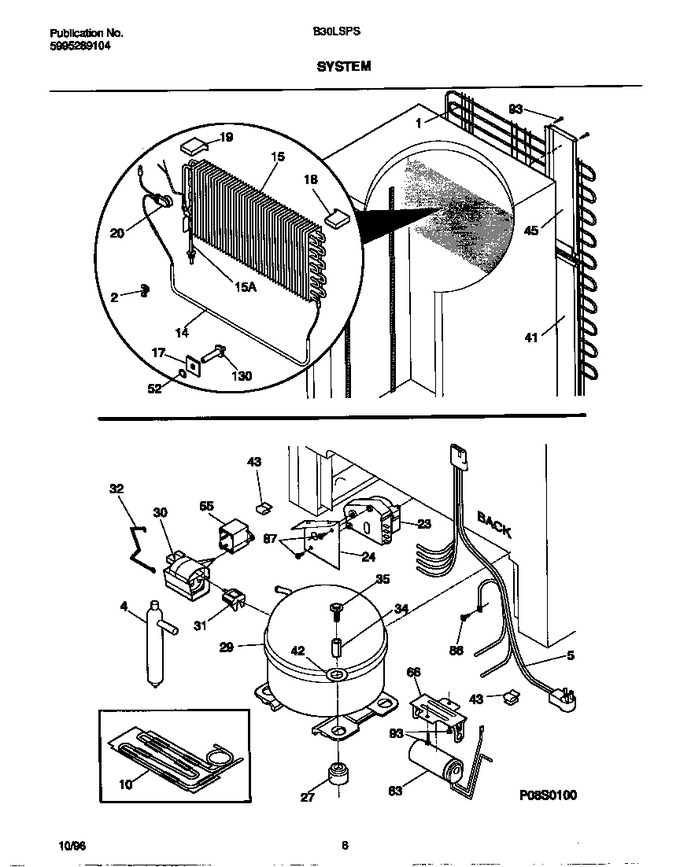

01 - Cover
02 - Door
03 - Cabinet/control/shelves
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300083897 | Condenser |
|
$ 538.37 | |||||
| 2 | 06599536 | Clip, Heater |
|
- | |||||
| 4 | 5303305677 | Drier, Filter (Replaces: 216099900) |
|
Immediately | $ 31.67 | ||||
| 5 | 216384600 | Harness-wire, Main |
|
- | |||||
| 10 | 216377600 | Heater-drain Pan Assy |
|
- | |||||
| 14 | 216254600 | Heater-defrost |
|
$ 259.53 | |||||
| 15 | 216195900 | Evaporator |
|
$ 246.91 | |||||
| 15 | 297363100 | Heat Exchanger (Replaces: 216393200) |
|
$ 148.92 | |||||
| 17 | 06599546 | Spacer-support, Evaporator |
|
- | |||||
| 18 | 06599531 | Insulation Block, Rh |
|
- | |||||
| 19 | 3017674 | Insulation Block, Lh |
|
- | |||||
| 20 | 216254500 | Switch-termination, Tube Mt |
|
$ 91.67 | |||||
| 23 | 216389400 | Timer-defrost |
|
- | |||||
| 24 | 08016580 | Bracket |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 29 | 5303925352 | Compressor,w/overload |
|
- | |||||
| 30 | 216008901 | Starter-ptc |
|
$ 312.95 | |||||
| 31 | 216100112 | Overload Protector |
|
- | |||||
| 32 | 215012000 | Wire-bale |
|
$ 2.63 | |||||
| 34 | 5306594529 | Sleeve-compressor |
|
$ 10.34 | |||||
| 35 | 5303272328 | Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor |
|
$ 10.34 | |||||
| 41 | 216389800 | Cover-wiring, Rear/bottom |
|
- | |||||
| 42 | 5303298960 | Spacer, Compressor |
|
- | |||||
| 43 | 09950610 | Clip |
|
- | |||||
| 45 | 216389900 | Cover-wiring, Rear/top |
|
- | |||||
| 52 | 08013198 | Retainer, Spacer Evap |
|
- | |||||
| 55 | 218719201 | Capacitor-run |
|
- | |||||
| 63 | 215769201 | Capacitor-start, W/wiring Harn, End Cap, & Bracket 66 |
|
- | |||||
| 66 | 215886600 | Bracket, Capacitor Mtg |
|
- | |||||
| 86 | 216036600 | Screw, Rwhd (gx, Ca), 8, 32 X 1/2 |
|
- | |||||
| 87 | 08037849 | Screw |
|
$ 8.98 | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 130 | 06599544 | Support, Evaporator |
|
- | |||||
| *52443 | 216389600 | Shield-wire, Electrical, Btm Cabinet |
|
- | |||||
| *52444 | 216384700 | Harness-evaporator |
|
- | |||||
| *52445 | 216384800 | Harness-wire, Defrost Heater |
|
- |
