SELECT A DIAGRAM

01 - Control System

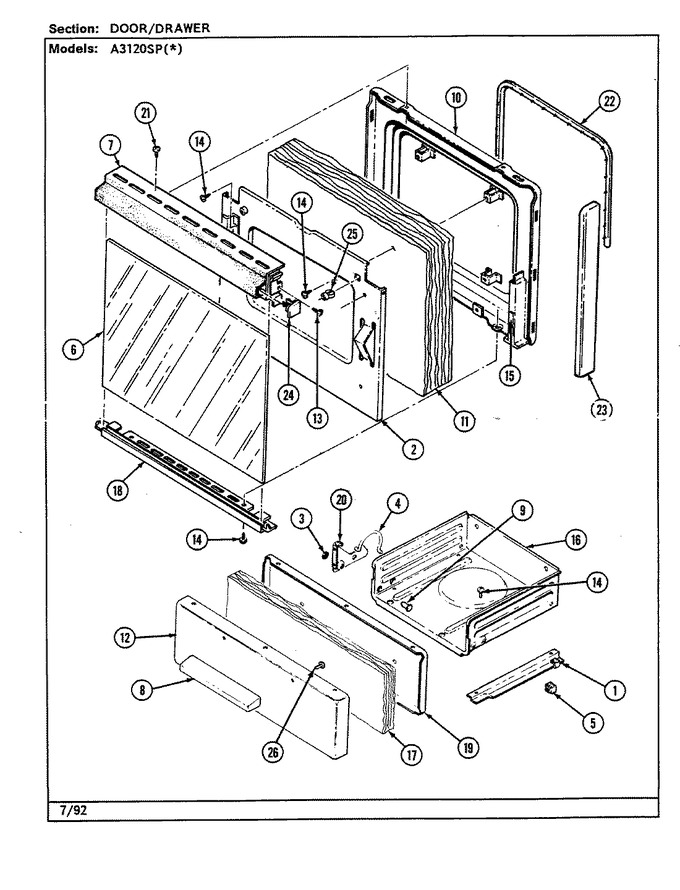

02 - Door\drawer (a3120spx)


03 - Oven


04 - Top Assy./control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3404F023-51		Track, Drawer (rt)		Appelez-nous	-
1	W11233072		Screw   (Replaces: 7101P290-60)			Immediately	$ 12.62
1	3404F022-51		Track, Drawer (lt)		Appelez-nous	-
2	3601F218-45		Baffle, Door		Appelez-nous	-
3	7103P022-60		Nut, Grip		Appelez-nous	-
4	7803P065-60		Spring, Hinge (rt)		Appelez-nous	-
4	7803P064-60		Spring, Hinge (lt)		Appelez-nous	-
5	8016P011-60		Glide, Drawer		Appelez-nous	-
5	8016P012-60		Glide, Drawer Rear		Appelez-nous	-
6	7902P325-60		Glass, Door (outer-blk)		Appelez-nous	-
7	7701P103-60		Handle, Door (blk)		Appelez-nous	-
8	7701P012-60		Handle, Drawer (chr)		Appelez-nous	-
9	7113P012-60		Pin, Broiler Hinge		Appelez-nous	-
10	2402W187-19		Lining, Door		Appelez-nous	-
11	4804F011-60		Insulation, Door		Appelez-nous	-
12	2403F028-71		Panel, Drawer (wht)		Appelez-nous	-
13	7101P291-60		Screw		Appelez-nous	-
14	W11233072		Screw   (Replaces: 7101P290-60)			Immediately	$ 12.62
15	WP854334		Seal, Rubber   (Replaces: 7208P011-60)				$ 11.95
16	3407F012-19		Drawer, Broiler		Appelez-nous	-
17	4804F025-60		Insulation		Appelez-nous	-
18	7744P078-60		Trim, Door (btm-blk)		Appelez-nous	-
19	2404F035-19		Lining, Broiler Drawer		Appelez-nous	-
20	3418F079-51		Hinge, Drawer (lt)		Appelez-nous	-
20	3418F080-51		Hinge, Drawer (rt)		Appelez-nous	-
21	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)				$ 15.94
22	WP7212P043-60		Seal, Silicone   (Replaces: 7212P034-60)			Immediately	$ 56.83
23	7744P055-60		End Cap, Oven Door (blk)		Appelez-nous	-
24	7744P076-60		End Cap (lt)		Appelez-nous	-
24	7744P075-60		End Cap (rt)		Appelez-nous	-
25	8010P075-60		Spacer		Appelez-nous	-
25	8010P085-60		Spacer, Rubber		Appelez-nous	-
26	74002481		Screw, Handle   (Replaces: 7101P283-60)				$ 5.82

    View Diagram in Separate Window       Print Part List
