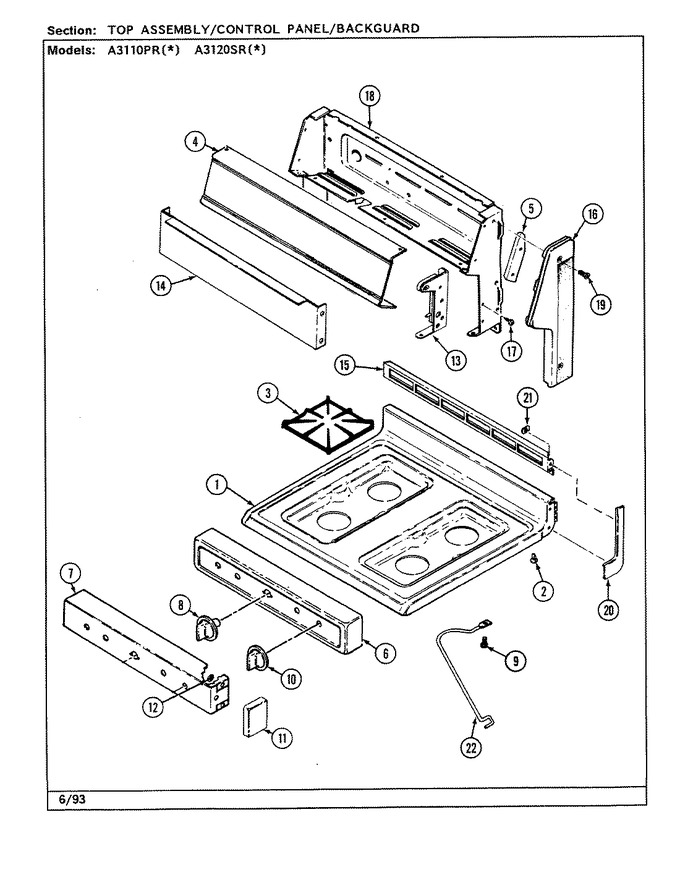

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2001W081-81		Top, Main (wht)	01	Appelez-nous	-
2	8016P013-60		Glide	01	Appelez-nous	-
3	2003W026-00		Grate (blk)	01	Appelez-nous	-
4	4851S043-59		Panel, Control	01	Appelez-nous	-
5	3807F436-45		Support, Control Pnl (lt)	01	Appelez-nous	-
5	3807F435-45		Support, Control Pnl (rt)	01	Appelez-nous	-
7	2616F095-09		Panel, Manifold (blk)	01	Appelez-nous	-
7	7101P311-60		Screw----na	01	Appelez-nous	-
8	WP74002419		Knob, Thermostat (blk)   (Replaces: 7731P079-60)	01			$ 18.54
9	7101P280-60		Screw W/washer (blk)	01	Appelez-nous	-
10	WP7711P135-60		Knob, Valve (blk)   (Replaces: 7733P062-60)	01			$ 25.06
11	7713P018-60		End Cap, Panel (blk)	01	Appelez-nous	-
12	7712P092-60		Panel, Manifold	01	Appelez-nous	-
13	3418A088-34		Hinge, Main Top (lt)		Appelez-nous	-
13	3418A087-34		Hinge, Main Top (rt)	01	Appelez-nous	-
14	3604F188-09		Shield, Flue	01	Appelez-nous	-
15	3608F042-09		Trim, Vent (blk)	01	Appelez-nous	-
16	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	01			$ 15.94
16	7726P051-60		End Cap (rt-blk)	01	Appelez-nous	-
16	7726P052-60		End Cap (lt-blk)	01	Appelez-nous	-
17	W11233072		Screw, Housing   (Replaces: 7118P015-60)	01		Immediately	$ 12.62
18	4001F088-51		Housing, Backguard	01	Appelez-nous	-
19	7101P032-60		Screw	01	Appelez-nous	-
20	7746P031-60		End Cap (lt-blk)	01			$ 26.25
20	7746P030-60		End Cap (rt-blk)	01			$ 26.16
21	WP3195558		Nut, Speed   (Replaces: 7103P129-60)	01			$ 7.68
22	7809P014-60		Support, Prop	01	Appelez-nous	-
NI	3418A088-34		Hinge, Main Top (lt)	01	Appelez-nous	-
NI	8113P011-60		Manual, Use & Care	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
