SELECT A DIAGRAM
01 - Control Panel
02 - Control System
03 - Door/drawer (a3131wrx)

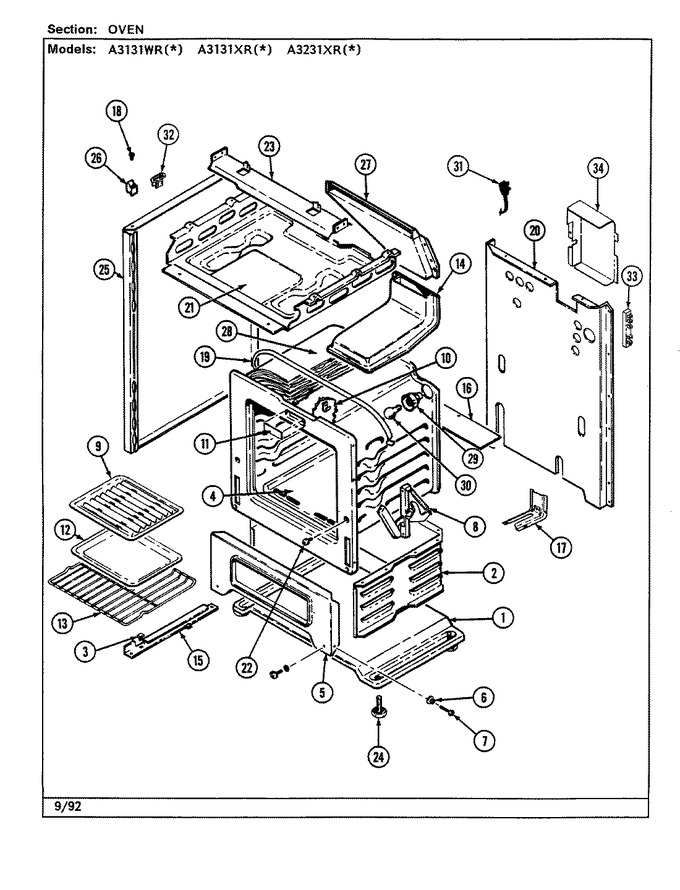

04 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7103P125-60 | Nut | 1 |
|
- | ||||
| 1 | 4003W028-80 | Base, Main | 1 |
|
- | ||||
| 2 | 4016F039-45 | Sides, Broiler | 1 |
|
- | ||||
| 3 | 8016P010-60 | Glide, Broiler Track | 1 |
|
- | ||||
| 4 | 3601F234-45 | Baffle, Oven Bottom | 1 |
|
- | ||||
| 4 | 5504A001-19 | Bottom, Oven | 1 |
|
- | ||||
| 4 | 3601F239-45 | Baffle, Oven Bottom | 13 |
|
- | ||||
| 4 | 5504A003-21 | Bottom, Oven | 13 |
|
- | ||||
| 5 | 2201F073-19 | Extension, Oven Front | 1 |
|
- | ||||
| 6 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 1 |
|
$ 7.07 | ||||
| 7 | W11772394 | Screw (Replaces: 7101P300-60) | 1 |
|
Immediately | $ 10.94 | |||
| 8 | 7106P033-60 | Hinge, Door |
|
- | |||||
| 9 | Y3413F01619 | Insert, Broil Pan | 1 |
|
- | ||||
| 10 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 11 | 8114P335-60 | Cover, Lock Slot | 1 |
|
- | ||||
| 12 | Y3401F02019 | Pan, Broil | 1 |
|
- | ||||
| 13 | WPW10282492 | Rack, Oven (Replaces: 7801P036-60) | 1 |
|
Immediately | $ 65.15 | |||
| 14 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 1 |
|
$ 6.47 | ||||
| 14 | 4006W113-45 | Box, Vent | 1 |
|
- | ||||
| 15 | 3404F018-51 | Track, Drawer (rt) | 1 |
|
- | ||||
| 15 | 3404F021-51 | Track, Drawer (lt) | 1 |
|
- | ||||
| 15 | W11233072 | Screw (Replaces: 7101P290-60) | 1 |
|
Immediately | $ 12.62 | |||
| 16 | 3807F416-45 | Support, Oven Back | 1 |
|
- | ||||
| 17 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 1 |
|
Immediately | $ 4.69 | |||
| 17 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 1 |
|
$ 26.33 | ||||
| 18 | WP74004005 | Screw (Replaces: 7118P013-60) | 1 |
|
$ 6.95 | ||||
| 19 | 4820F001-59 | Strap, Retainer | 1 |
|
- | ||||
| 20 | 4002F175-80 | Back, Main | 1 |
|
- | ||||
| 21 | 4011F209-80 | Box, Burner | 1 |
|
- | ||||
| 22 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 1 |
|
$ 4.29 | ||||
| 23 | 3807F411-51 | Support, Burner | 1 |
|
- | ||||
| 24 | 7101P306-60 | Leg, Leveling | 1 |
|
- | ||||
| 25 | 2618F085-74 | Panel, Side (alm) |
|
- | |||||
| 25 | 2618F099-74 | Panel, Side (alm) | 12 |
|
- | ||||
| 26 | 8010P087-60 | Spacer, Main Top (lt) | 1 |
|
- | ||||
| 26 | 8010P088-60 | Spacer, Main Top (rt) | 1 |
|
- | ||||
| 27 | 4022W005-19 | Extension, Flue Box | 1 |
|
- | ||||
| 28 | 4804F018-60 | Insulation, Wrap | 1 |
|
- | ||||
| 28 | 4804F017-60 | Insulation, Back | 1 |
|
- | ||||
| 29 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 1 |
|
Immediately | $ 66.10 | |||
| 30 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 31 | 7402P043-60 | Cord, Power | 1 |
|
- | ||||
| 32 | 8007P023-60 | Bushing, Prop | 1 |
|
- | ||||
| 33 | 7401P037-60 | Block, Terminal | 1 |
|
- | ||||
| 34 | 4005F385-51 | Cover, Back Wire | 1 |
|
- |
