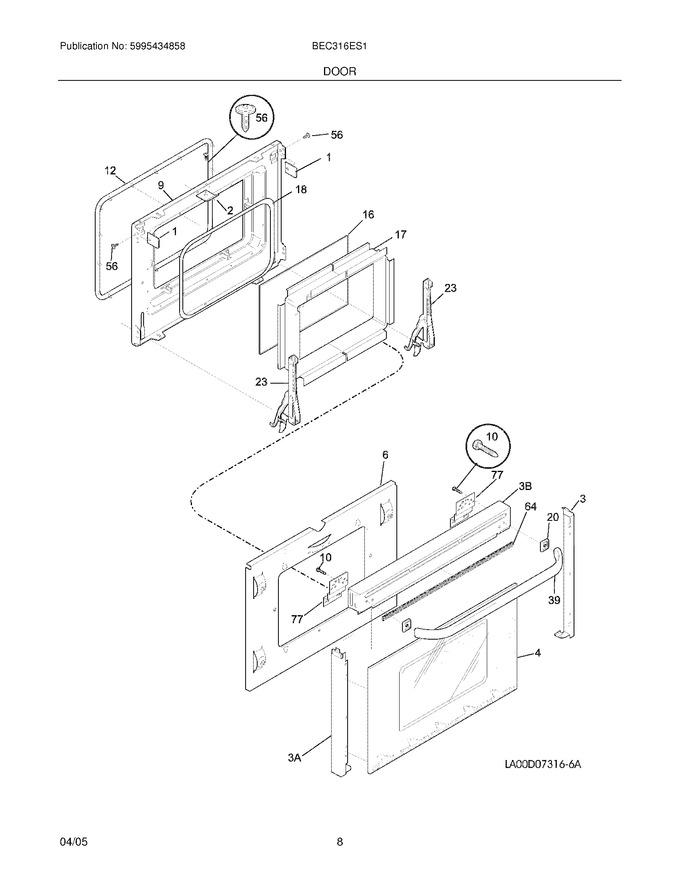

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318180310		Bracket,trim Mtg				$ 65.31
2	318180312		Bracket,upper Trim Mtg		Appelez-nous	-
3	318178322		Trim,door ,white ,rh Side		Appelez-nous	-
4	318187715		Panel,door Front Assy ,glass ,white ,with Lower Trim		Appelez-nous	-
6	318056814		Deflector,door		Appelez-nous	-
9	318157015		Liner,inner Door Assy		Appelez-nous	-
10	08011955		Screw,10-24 X 0.375 ,square Drive			Immediately	$ 9.36
12	318053320		Seal Oven Door		Appelez-nous	-
16	318041603		Panel,glass ,inner Oven Door				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318293501		Gasket,door Glass Seal				$ 50.32
20	318014301		Spacer,handle ,white ,(2)				$ 48.88
23	5303320452		Hinge,oven Door		Appelez-nous	-
39	316091119		Handle,oven Door ,white		Appelez-nous	-
56	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17
64	5304417120		Tape,0.762 M ,neoprene		Appelez-nous	-
77	318043100		Bracket-trim, Handle, (2)				$ 52.87
3A	318178323		Trim,door ,white ,lh Side				$ 29.71
3B	318176642		Trim,door ,white ,top		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18
