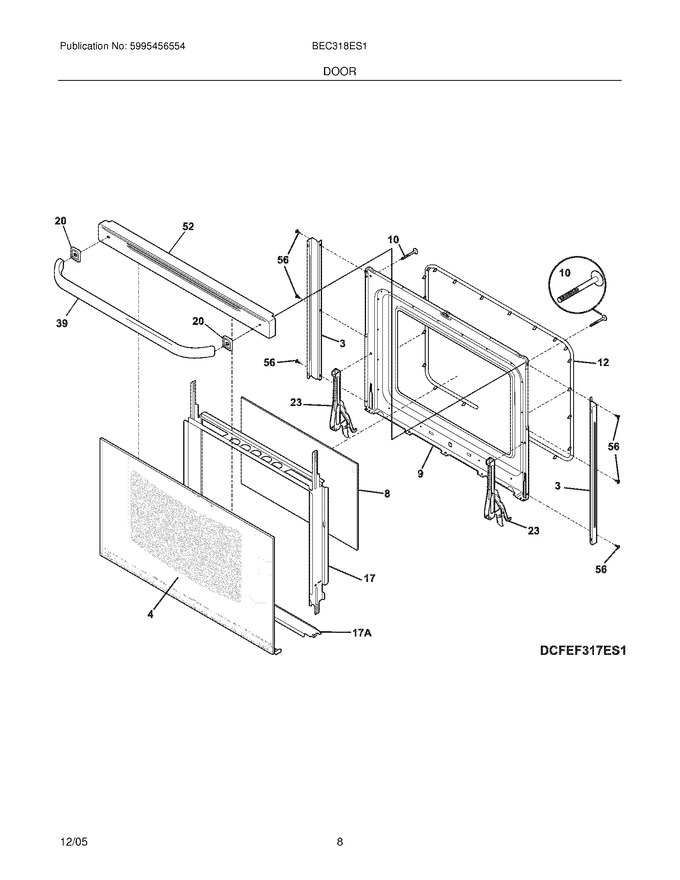

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318301401		Trim,oven Door ,white				$ 27.72
4	318304107		Door Assembly,glass ,white ,w/trim		Appelez-nous	-
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318259603		Liner,door				$ 184.90
10	5303311217		Screw-handle, Door				$ 12.71
12	318053325		Seal,door ,lower Oven				$ 64.94
17	318300513		Bracket,glass				$ 35.49
20	318014301		Spacer,handle ,white ,(2)				$ 48.88
23	5303320452		Hinge,oven Door		Appelez-nous	-
39	5304530039		Handle-door, White, Oven   (Replaces: 316091115)			Immediately	$ 167.43
52	318304200		Trim,door ,white ,upper		Appelez-nous	-
56	5304448821		Screw,8-18 X 1/2 ,white ,(6)		Appelez-nous	-
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
17A	318300611		Bracket,glass ,lower				$ 17.90
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
