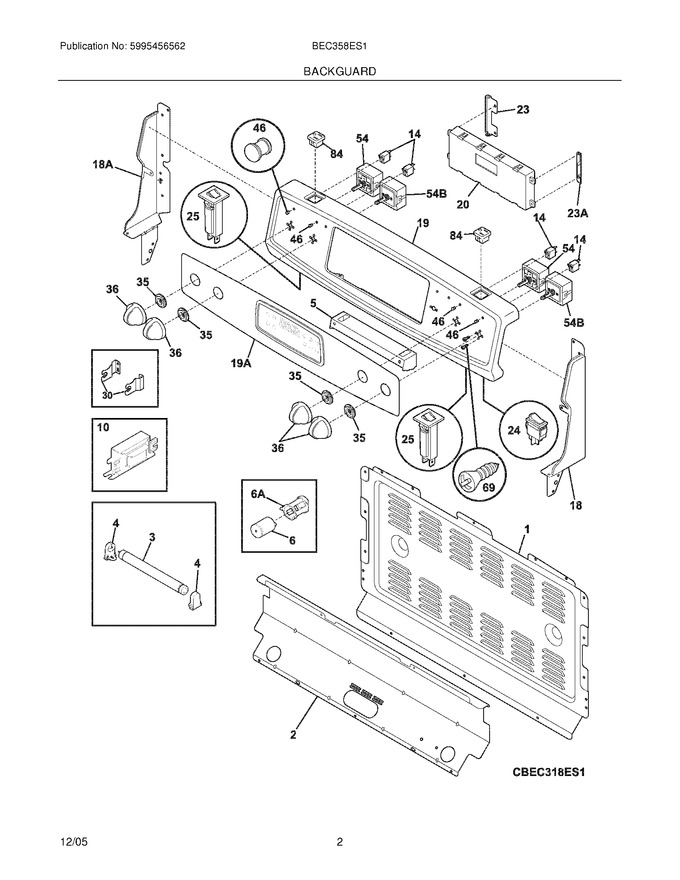

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318314100		Panel,cover ,upper				$ 60.32
2	318288201		Shield,inner ,white		Appelez-nous	-
3	5304448825		Lamp,fluorescent ,backguard				$ 28.19
4	318323400		Receptacle,lamp ,rh/lh		Appelez-nous	-
5	318288000		Housing,light				$ 9.19
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
18	318287902		End Cap,backsplash ,white ,rh				$ 44.52
19	318288636		Panel,control ,white				$ 77.28
23	318308500		Bracket,control ,lh				$ 59.33
25	318324200		Breaker,white ,(2)				$ 18.01
30	318316900		Bracket,cooktop Mtg ,(2)		Appelez-nous	-
35	318335400		Support,retainer ,white ,(4)		Appelez-nous	-
36	318017110		Knob,control ,white				$ 43.00
46	318228310		Lens,indicator Light   (Replaces: 5303297274)			Immediately	$ 22.91
69	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
84	318146830		Outlet,electrical ,white ,combined		Appelez-nous	-
18A	318287903		End Cap,backsplash ,white ,lh				$ 40.07
19A	318329910		Panel,glass Assembly ,white ,with Membrane				$ 330.42
23A	318308600		Bracket,control ,rh				$ 3.89
6A	318110400		Receptacle,starter				$ 52.29
F10	318122804		Ballast,lamp		Appelez-nous	-
F20	316418548		Clock/timer,electronic ,es340				$ 204.91
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
F54	903136-9030		Switch,surface Unit ,small   (Replaces: 318220083)			Immediately	$ 66.02
F54B	903136-9040		Switch,surface Unit ,large   (Replaces: 318220084)			Immediately	$ 70.04
F6	5304448826		Starter,lamp				$ 13.49
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
NI	318232103		Harness,wiring ,light ,flourecent		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
