View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Cabinet/drum
05 - Front Panel/lint Filter

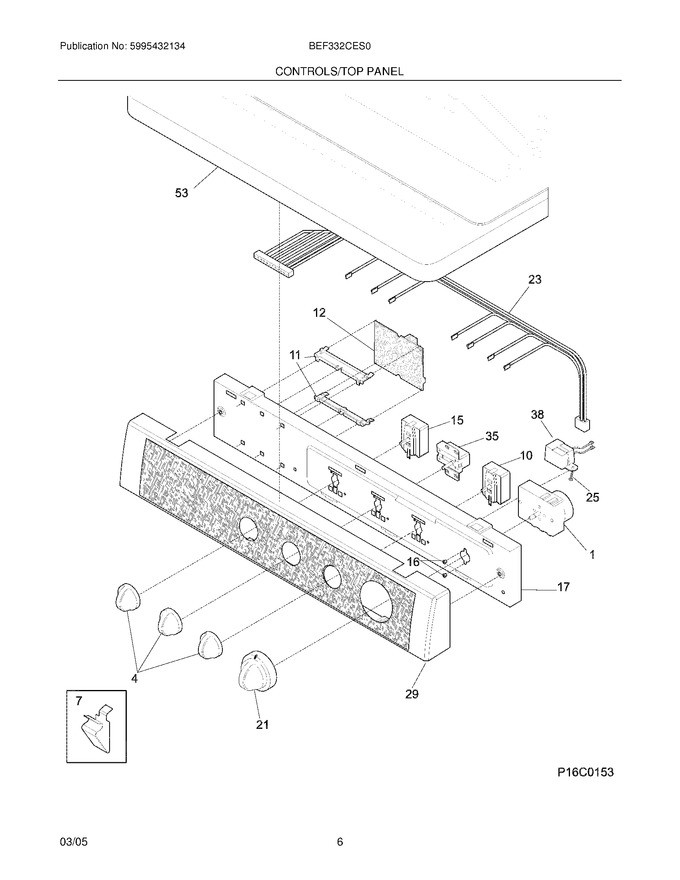

07 - Controls/top Panel
09 - Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 134042800 | Knob,rotary ,white |
|
Immediately | $ 50.61 | ||||
| 7 | 3205821 | Clip,top-to-front |
|
Immediately | $ 35.44 | ||||
| 10 | 134398300 | Switch,start ,turn Type |
|
Immediately | $ 77.82 | ||||
| 11 | 131587400 | Bracket,pc Board Mtg. ,(2) |
|
$ 44.40 | |||||
| 16 | 134034300 | Screw,pan Hd Phillips ,8-18b X 0.250 |
|
- | |||||
| 17 | 134064501 | Bracket,control Mtg. |
|
$ 76.13 | |||||
| 21 | 131873500 | Knob,timer ,white/gray (Replaces: 134042600) |
|
Immediately | $ 49.62 | ||||
| 25 | 5303015671 | Screw,hex Washer Head ,8-18 X 0 .375 ,cup Point |
|
- | |||||
| 29 | 131666977 | Console,frame ,w/trim & Tape |
|
- | |||||
| 53 | 134086812 | Panel,dryer Top ,white ,stackable |
|
$ 336.42 | |||||
| F1 | 131789200 | Timer,dryer |
|
Immediately | $ 234.23 | ||||
| F12 | 134216300 | Control Board,moisture Sensor |
|
$ 67.62 | |||||
| F15 | 134046800 | Switch,temp Control ,3 Posn Rotary |
|
$ 106.26 | |||||
| F23 | 134063800 | Wiring Harness,control |
|
$ 240.61 | |||||
| F35 | 131243200 | Switch,2 Position |
|
- | |||||
| F38 | 5303210285 | Buzzer |
|
$ 65.78 | |||||
| NI | 134101400 | Terminal Block,main |
|
Immediately | $ 55.99 | ||||
| NI | 134110500 | Wiring Harness,main |
|
$ 251.95 |
