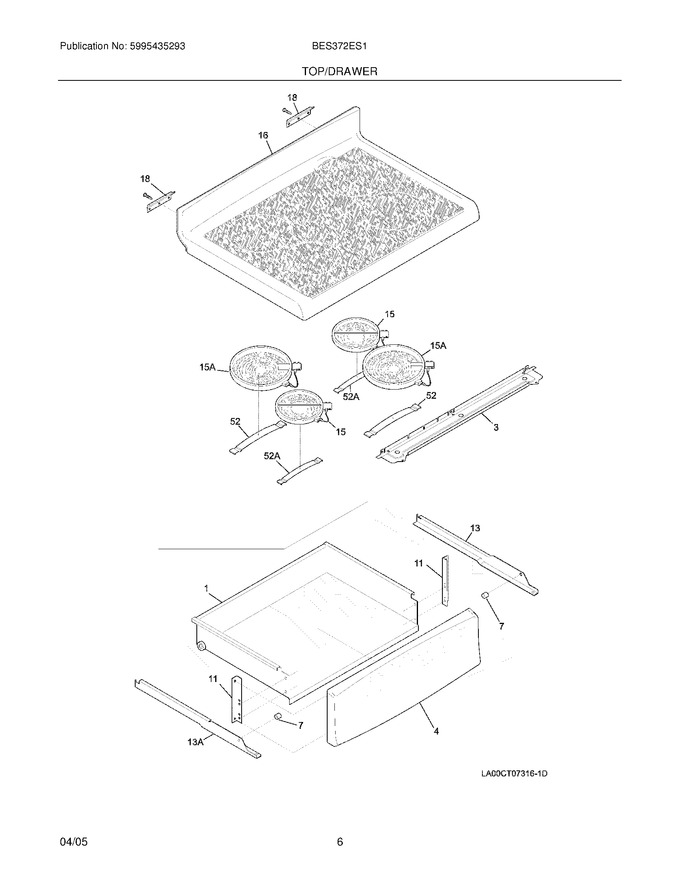

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107104)			Immediately	$ 143.39
3	318144323		Support,main Top		Appelez-nous	-
4	318044301		Panel,drawer ,white ,front		Appelez-nous	-
7	318014800		Spacer				$ 16.59
11	318107500		Bracket,drawer Support ,(2)				$ 21.85
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
16	318154609		Panel,main Top ,steel/glass ,white/black,assembly		Appelez-nous	-
18	318074410		Hinge,main Top Panel ,(2)				$ 1.47
52	318122007		Spring,element Mtg ,large				$ 53.45
13A	318018101		Channel-drawer,lh				$ 63.11
52A	318122006		Spring,element Mtg ,small				$ 66.25
F15	318198817		Element,surface ,small/6`` ,1200 W   (Replaces: 318198813)			Immediately	$ 192.78
F15A	903118-9010		Element,surface ,9`` ,large ,2200 W   (Replaces: 318198815)			Immediately	$ 236.18
NI	5303131801		Screw, 10 X 3/8		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
