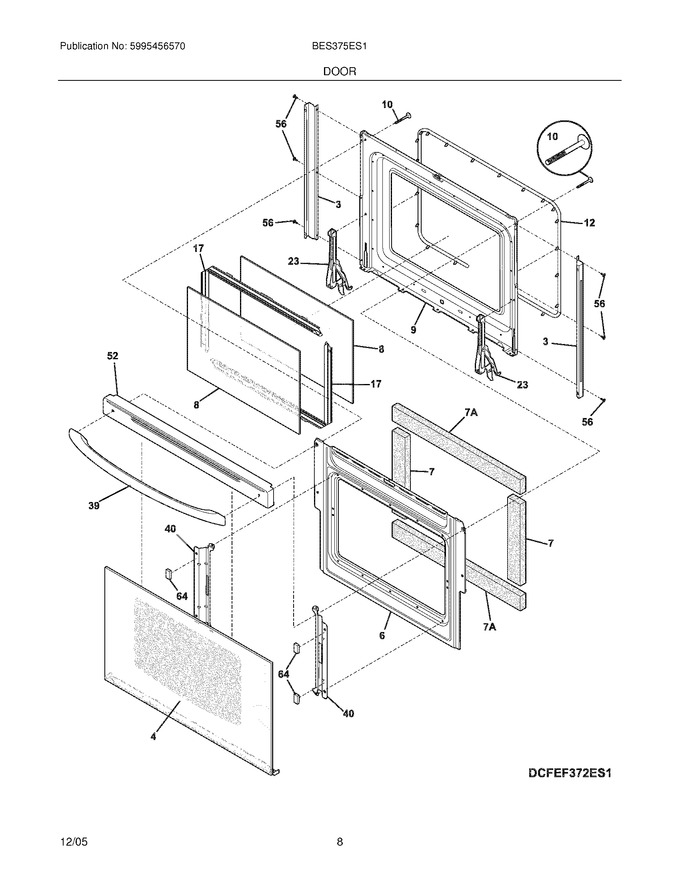

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318301401		Trim,oven Door ,white				$ 27.72
4	318304107		Door Assembly,glass ,white ,w/trim		Appelez-nous	-
6	318260500		Baffle,door		Appelez-nous	-
7	318372017		Insulation,oven Door   (Replaces: 318285057)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318259601		Liner,oven Door				$ 99.12
10	5304441734		Screw,handle Mtg. ,10-24 X 2 ,(2)				$ 10.87
12	318053120		Seal,oven Door   (Replaces: 318053130)			Immediately	$ 159.62
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 25.02
23	318024722		Hinge,door ,(2)		Appelez-nous	-
39	316270201		Handle-door,white   (Replaces: 316203001)			Immediately	$ 128.29
40	318382302		Bracket,glass Holder ,(2)   (Replaces: 318242700)				$ 50.81
52	318304200		Trim,door ,white ,upper		Appelez-nous	-
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
56	5304448821		Screw,8-18 X 1/2 ,white ,(6)		Appelez-nous	-
64	318165800		Spacer,(2)				$ 17.72
7A	318372016		Insulation,oven Door   (Replaces: 318285062)				$ 17.72
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
