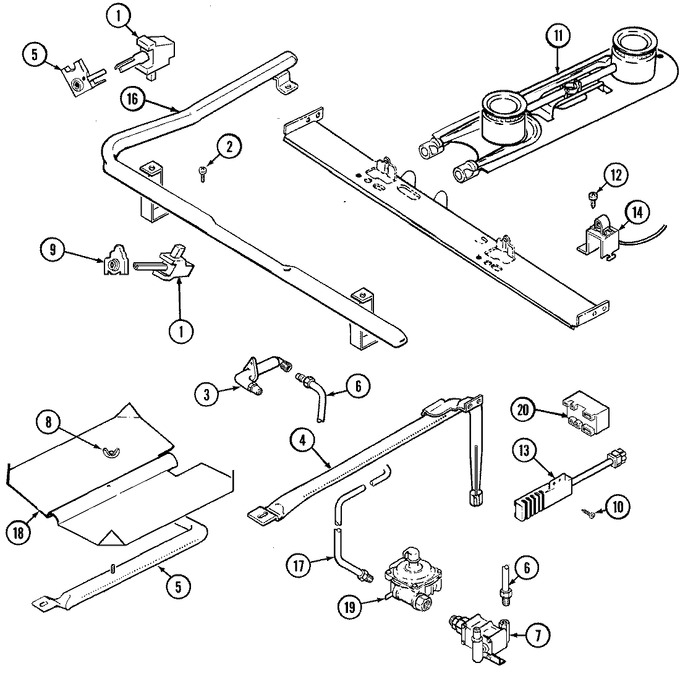

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7502P174-60 | Valve, Top Burner | 01 |
|
- | ||||
| 2 | 7101P044-60 | Screw, Valve | 01 |
|
- | ||||
| 3 | 3605F186-45 | Plate, Fitting | 01 |
|
- | ||||
| 3 | 74001779 | Fitting, Broil Burner | 01 |
|
- | ||||
| 4 | 3403D043-45 | Burner, Bake | 01 |
|
- | ||||
| 4 | 3807F446-45 | Support, Burner | 01 |
|
- | ||||
| 5 | 3403D024-45 | Burner, Broil | 01 |
|
- | ||||
| 6 | 3414F102-44 | Tubing, Broil Burner (3/8``) | 01 |
|
- | ||||
| 7 | 74001442 | Valve, Oven | 01 |
|
- | ||||
| 8 | 7103P030-60 | Nut, Wing | 01 |
|
$ 6.37 | ||||
| 9 | 7403P284-60 | Switch, Burner | 01 |
|
$ 55.80 | ||||
| 10 | WP3351614 | Screw (Replaces: 7101P328-60) | 01 |
|
Immediately | $ 6.26 | |||
| 11 | 3412A004-19 | Burner, Top | 01 |
|
- | ||||
| 12 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 01 |
|
Immediately | $ 12.62 | |||
| 13 | 4005F421-45 | Cover,igniter | 01 |
|
- | ||||
| 13 | 12400035 | Igniter, Oven (Replaces: 7432P076-60) | 01 |
|
Immediately | $ 60.44 | |||
| 14 | 7432P031-60 | Igniter, Top (rt) | 01 |
|
- | ||||
| 14 | 7432P008-60 | Igniter, Top (lt) | 01 |
|
- | ||||
| 15 | 3807F411-51 | Support, Burner | 01 |
|
- | ||||
| 16 | 7513P105-60 | Pipe, Manifold | 01 |
|
- | ||||
| 16 | 7103P130-60 | Nut, Loxit (3/8``) | 01 |
|
$ 8.20 | ||||
| 17 | 3414F103-44 | Tubing, Regulator/pipe (3/8``) | 01 |
|
- | ||||
| 18 | 3601F217-47 | Baffle, Broil Burner | 01 |
|
- | ||||
| 19 | 7510P068-60 | Regulator, Pressure | 01 |
|
- | ||||
| 20 | 74001934 | Module, Spark | 01 |
|
- | ||||
| NI | 5125A312-60 | Harness, Loose/burner Box | 01 |
|
- |
