SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

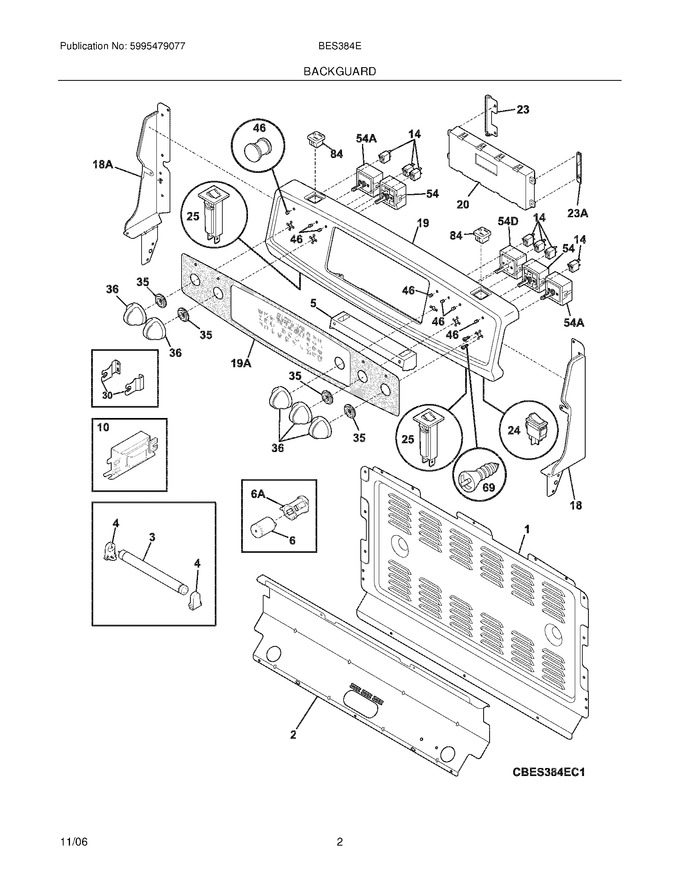

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318314100		Panel,cover ,upper				$ 60.32
2	318288203		Shield,inner ,black		Appelez-nous	-
3	5304448825		Lamp,fluorescent ,backguard				$ 28.19
4	318323401		Receptacle,lamp ,rh/lh				$ 5.58
5	318288000		Housing,light				$ 9.19
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
18	318287906		End Cap,backsplash ,black ,rh		Appelez-nous	-
19	318288635		Panel,control ,black		Appelez-nous	-
23	318308500		Bracket,control ,lh				$ 59.33
25	318324202		Breaker,black ,(2)				$ 22.94
30	318316900		Bracket,cooktop Mtg ,(2)		Appelez-nous	-
35	318335402		Support,retainer ,black ,(4)				$ 4.04
36	318017111		Knob-control,black				$ 45.52
46	318228310		Lens,indicator Light   (Replaces: 5303297274)			Immediately	$ 22.91
69	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
84	318146832		Outlet,electrical ,black ,combined		Appelez-nous	-
18A	318287907		End Cap,backsplash ,black ,lh		Appelez-nous	-
19A	318322914		Panel,glass Assembly ,black ,w/membrane		Appelez-nous	-
23A	318308600		Bracket,control ,rh				$ 3.89
6A	318110400		Receptacle,starter				$ 52.29
F10	318122804		Ballast,lamp		Appelez-nous	-
F20	316418760		Clock/timer,electronic ,es520t				$ 439.01
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
F54	903136-9030		Switch,surface Unit ,small ,single   (Replaces: 318369617)			Immediately	$ 66.02
F54A	318191024		Switch,infinite ,dual   (Replaces: 318191028)			Immediately	$ 92.38
F54D	318078804		Switch,element ,warmer				$ 95.96
F6	5304448826		Starter,lamp				$ 13.49
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
NI	318232103		Harness,wiring ,light ,flourecent		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
