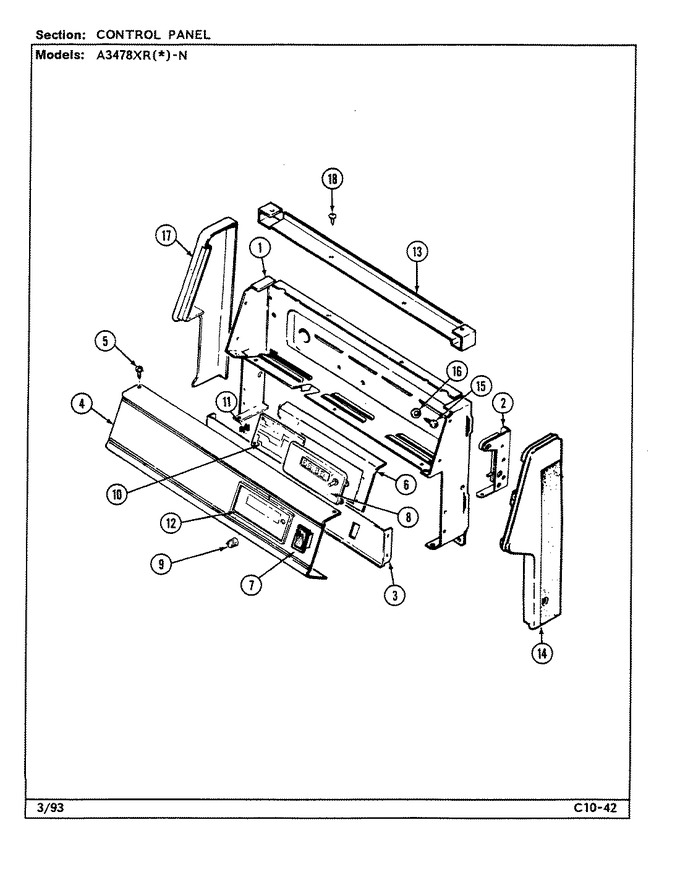

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Base
02 - Body
03 - Control Panel
04 - Control System
05 - Door/drawer
06 - Top Assy.
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F088-51 | Housing, Backguard | 01 |
|
- | ||||
| 2 | 3807F424-51 | Support, Housing (lt) | 01 |
|
- | ||||
| 2 | 3807F423-51 | Support, Housing (rt) | 01 |
|
- | ||||
| 3 | 3604F188-09 | Shield, Flue | 01 |
|
- | ||||
| 4 | 4851S010-59 | Panel, Control Assy | 01 |
|
- | ||||
| 5 | WPY706189 | Screw (Replaces: 7118P019-60) | 01 |
|
Immediately | $ 6.47 | |||
| 6 | 3801F263-45 | Bracket, Clock | 01 |
|
- | ||||
| 7 | 7403P067-60 | Switch, Rocker (blk) | 01 |
|
$ 91.35 | ||||
| 8 | 7601P210-60 | Clock | 01 |
|
- | ||||
| 9 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 01 |
|
$ 12.13 | ||||
| 10 | 7428P012-60 | Relay | 01 |
|
- | ||||
| 11 | 8004P020-60 | Support, Relay Board | 01 |
|
- | ||||
| 12 | W10124350 | Not Required Part Or See Note Trim (supplied W/item No.4) | 01 |
|
- | ||||
| 13 | 4001F064-51 | Extension, Control Panel | 01 |
|
- | ||||
| 14 | 7726P060-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 15 | W11233072 | Screw (Replaces: 7118P018-60) | 01 |
|
Immediately | $ 12.62 | |||
| 16 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 | ||||
| 17 | 7726P059-60 | End Cap (lt-blk) | 01 |
|
- | ||||
| 18 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 18 | 8113P048-60 | Manual, Use & Care (korean) | 01 |
|
- | ||||
| 18 | 8112P106-60 | Manual, Use & Care-insert | 01 |
|
- | ||||
| 18 | 8113P041-60 | Manual, Use & Care | 01 |
|
- |
