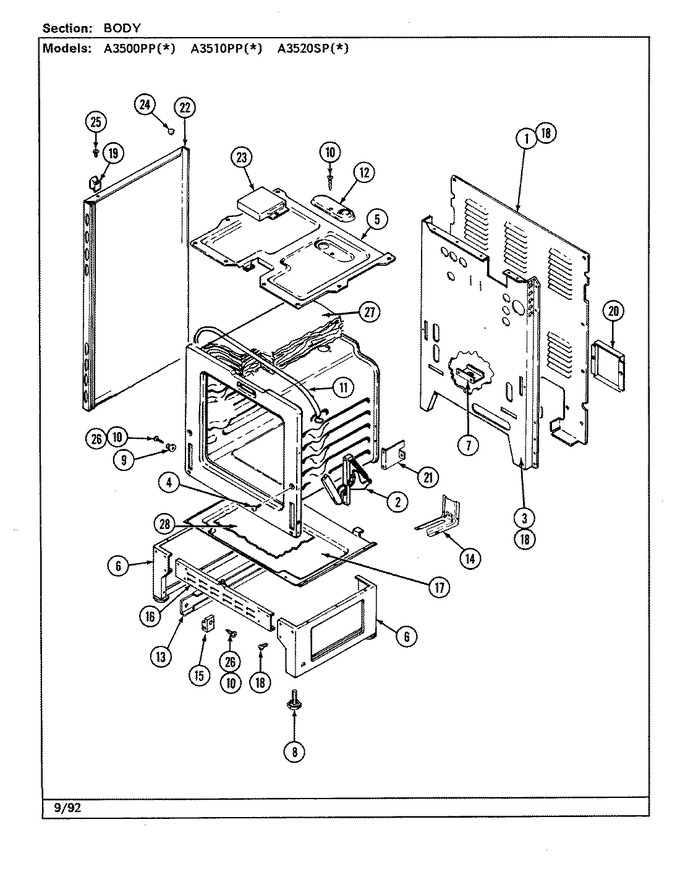

01 - Body
02 - Control Pnl/top Assm (a3510)
03 - Door\drawer
04 - Oven
05 - Top Assy/front Panel (a3500)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P009-60) | 01 |
|
Immediately | $ 15.56 | |||
| 2 | WPW10196406 | Bowl, Drip (6``) (Replaces: 7725P008-60) | 01 |
|
Immediately | $ 12.05 | |||
| 2 | WPW10196406 | Bowl, Drip (w/hole) (Replaces: 7725P007-60) | 01 |
|
Immediately | $ 12.05 | |||
| 3 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 6.95 | ||||
| 4 | WPY04000035 | Element (8``) (Replaces: Y04000035) | 01 |
|
$ 160.60 | ||||
| 5 | WPY04000036 | Element (6``) (Replaces: Y04000036) | 01 |
|
$ 88.70 | ||||
| 6 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 01 |
|
Immediately | $ 28.45 | |||
| 7 | 3802F085-80 | Brace | 01 |
|
- | ||||
| 7 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 7 | 2002W074-84 | Top, Main (alm) | 01 |
|
- | ||||
| 8 | 3801F243-51 | Bracket, Control Panel (lt) | 01 |
|
- | ||||
| 8 | 3801F242-51 | Bracket, Control Panel (rt) | 01 |
|
- | ||||
| 8 | 2601F360-74 | Panel, Backguard (alm) | 01 |
|
- | ||||
| 8 | 7719P008-60 | Plate, Name | 01 |
|
- | ||||
| 9 | 8010P069-60 | Spacer, Hinge (main Top) | 01 |
|
$ 8.57 | ||||
| 9 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 10 | 3807F419-80 | Support Upper Front Panel | 01 |
|
- | ||||
| 10 | 2614F030-09 | Panel, Cntl. | 01 |
|
- | ||||
| 10 | 3801F251-51 | Bracket, Cntl. Panel | 01 |
|
- | ||||
| 11 | 7404P085-60 | Thermostat | 01 |
|
- | ||||
| 11 | 7101P280-60 | Screw W/washer (blk) | 01 |
|
- | ||||
| 12 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 01 |
|
Immediately | $ 35.10 | |||
| 12 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 01 |
|
Immediately | $ 57.78 | |||
| 13 | 7735P033-60 | Knob, Thermostat | 01 |
|
- | ||||
| 14 | WP7737P030-60 | Knob, Switch (Replaces: 7737P030-60) | 01 |
|
$ 17.81 | ||||
| 15 | 7407P015-60 | Light, Indicator | 01 |
|
- | ||||
| 16 | 7112P087-60 | Clip, Top Locking | 01 |
|
- | ||||
| 17 | 5175D053-60 | Harness, Cooktop | 01 |
|
- | ||||
| 17 | 5170D130-60 | Harness, Control Panel | 01 |
|
- | ||||
| 18 | 8113P023-60 | Manual, Use & Care | 01 |
|
- |
