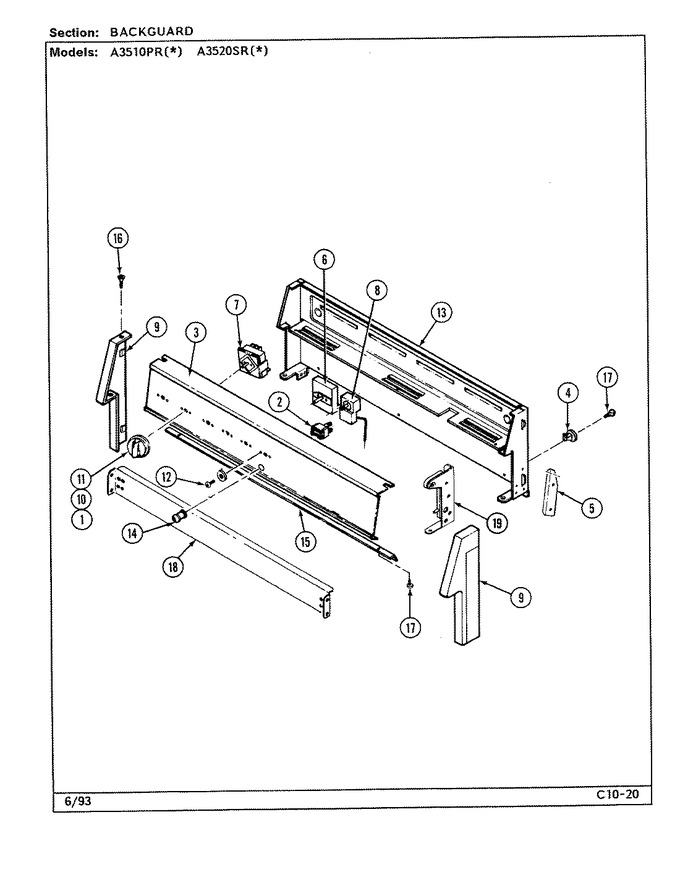

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7735P031-60		Knob, Thermostat	01	Appelez-nous	-
2	W10852510		Light, Indicator   (Replaces: 7407P102-60)	01			$ 106.11
2	7407P081-60		Light, Indicator	01	Appelez-nous	-
3	WP74004005		Screw   (Replaces: 7118P013-60)	01			$ 6.95
3	2601F393-70		Panel, Control	01	Appelez-nous	-
4	8010P069-60		Spacer, Hinge (main Top)	01			$ 8.57
5	3807F436-45		Support, Control Pnl (lt)	01	Appelez-nous	-
5	3807F435-45		Support, Control Pnl (rt)	01	Appelez-nous	-
6	WP7403P255-60		Switch, Selector   (Replaces: 7403P255-60)	01			$ 131.41
7	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	01		Immediately	$ 35.10
7	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	01		Immediately	$ 57.78
8	7404P081-60		Thermostat	01	Appelez-nous	-
9	7726P051-60		End Cap (rt-blk)	01	Appelez-nous	-
9	7726P052-60		End Cap (lt-blk)	01	Appelez-nous	-
9	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	01			$ 15.94
10	7739P037-60		Knob Selector	01	Appelez-nous	-
11	WP7737P030-60		Knob, Switch   (Replaces: 7737P030-60)	01			$ 17.81
12	WP7101P309-60		Screw   (Replaces: 7101P309-60)	01		Immediately	$ 6.26
13	4001F089-51		Housing, Backguard	01	Appelez-nous	-
14	W11690131		Lens, Indicator Light   (Replaces: 7730P012-60)	01			$ 6.73
14	W11690131		Lens, Indicator Light   (Replaces: 7730P008-60)	01			$ 6.73
15	3604F201-80		Shield, Sight	01	Appelez-nous	-
16	7101P317-60		Screw	01	Appelez-nous	-
17	W11233072		Screw, Housing   (Replaces: 7118P015-60)	01		Immediately	$ 12.62
18	3802F087-51		Brace, Lwr Bkgd	01	Appelez-nous	-
19	5125A316-60		Harness, Loose Wire	01	Appelez-nous	-
19	3418A087-34		Hinge, Main Top (rt)	01	Appelez-nous	-
19	3418A088-34		Hinge, Main Top (lt)	01	Appelez-nous	-
19	5170D119-60		Harness, Control Panel	01	Appelez-nous	-
