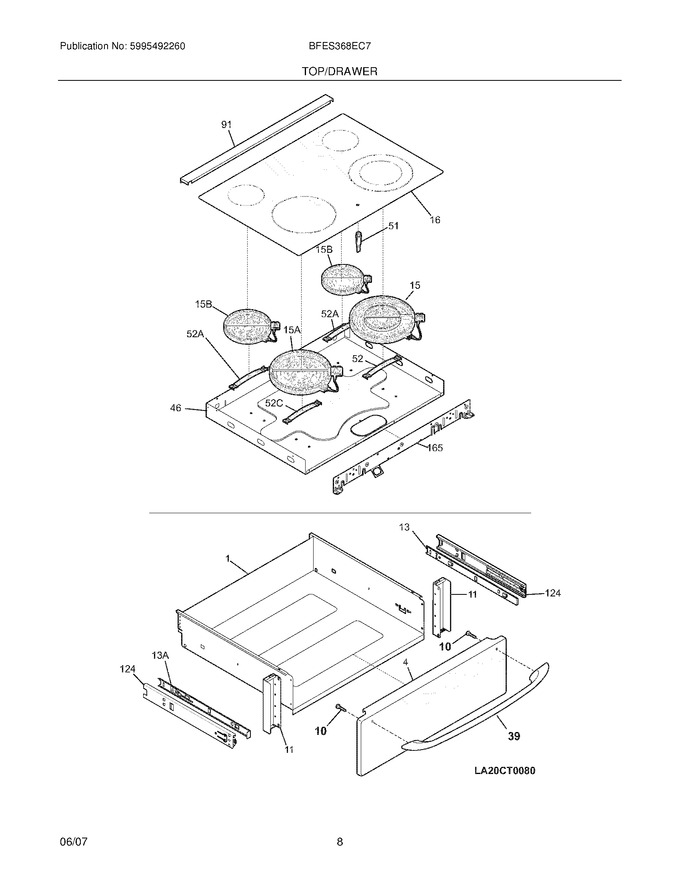

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107308		Drawer				$ 100.73
4	318298800		Panel,drawer ,stainless ,front		Appelez-nous	-
10	5304452028		Screw,handle Mtg ,10-14 X 1/2 ,(2)				$ 11.02
11	318298601		Bracket,drawer Support ,(2)		Appelez-nous	-
13	318259504		Glide,warmer ,inner Rh				$ 29.49
15	316282100		Element,surface ,6/9 ,1700/2700w ,dual Radiant   (Replaces: 318198934)			Immediately	$ 249.27
16	318223649		Main Top,glass Assy. ,black/white				$ 466.57
39	316270200		Handle,door ,black				$ 136.40
46	318225410		Box,burner		Appelez-nous	-
52	318122011		Spring,element Mtg ,1200w/1800w				$ 62.14
91	5304530475		Trim,filler ,black ,rear   (Replaces: 318304303)			Immediately	$ 78.11
124	318330600		Glide,drawer ,outer/rh & Lh ,(2)				$ 77.97
165	318227503		Plate,mounting				$ 247.59
13A	318259505		Glide,warmer ,inner Lh				$ 33.03
52A	318122006		Spring,element Mtg ,small				$ 66.25
52C	318122010		Spring,element Mtg ,3000w				$ 62.51
F15A	318198838		Element,surface ,9`` ,large ,2700 W				$ 315.47
F15B	318178110		Element,surface ,6`` ,1200 W ,(2)   (Replaces: 318198830)			Immediately	$ 122.86
F51	318044827		Light,indicator ,clear			Immediately	$ 60.25
NI	318228936		Harness,wiring ,cooktop		Appelez-nous	-
NI	318231848		Harness,wiring ,pilot Light		Appelez-nous	-
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92

    View Diagram in Separate Window       Print Part List
