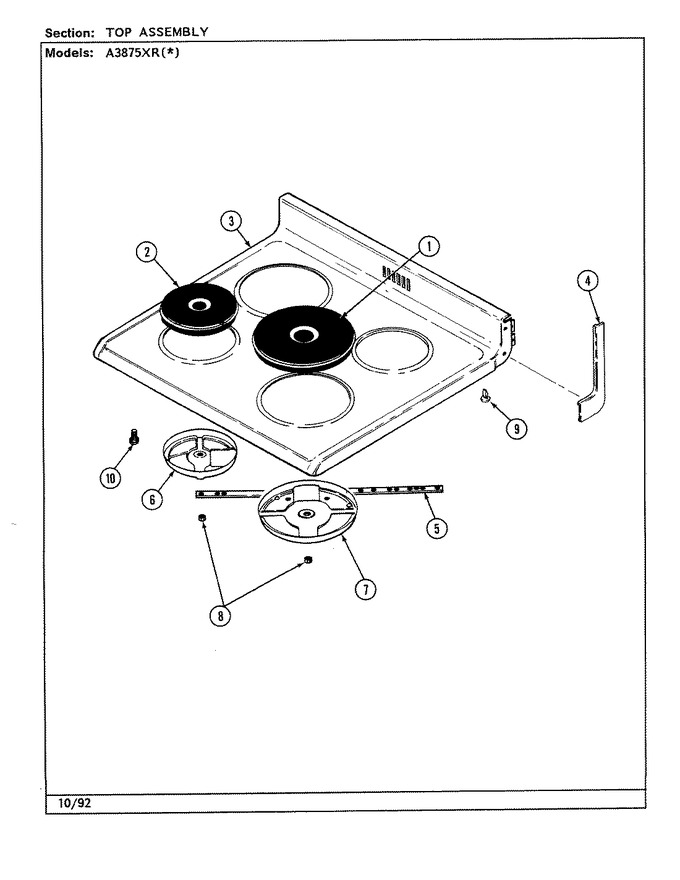

05 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7406P071-60 | Element (8``-2600w) | 01 |
|
- | ||||
| 1 | 7406P024-60 | Element, Solid Disc (8``) | 01 |
|
- | ||||
| 2 | WP3147131 | Element (6``) (Replaces: 7406P023-60) | 01 |
|
$ 244.76 | ||||
| 3 | 2002W077-81 | Top, Main (wht) | 01 |
|
- | ||||
| 4 | 7746P030-60 | End Cap (rt-blk) | 01 |
|
$ 26.16 | ||||
| 4 | 7746P031-60 | End Cap (lt-blk) | 01 |
|
$ 26.25 | ||||
| 5 | 3801F268-51 | Bracket Anti-turn | 01 |
|
- | ||||
| 6 | 8004P011-60 | Support, 6`` | 01 |
|
- | ||||
| 7 | 8004P012-60 | Support, 8`` | 01 |
|
- | ||||
| 8 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 | ||||
| 9 | 8016P013-60 | Glide | 01 |
|
- | ||||
| 10 | WPW10068250 | Screw 3/8`` (Replaces: 7101P141-60) | 01 |
|
$ 3.66 | ||||
| 10 | 8270P095-60 | Tape, Double Sided | 01 |
|
- | ||||
| 10 | 8114P348-60 | Cover, Hinge Support | 01 |
|
- |
