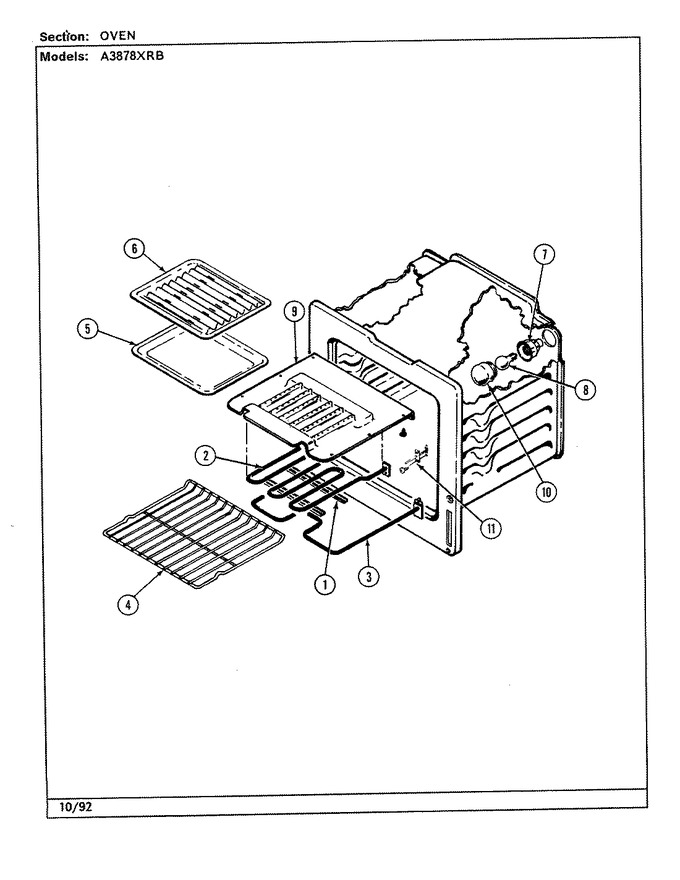

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3807F387-45 | Support, Broil Element | 01 |
|
- | ||||
| 1 | W11772394 | Screw (Replaces: 7101P300-60) | 01 |
|
Immediately | $ 10.94 | |||
| 2 | WPY04000059 | Element, Broil (Replaces: Y04000059) | 01 |
|
$ 159.00 | ||||
| 3 | WP74003019 | Element, Bake (Replaces: Y04000058) | 01 |
|
Immediately | $ 51.10 | |||
| 4 | WPW10282492 | Rack, Oven (Replaces: 7801P036-60) | 01 |
|
Immediately | $ 65.15 | |||
| 5 | Y3401F02019 | Pan, Broil | 01 |
|
- | ||||
| 6 | Y3413F01619 | Insert, Broil Pan | 01 |
|
- | ||||
| 7 | 7404P088-60 | Thermostat | 01 |
|
- | ||||
| 8 | 40A15 | Lamp, Oven (Replaces: 7407P091-60) | 01 |
|
Immediately | $ 1.98 | |||
| 9 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 9 | 3601F202-45 | Baffle. Broil | 01 |
|
- | ||||
| 10 | WP9781049 | Cover, Bulb (Replaces: 7724P047-60) | 01 |
|
Immediately | $ 71.93 | |||
| 11 | 12001656 | Sensor, Oven (Replaces: 7430P010-60) | 01 |
|
Immediately | $ 39.55 |
