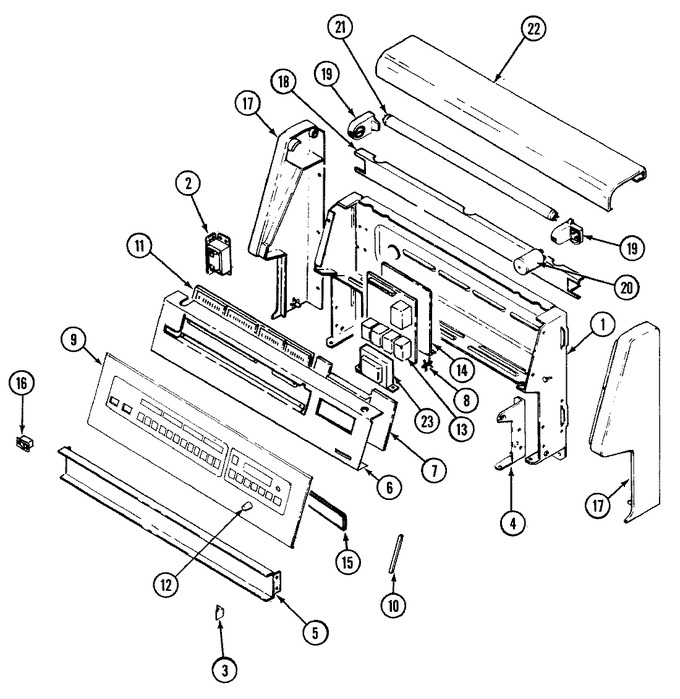

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F091-51 | Housing, Control Panel | 17 |
|
- | ||||
| 2 | 7412P007-60 | Ballast | 17 |
|
- | ||||
| 2 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 17 |
|
Immediately | $ 12.62 | |||
| 3 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 17 |
|
$ 6.98 | ||||
| 3 | 8010P083-60 | Spacer | 17 |
|
- | ||||
| 4 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 17 |
|
Immediately | $ 12.62 | |||
| 4 | 3807F453-51 | Support, Main Top (rt) | 17 |
|
- | ||||
| 4 | 3807F454-51 | Support, Main Top (lt) | 17 |
|
- | ||||
| 5 | 3802F088-51 | Brace, Control Panel | 17 |
|
- | ||||
| 6 | W11233072 | Screw (Replaces: 7101P331-60) | 17 |
|
Immediately | $ 12.62 | |||
| 6 | 7703P396-60 | Panel, Control (white) | 17 |
|
- | ||||
| 7 | 7601P174-60 | Clock | 17 |
|
- | ||||
| 7 | 3807F437-45 | Support, Clock | 17 |
|
- | ||||
| 8 | 8004P032-60 | Support, Relay | 17 |
|
- | ||||
| 8 | 8004P035-60 | Support, Clock | 17 |
|
- | ||||
| 9 | 4876S036-59 | Panel, Control Assy | 17 |
|
- | ||||
| 9 | 74001019 | Tape | 17 |
|
- | ||||
| 10 | 7720P160-60 | Trim, Glass Retainer (wht) | 17 |
|
- | ||||
| 11 | 7424P001-60 | Display Board | 17 |
|
- | ||||
| 12 | WP7711P492-60 | Knob, Clock (wht) (Replaces: 7711P432-60) | 17 |
|
$ 12.13 | ||||
| 13 | 7428P011-60 | Relay Board | 17 |
|
- | ||||
| 13 | 8004P020-60 | Support, Relay Board | 17 |
|
- | ||||
| 14 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 17 |
|
Immediately | $ 12.62 | |||
| 14 | 3807F458-45 | Support, Relay Board | 17 |
|
- | ||||
| 15 | 3604F201-80 | Shield, Sight | 17 |
|
- | ||||
| 16 | 74008717 | Switch, Rocker (wht) (Replaces: 7403P310-60) | 17 |
|
$ 72.68 | ||||
| 17 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 17 |
|
Immediately | $ 12.62 | |||
| 17 | 7726P073-60 | End Cap (rt-wht) | 17 |
|
- | ||||
| 17 | 7726P074-60 | End Cap (lt-wht) | 17 |
|
- | ||||
| 17 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 17 |
|
$ 7.68 | ||||
| 18 | 3807F406-71 | Holder, Lamp (wht) | 17 |
|
- | ||||
| 19 | 7408P029-60 | Receptacle, Light (rt) | 17 |
|
- | ||||
| 19 | 7408P030-60 | Receptacle, Snap-in (lt) | 17 |
|
- | ||||
| 20 | 7415P001-60 | Starter | 17 |
|
- | ||||
| 21 | WP95292 | Light, Control Panel (Replaces: 7407P004-60) | 17 |
|
Immediately | $ 121.45 | |||
| 22 | 7724P059-60 | Cover, Light (wht)----na | 17 |
|
- | ||||
| 23 | 7408P007-60 | Receptacle, Lamp | 17 |
|
- | ||||
| NI | 5125A365-60 | Harness, Loose Wire | 17 |
|
- | ||||
| NI | 5140D040-60 | Harness, Relay To Transfer | 17 |
|
- | ||||
| NI | 5195D119-60 | Harness, Lock & Sensor | 17 |
|
- | ||||
| NI | 8113P009-60 | Manual, Use & Care | 17 |
|
- | ||||
| NI | 16002079 | Guide, Quick Ref - Admiral | 17 |
|
- | ||||
| NI | 8112P108-60 | Manual, Use & Care | 17 |
|
- |
